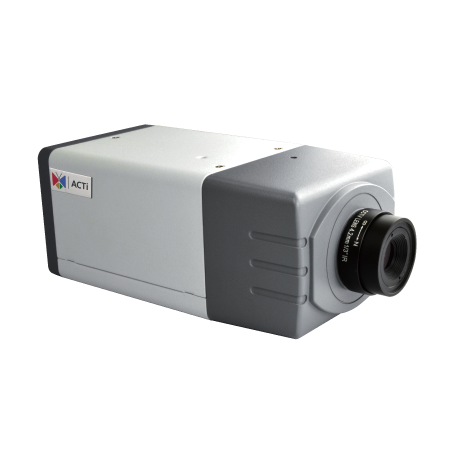

ACTi D21F 1MP HD Day/Night IP Box Camera, 4.2mm
SKU
D21F
Model No
D21F
$208.80
Product Highlights
- 1 Megapixel with 720p
- Day & Night
- Fixed Lens with f4.2mm/ F1.8
- 30 fps at 1280 x 720
Speak to an expert
The ACTi D21 1MP Day/Night Box Camera features a bundled 4.2mm fixed lens and a progressive scan CMOS image sensor to capture clear and crisp images at a resolution of up to 1280 x 720 at 30 fps.
Features
- 1 Megapixel with 720p
- Day & Night
- Fixed Lens with f4.2mm/ F1.8
- 30 fps at 1280 x 720
SKU  | D21F |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.2mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 67.05 mm x 65.02 mm x 145.13mm (2.6" x 2.6" x 5.7") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/4" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 2.436W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP66 |
| Angle of View | Horizontal - 53.8° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
D21F-Specsheet D21F-Manual D21F-Quick-Installation-Guide
