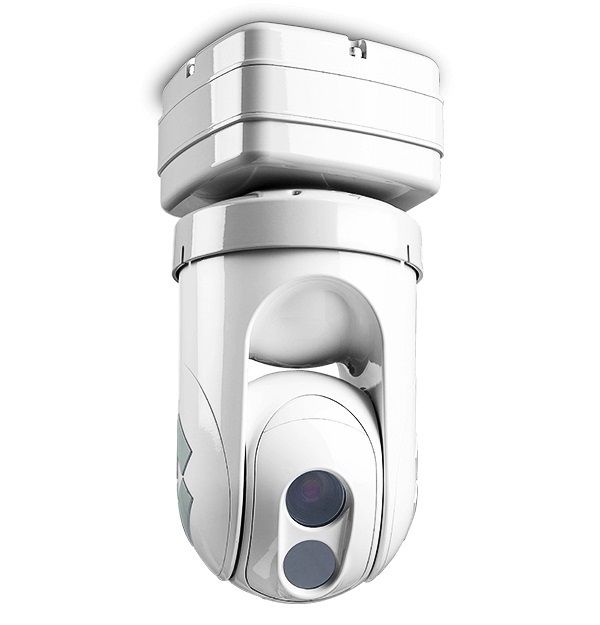

Flir D-645-BD-N 640 X 480 Outdoor Ball Up Network Thermal Camera, 13mm Lens, NTSC
SKU
D-645-BD-N
Model No
427-9030-11-00
$25,880.40
Product Highlights
- Field of View (FOV) options between 13° and 48°
- High-quality 24/7 thermal video security coverage
- Pan/Tilt speeds up to 60° /second
- A rugged dome enclosure offers protection to key components in harsh weather
- Day/night 36 X zoom color CCD video camera
Speak to an expert
The D-645-BD-N from Flir is a 640 x 480 outdoor ball up network thermal camera, 13mm lens, NTSC. The compact Triton™ D-Series thermal security camera reveals intruders and other security threats in complete darkness and inclement weather using a discrete dome-style enclosure. The camera offers precise pan/tilt control and fully-programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality via IP standards. The result is clear 24/7 imaging capability.
Flir D-645-BD-N Camera Features
- Longer Thermal Ranges: Featuring a 640 × 480 thermal resolution and multiple lens options, the D-Series performs over long distances.
- Focal Lengths: Focal lengths ranging from 9–35 mm enhance visibility at varying distances.
- Field of View: Field of View (FOV) options between 13° and 48° allow flexible monitoring of wide or narrow areas.
- Quality Coverage: High-quality 24/7 thermal video security coverage ensures constant protection.
- Open IP Standards: Open IP standards allow for plug-and-play integration and configuration in digital networks.
- Precision Pan/Tilt: Dynamic camera movement and a rugged housing stand up to elusive targets and difficult conditions.
- Comprehensive Coverage: 360° continuous pan and +45° to -180° tilt for uninterrupted coverage.
- Speedy Movement: Pan/Tilt speeds up to 60°/second ensure quick response to threats.
- Rugged Design: A rugged dome enclosure offers protection to key components in harsh weather.
- Visible Day/Night Capabilities: An onboard CCD video camera offers simultaneous visible light imaging in a wide variety of environmental conditions.
- High Zoom: Day/night 36× zoom color CCD video camera enhances detail visibility.
- Simultaneous Outputs: Simultaneous visible light and thermal video outputs ensure optimal imaging performance in diverse conditions.
- Auto DDE: Auto Digital Detail Enhancement (DDE) maintains image quality in challenging conditions.
Detailed Specifications for Flir D-645-BD-N
| Model | Flir D-645-BD-N |
| Thermal Resolution | 640 x 480 |
| Lens Options | 13mm |
| Video Output | NTSC |
| Focal Length | 9–35 mm |
| Field of View | 13° to 48° |
| Pan/Tilt Capability | 360° continuous pan, +45° to -180° tilt |
| Pan/Tilt Speed | Up to 60°/second |
| Operational Environment | Outdoor, all-weather |
| Zoom Capability | 36× zoom |
SKU  | D-645-BD-N |
|---|---|
| Features | Auto Gain Control, Day/Night, ONVIF, Weather Resistant |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 480 |
| Lens Type | Fixed |
| Lens Size | 13mm |
| Mount Type | Ceiling |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vDC, 24vAC |
| Dimensions (W x H) | 17” (h) × 8” (dia) |
| Image Device | 1/4” Exview HAD CCD |
| Image Pixels-Effective | 380000 |
| Operating Humidity | 0-95% |
| Operating Temperature | -25°C to 70°C |
| Power Consumption | Maximum power at 24 VAC = 85 VA, Maximum power at 24 VDC = 75 W |
| Protocols | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| Angle of View | 45° × 37° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| ONVIF | Yes |
