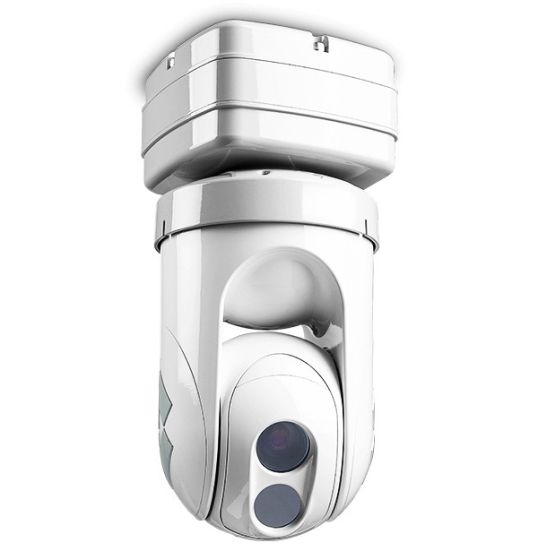

Flir D-625-BD-NS 640 X 480 Outdoor Ball Up Network Thermal Camera, 25mm Lens, 7.5HZ, NTSC
SKU
D-625-BD-NS
Model No
427-9030-13-00S
$26,028.60
Product Highlights
- Field of View (FOV) options between 13° and 48°
- High-quality 24/7 thermal video security coverage
- Pan/Tilt speeds up to 60° /second
- A rugged dome enclosure offers protection to key components in harsh weather
- Day/night 36 X zoom color CCD video camera
Speak to an expert
The D-625-BD-NS from Flir is a 640 x 480 outdoor ball up network thermal camera, 25mm lens, 7.5HZ, NTSC. The compact Triton™ D-Series thermal security camera reveals intruders and other security threats in complete darkness and inclement weather using a discrete dome-style enclosure. The camera offers precise pan/tilt control and fully-programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality via IP standards. The result is clear 24/7 imaging capability.
Flir D-625-BD-NS Camera Features
Longer Thermal Ranges: Featuring a 640 × 480 thermal resolution and multiple lens options, the D-Series performs over long distances.
- Focal Lengths: Ranging from 9–35 mm for flexible configurations and enhanced detection capabilities.
- Field of View (FOV): Options between 13° and 48° provide tailored surveillance coverage suited to specific environments.
- 24/7 Thermal Video Security: High-quality imaging ensures security is not compromised at any time.
- Open IP Standards: Allow for easy plug-and-play integration and configuration into existing digital networks.
Precision Pan/Tilt: Dynamic camera movement and rugged housing stand up to elusive targets and difficult conditions.
- 360° Continuous Pan: Offers uninterrupted coverage for comprehensive surveillance.
- Pan/Tilt Speeds: Up to 60°/second for swift tracking of moving objects.
- Rugged Dome Enclosure: Provides protection for key components against harsh environmental conditions.
Visible Day/Night Camera: An onboard CCD video camera offers simultaneous visible light imaging in a wide variety of environmental conditions.
- Day/Night 36× Zoom: Color CCD video camera captures detailed images at all times.
- Simultaneous Video Outputs: Ensures optimal imaging performance in diverse conditions with thermal and visible light capabilities.
- Auto Digital Detail Enhancement (DDE): Maintains image quality even in challenging visibility scenarios.
Flir D-625-BD-NS Detailed Specifications
| Thermal Resolution | 640 x 480 |
| Lens Options | 25mm (with options from 9–35 mm) |
| Field of View | 13° to 48° |
| Pan/Tilt Capability | 360° continuous pan, +45° to -180° tilt |
| Pan/Tilt Speed | Up to 60°/second |
| Weather Resistance | A rugged dome enclosure |
| Day/Night Functionality | 36× zoom color CCD video camera |
| Video Outputs | Simultaneous thermal and visible light |
| Enhancement Technology | Auto Digital Detail Enhancement (DDE) |
SKU  | D-625-BD-NS |
|---|---|
| Features | Auto Gain Control, Day/Night, ONVIF, Weather Resistant |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 480 |
| Lens Type | Fixed |
| Lens Size | 25mm |
| Mount Type | Ceiling |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vDC, 24vAC |
| Dimensions (W x H) | 17” (h) × 8” (dia) |
| Image Device | 1/4” Exview HAD CCD |
| Image Pixels-Effective | 380000 |
| Operating Humidity | 0-95% |
| Operating Temperature | -25°C to 70°C |
| Power Consumption | Maximum power at 24 VAC = 85 VA, Maximum power at 24 VDC = 75 W |
| Protocols | IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| Angle of View | 25° × 20° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| ONVIF | Yes |
