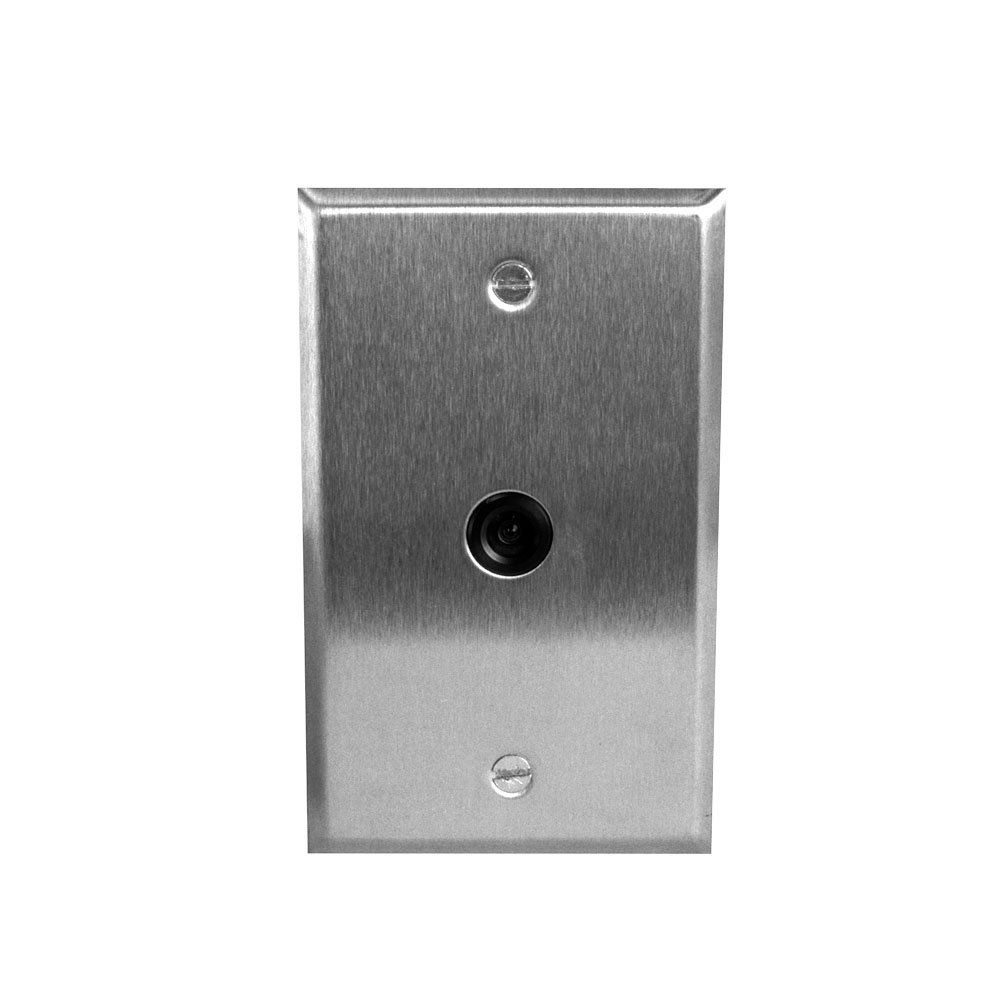

Speco CVC675T 1080p HD-TVI Covert Indoor Camera, 3.6mm Lens
SKU
CVC675T
Model No
CVC675T
$162.15
Product Highlights
- Fits into a single gang electrical box (included)
- Brushed stainless steel faceplate
- Full HD 1080p @ 30fps
- Additional 960H analog output
- 12VDC operation
Speak to an expert
Speco CVC675T 1080p HD-TVI Covert Indoor Camera Features
The CVC675T from Speco is a 1080p HD-TVI Covert Camera designed with a 3.6mm lens, ensuring high-resolution video capture in a discreet form factor perfect for indoor surveillance.
Features
- Compact Design: Fits into a single gang electrical box (included) for easy installation and minimal visibility.
- Stylish Aesthetic: Brushed stainless steel faceplate that enhances any indoor setting while ensuring durability.
- High-Quality Video: Full HD 1080p resolution at 30 frames per second provides clear and detailed video footage.
- Versatile Output: Additional 960H analog output allows compatibility with various recording devices.
- Reliable Power: 12VDC operation ensures consistent performance and ease of integration into existing systems.
Speco CVC675T Detailed Camera Specifications
| Resolution | 1080p |
| Lens Size | 3.6mm |
| Frame Rate | 30fps |
| Output Types | HD-TVI and 960H analog |
| Power Requirements | 12VDC |
| Material | Brushed stainless steel |
| Dimensions | Compact for single gang box |
SKU  | CVC675T |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto: 1/30 sec. ‒ 1/30,000 sec |
| Image Device | 1/3” Progressive scan CMOS, 2MP |
| Image Pixels-Effective | 1984 (H) x 1105 (V) |
| Operating Humidity | 90% RH |
| Operating Temperature | 14° F ‒ 122° F |
| Dimensions (W x H) | 2.75” (W) x 4.25” (H) x 2.75” (L) |
| Power Consumption | 200mA |
| S/N Ratio | Greater than 50dB |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p / 75 ohms |
| Angle of View | Horizontal: 72° / Vertical: 53° |
| Auto Gain Control | Yes |
