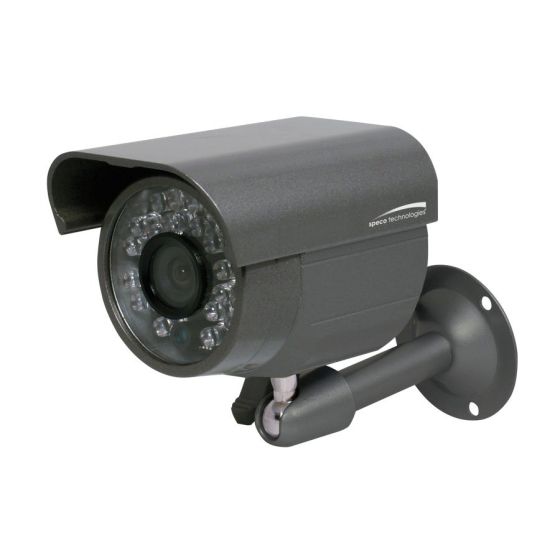

Speco CVC617T 1080p HD-TVI Outdoor IR Bullet Camera, 3.6mm Lens, Dark Grey Housing
SKU
CVC617T
Model No
CVC617T
$113.64
Product Highlights
- Full HD resolution over coax (HD-TVI)
- IR Range: 65' (depending on scene reflection)
- IP66 compliant, weather resistant
- Mounting bracket included
- Additional analog output for 960H
Speak to an expert
The CVC617T from Speco is a 1080p HD-TVI Outdoor IR Bullet Camera, designed for high-performance surveillance with its 3.6mm lens and stylish dark grey housing. This camera offers crisp resolution, excellent night vision, and is built to withstand harsh weather conditions, making it an ideal choice for securing your property.
Speco CVC617T Camera Features
- Full HD resolution over coax (HD-TVI): Provides clear and detailed video quality, ensuring you don't miss any important details.
- IR Range: 65’ (depending on scene reflection): Superior night vision capabilities allow for 24/7 monitoring, even in low light conditions.
- IP66 compliant, weather resistant: Built to endure extreme weather, giving you peace of mind for outdoor use year-round.
- Mounting bracket included: Easy installation process, allowing for quick setup and secure placement of the camera.
- Additional analog output for 960H: Provides flexibility in connecting to various systems and enhances compatibility with older technologies.
- Full OSD operation via UTC (TVI): User-friendly settings adjustment, enabling customization of camera features for optimal performance.
- 12VDC operation: Standard power requirements, simplifying installation and ensuring efficient energy use.
Detailed Specifications for Speco CVC617T
| Feature | Details |
|---|---|
| Resolution | 1080p HD-TVI |
| Lens | 3.6mm |
| Color | Dark Grey Housing |
| IR Range | Up to 65 feet (varies by scene) |
| Weather Resistance | IP66 Rated |
| Power Supply | 12VDC |
| Analog Output | 960H support |
| Installation Accessories | Mounting bracket included |
| Operating Temperature | -40°C to 60°C |
SKU  | CVC617T |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, On Screen Display Menu, Weather Resistant |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 sec. ‒ 1/100,000 sec. |
| Image Device | 1/3” Progressive Scan CMOS, 2MP |
| Image Pixels Total | 2000 (H) x 1121 (V) |
| Image Pixels-Effective | 1984 (H) x 1105 (V) |
| IR Distance | 19.81m/65ft |
| Minimum Scene Illumination | 0.00 lux (IR LED on) |
| Operating Temperature | 14° F ‒ 120° F |
| Dimensions (W x H) | 2.36” (Dia.) x 3.36” (L) |
| Power Consumption | 120mA (IR LED off), 350mA (IR LED on) |
| S/N Ratio | 50dB |
| Scanning System | 2:1 interlaced |
| Video Output | 1.0Vp-p, 75 ohms |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Backlight Compensation | Automatic |
| Auto Gain Control | Automatic |
| IR LEDs | 24 LEDs |
| Back Light Compensation | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
