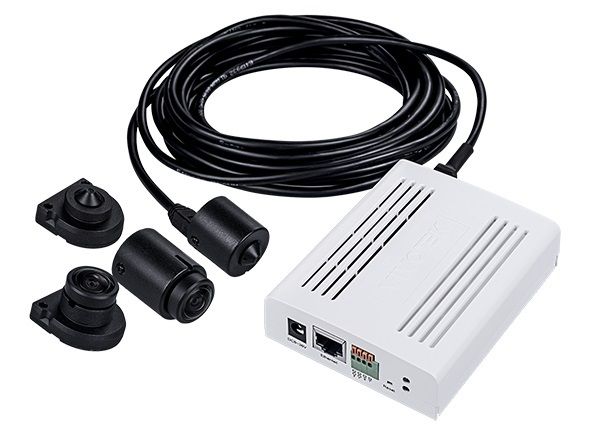

Vivotek CU9183-HF 5 Megapixel Network Indoor Mini Board Camera with 1.22mm Lens
SKU
CU9183-HF
Model No
CU9183-HF
$282.50
Product Highlights
- Discreet, Recessed-Mount Camera Units
- Supports 1 Camera Unit
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Face Check - Smart Motion Detection
- Video Rotation for Corridor View
Speak to an expert
VIVOTEK’s CU9183-HF is a high-performance split-type camera system designed for discreet indoor surveillance. This 5-megapixel mini board camera offers exceptional flexibility for installation in tight spaces, making it perfect for covert monitoring in ATMs, banks, stores, and offices. With features like CNN hardware acceleration for efficient deep learning capabilities and advanced security measures, the CU9183-HF is not only powerful but also enhances safety and efficiency in surveillance.
VIVOTEK CU9183-HF Camera Features
- Discreet, Recessed-Mount Camera Units: Allows for hidden installation, ensuring unobtrusive surveillance.
- Supports 1 Camera Unit: Adaptable to various setups, providing flexibility according to specific surveillance needs.
- WDR Pro (120 dB): Improves visibility in high contrast scenes, ensuring clear footage in challenging lighting conditions.
- Face Check - Smart Motion Detection: Enhances security by accurately detecting faces in monitored areas.
- Video Rotation for Corridor View: Offers versatile viewing options, ideal for narrow spaces.
- Trend Micro IoT Security: Protects against cybersecurity threats, ensuring the safety of transmitted data.
Detailed Specifications for VIVOTEK CU9183-HF
| Camera Type | 5 Megapixel Network Indoor Mini Board Camera |
| Lens | 1.22mm |
| Cable Length | 5 meters |
| WDR | Pro (120 dB) |
| Smart Features | Deep learning based face detection, CNN hardware accelerator |
| Security Features | Secure boot, signed firmware, Trend Micro cybersecurity |
| Application | Indoor and covert surveillance |
SKU  | CU9183-HF |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.22mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 33 x 32 x 20 mm (Without cable |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.7" Progressive CMOS |
| Minimum Scene Illumination | 0.035 lux @ F2.0 (Color) |
| Operating Humidity | 90% RH (non-condensing) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | Max. 8.5 W |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| S/N Ratio | 56.3 dB |
| Digital Noise Reduction | 3DNR |
| Angle of View | 180° (Horizontal), 100° (Vertical), 180° (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection, face detection, time filter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
