Cantek Plus CTP-TVA29AB-W HD-TVI, EX-SDI, HD-SDI 1080p Outdoor IR Bullet Camera, 2.8-12mm Lens, White
SKU
CTP-TVA29AB-W
Model No
CTP-TVA29AB-W
$183.26
Product Highlights
- Dual HD Video Output
- Both EX-SDI/HD-SDI and HD-TVI output provide
- Full HD @ 30fps Real-time Video Simultaneously
- Optional IDP™Isolation Dual Power
- Heater & Thermostat Module
Speak to an expert

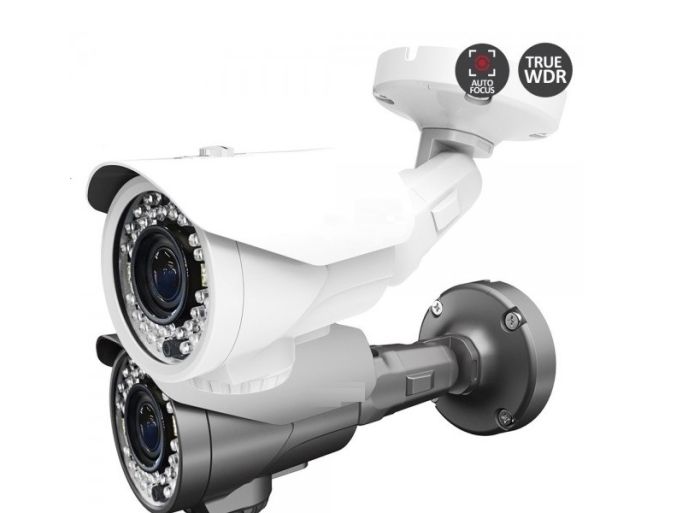

The CTP-TVA29AB-W from Cantek Plus is a 1080P HD IR bullet camera (White) featuring EX-SDI/HD-SDI and HD-TVI dual HD video output, a 2.8-12mm varifocal lens, and Full HD recording at 30fps in real-time. Designed for outdoor use, it combines advanced features to ensure high-quality surveillance in various environments.
Cantek Plus CTP-TVA29AB-W Camera Features
- Dual HD Video Output: Both EX-SDI/HD-SDI and HD-TVI output provide versatile connectivity options for different surveillance systems.
- Full HD @ 30fps Real-time Video: Captures high-resolution video simultaneously for clear and accurate monitoring.
- Optional IDP™ Isolation Dual Power: Offers flexible power supply options to ensure reliable operation in varied installation scenarios.
- Heater & Thermostat Module: Designed to perform reliably in extreme temperatures, enhancing durability in outdoor settings.
- Patent Design 5-Axis Bracket: Provides easy and stable installation while allowing for flexible adjustment to capture the desired view.
Detailed Camera Specifications for Cantek Plus CTP-TVA29AB-W
| Feature | Details |
|---|---|
| Model | CTP-TVA29AB-W |
| Video Output | EX-SDI, HD-SDI, HD-TVI |
| Resolution | 1080p |
| Lens Type | 2.8-12mm Varifocal |
| Frame Rate | Full HD @ 30fps |
| IR Capability | Yes |
| Operating Temperature | Extensive Temperature Range |
| Mounting Type | 5-Axis Bracket |
SKU  | CTP-TVA29AB-W |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Cantek Plus |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | NTSC: AUTO (1/30-1/60,000) , PAL: AUTO (1/25-1/60,000) FLK |
| Gamma Correction | 0.45 / 0.5 / 0.55 / 0.6 / 0.65 |
| Image Device | 1/2.9" 2.4MEGAPIXEL SONY EXMOR CMOS |
| Image Pixels-Effective | 1920 (H) × 1080 (V) = 2.4M |
| IR Distance | 54.86m/180ft |
| Minimum Scene Illumination | 0.02Lux (SENS-UP X32) |
| Operating Humidity | MAX 90% RH |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| OSD Menu | ENG / CHN / CHN[S] / JPN / KOR |
| Power Consumption | DC IR OFF : 210mA (MAX) / DC IR ON : 650mA (MAX), AC IR OFF : 200mA (MAX) / AC IR ON : 550mA (MAX) |
| Privacy Zone | ON / OFF (PROGRAMMABLE 16 ZONES) |
| S/N Ratio | More Than 52db |
| Scanning System | PROGRESSIVE |
| Signal System | NTSC/PAL |
| Video Output | HD-TVI, EX-SDI/HD-SDI, CVBS (OSD SELECTABLE) |
| Synchronization | INTERNAL |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Backlight Compensation | OFF / HLC / BLC / WDR |
| Automatic White Balance | AUTO / AUTODEXT / PRESET / MANUAL |
| Auto Gain Control | Level (0-20) Adjustment |
| IR LEDs | 48 |
| Motion Detection | 4 AREA |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
