Cantek CT-NCA12-FEA 12 Megapixel Fisheye Network Camera, 1.98mm
- 1/1.7†Progressive Scan CMOS
- 12.4 MP effective sensor
- Up to 4000 × 3072 resolution
- BLC,AGC,ATW,WDR,Flickerless
- Line crossing and intrusion detection

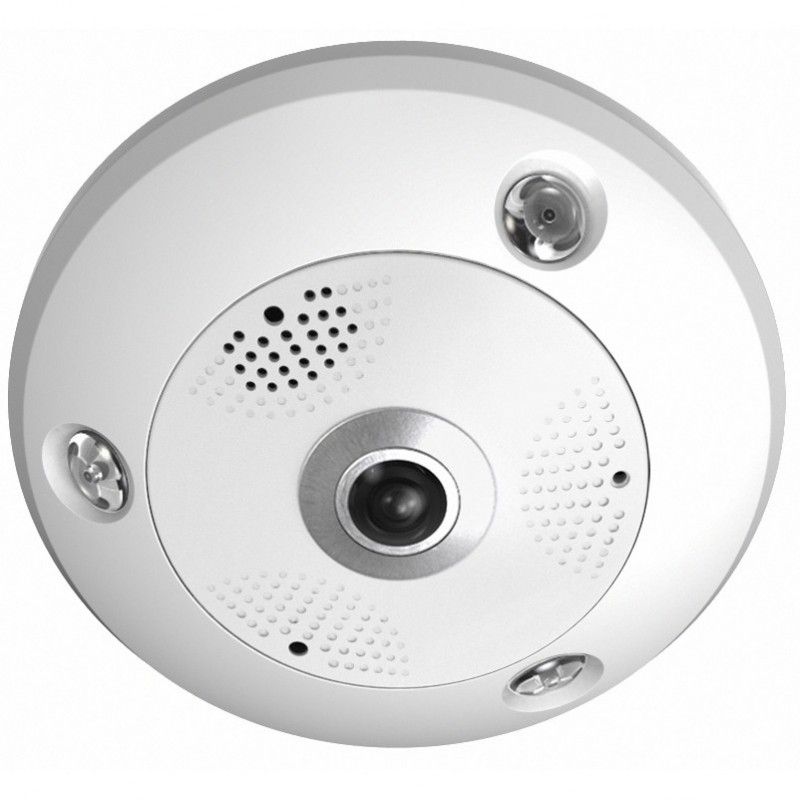

The CT-NCA12-FEA from Cantek is a 12MP IR Fisheye Network Camera supports several viewing modes, including the 360° view, a horizontal panoramic view, PTZ quad view modes. Customers can also utilize this smooth PTZ function to easily pan, tilt and zoom, on any region of interest (ROI). It is a great choice for detailed coverage of wide, open areas like airports, shopping malls, parking lots, retail stores, offices, restaurants, classrooms, and more. NCA12-FEA is designed to single-handedly capture images from every corner of a particular location and eliminate blind sports. It features a progressive scan CMOS sensor to provide high-resolution images of up to 4000×3072, and a fisheye lens for a 360 panoramic or multiple de-warped views. Furthermore, IR functionality provides up to 15m IR distance of visibility under low or even zero-light conditions.
Features
- 1/1.7” Progressive Scan CMOS
- 12.4 MP effective sensor
- Up to 4000 × 3072 resolution
- BLC,AGC,ATW,WDR,Flickerless
- Line crossing and intrusion detection
- OSD 16 characters
- Up to 15m IR range
- 360° view angle
- Built-in microphone & speaker
SKU  | CT-NCA12-FEA |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Cantek |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.98mm |
| Mount Type | Ceiling, Wall |
| Compression Method | M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 164x152.8x43.8mm(6.46”x6.02”x1.72”) |
| Electronic Shutter | 1/25(1/30)s ~ 1/100,000s |
| Image Device | 1/1.7’’ Progressive Scan CMOS |
| Minimum Scene Illumination | 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | 30 °C – 60 °C (-22 °F – 140 °F) |
| Power Consumption | Max. 14.7W ( up to 12W IR off ) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP ONVIF(PROFILE S,PROFILE G), PSIA, CGI, ISAPI |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 360° |
| IR Distance | 15m/49.21ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
