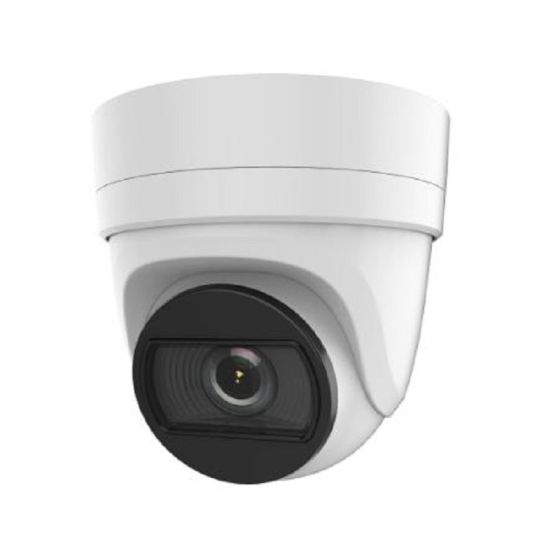

Cantek CT-NC326-XDZ 6 Megapixel IR VF Turret Network Camera with 2.8-12mm Lens

SKU
CT-NC326-XDZ
Model No
CT-NC326-XDZ
$532.39
Qty:
Product Highlights
    • 1/2.9" Progressive Scan CMOS
    • 3072 × 2048@20 fps
    • 2.8 to 12 mm varifocal lens
    • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
    • H.265+, H.265, H.264+, H.264

The CT-NC326-XDZ from Cantek is a 6 megapixel IR VF turret network camera with 2.8-12mm lens.

Features

  • 1/2.9" Progressive Scan CMOS
  • 3072 × 2048@20 fps
  • 2.8 to 12 mm varifocal lens
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI
  • IP67, IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
SKU  CT-NC326-XDZ
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Cantek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    6 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Φ 135.8 mm × 145.5 mm (Φ 5.4" × 5.7")
Electronic Shutter    1/3 s to 1/100,000 s
Image Device    1/2.9" Progressive Scan CMOS
IR Wavelength  850nm
Minimum Scene Illumination  Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Operating Humidity    Humidity 95% or less (non-condensing)
Operating Temperature    ‐30 °C to +60 °C (‐22 °F to +140 °F)
Power Consumption  12 VDC, 1 A, max. 11 W, PoE (802.3af, 36V to 57V), 0.4 A to 0.3 A, max. 12.5 W
Protocols  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    Horizontal field of view: 88° to 27°, Vertical field of view: 56° to 18°, Diagonal field of view: 110° to 33°
Rotation Angle0° to 355°
IR Distance  30m/98.42ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
