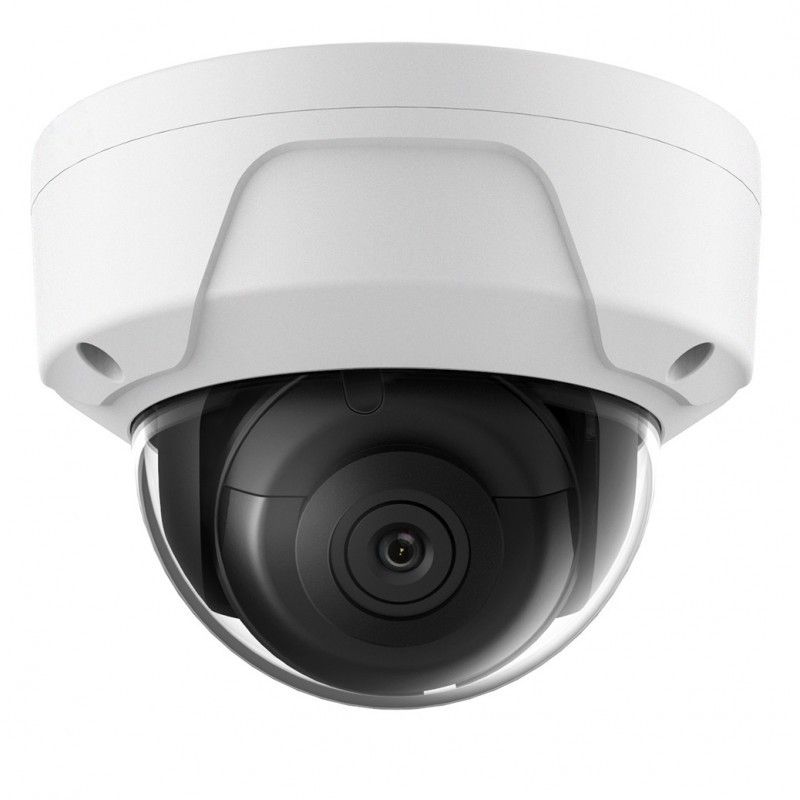

Cantek CT-NC324-TDA-4mm 4 Megapixel IR Fixed Dome Network Camera with 4mm Lens

SKU
CT-NC324-TDA-4mm
Model No
CT-NC324-TDA-4mm
$211.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Progressive Scan CMOS
  • 2560 × 1440@30fps
  • 4mm fixed lens
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264

The CT-NC324-TDA-4mm from Cantek is a cutting-edge 4 megapixel IR fixed dome network camera featuring a 4mm lens designed to deliver high-quality surveillance. With its advanced imaging capabilities and robust design, this camera ensures excellent performance and adaptability for a variety of security needs.

Cantek CT-NC324-TDA-4mm Camera Features

  • Sensor: 1/3" Progressive Scan CMOS - Ensures high-quality images with enhanced clarity and detail.
  • Resolution: 2560 × 1440@30fps - Captures smooth video at high resolution for better monitoring.
  • Lens: 4mm fixed lens - Provides a wide field of view ideal for expansive areas.
  • Low Light Performance: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR - Excellent visibility in dark conditions, ensuring 24/7 monitoring.
  • Compression Formats: H.265+, H.265, H.264+, H.264 - Reduces bandwidth usage and preserves storage space without compromising image quality.
  • Stream Capability: Three streams - Facilitates flexible viewing options and simultaneous access for multiple users.
  • Wide Dynamic Range: 120dB WDR - Balances contrasting light levels for optimal detail in both bright and dark areas.
  • Intelligent Analytics: 2 Behavior analyses, and face detection - Enhances security through smart analytics that can detect unusual activity.
  • Enhanced Image Quality: BLC/3D DNR/ROI - Improved image quality through advanced processing techniques.
  • Durability: IP67, IK10 - Weather and vandal-resistant, suitable for outdoor installation.
  • Storage Options: Built-in micro SD/SDHC/SDXC card slot, up to 128 GB - Provides local storage for seamless recording.
  • Adjustability: 3-Axis adjustment - Allows for precise camera positioning to capture desired angles.

Cantek CT-NC324-TDA-4mm Detailed Specifications

FeatureDetails
Sensor1/3" Progressive Scan CMOS
Resolution2560 × 1440@30fps
Lens Type4mm fixed lens
Color Sensitivity0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Compression FormatsH.265+, H.265, H.264+, H.264
Stream CountThree streams
Wide Dynamic Range120dB WDR
Analytics2 Behavior analyses, face detection
Image EnhancementBLC/3D DNR/ROI
Ingress ProtectionIP67
Impact ResistanceIK10
Storage CapacityBuilt-in micro SD/SDHC/SDXC, up to 128 GB
Camera Adjustment3-Axis adjustment
SKU  CT-NC324-TDA-4mm
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Cantek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    4mm
Mount Type  Ceiling, Wall
Compression Method    H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2"), Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Electronic Shutter    1/3 s to 1/100,000 s
Image Device    1/3" Progressive Scan CMOS
IR Wavelength  850nm
Minimum Scene Illumination  Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Operating Humidity    Humidity 95% or less (non-condensing)
Operating Temperature    ‐30 °C to +60 °C (‐22 °F to +140 °F)
Power Consumption  12 VDC, 0.5A, max. 6W, PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protocols  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Weatherproof    IP67
Digital Noise Reduction    3D DNR
Angle of View    4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Rotation Angle0° to 355°
IR Distance  30m/98.42ft
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
