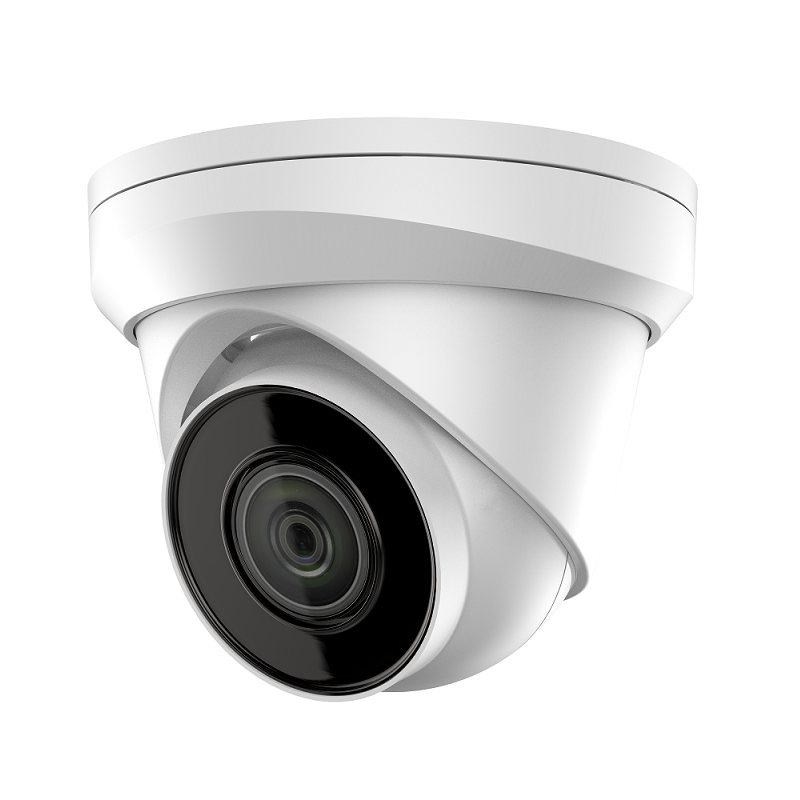

Cantek CT-NC224-XDU-2-8mm 4 Megapixel Fixed Turret Network Camera with 2.8mm Lens
SKU
CT-NC224-XDU-2-8mm
Model No
CT-NC224-XDU-2-8mm
$143.00
Product Highlights
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
Speak to an expert
The Cantek CT-NC224-XDU-2-8mm is a state-of-the-art 4 Megapixel Fixed Turret Network Camera designed for high-quality surveillance. With advanced features like H.265+ video compression, 120 dB WDR for superb clarity, and robust IP67 weather resistance, this camera ensures reliable performance in any environment. It also includes EXIR 2.0 technology for enhanced infrared capabilities, a built-in microphone for audio monitoring, and substantial SD card storage support for comprehensive security solutions.
Cantek CT-NC224-XDU-2-8mm Camera Features
- High Resolution: 4 MP imaging ensures that every detail is captured for clear surveillance footage.
- Advanced Compression: H.265+ technology significantly reduces bandwidth and storage use while maintaining high video quality.
- Superior Performance: 120 dB Wide Dynamic Range (WDR) allows for clear imaging in challenging lighting conditions.
- Durability: IP67 rating guarantees that the camera is both water and dust resistant, making it suitable for various environments.
- Enhanced Night Vision: EXIR 2.0 technology provides long-range infrared visibility, ensuring clear images even in complete darkness.
- Audio Monitoring: A built-in microphone delivers real-time audio security, complementing the video feed.
- Generous Storage: Supports up to 256 GB SD card storage for extensive video recording needs.
Cantek CT-NC224-XDU-2-8mm Detailed Specifications
| Camera Type | Fixed Turret Network Camera |
| Resolution | 4 Megapixels |
| Lens | 2.8mm |
| Video Compression | H.265+ |
| Wide Dynamic Range | 120 dB |
| Ingress Protection | IP67 |
| Infrared Technology | EXIR 2.0 |
| Microphone | Built-in |
| Storage Support | Up to 256 GB SD card |
SKU  | CT-NC224-XDU-2-8mm |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Cantek |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø110 mm × 85.3 mm (Ø 4.3" × 3.4") |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/3" progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12VDC, 0.4A, max.5W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| IR Distance | 30m/98.43ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
