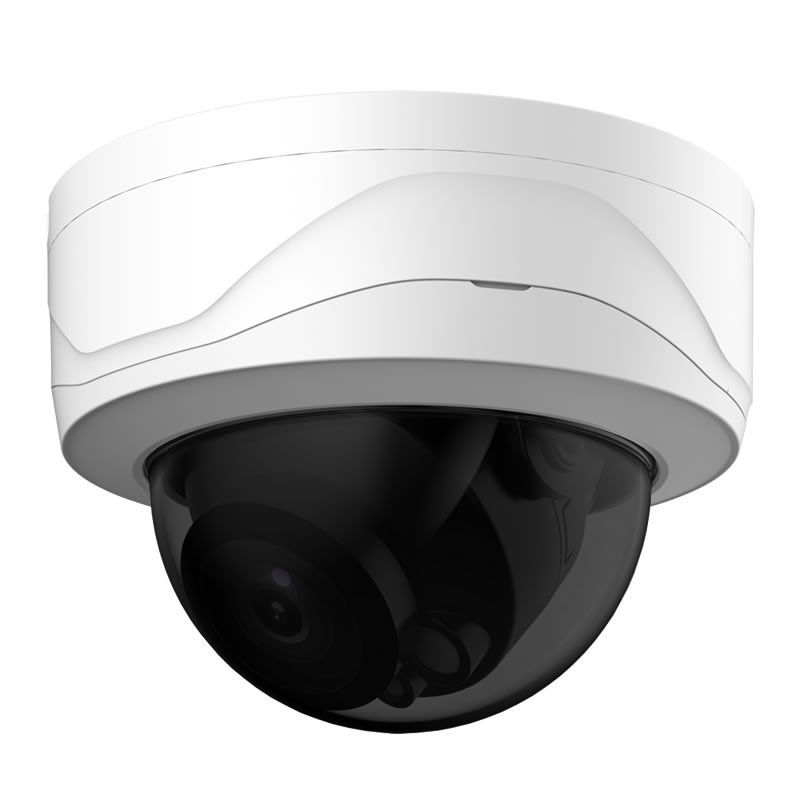

Cantek CT-IPC-MD464E-IR-2-8 6 Megapixel IR Mini Dome Network Camera with 2.8mm Lens
SKU
CT-IPC-MD464E-IR-2-8
Model No
CT-IPC-MD464E-IR-2-8
$240.67
Product Highlights
- 1/2.9" 6Megapixel progressive scan STARVISTM CMOS
- H.265&H.264 triple-stream encoding
- 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520)
- Smart Detection supported
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Speak to an expert
The CT-IPC-MD464E-IR-2-8 from Cantek is a state-of-the-art 6 megapixel IR mini dome network camera equipped with a 2.8mm lens. Remarkable for its upgraded H.265 encoding technology, this camera provides high-efficiency video compression that saves both bandwidth and storage, making it ideal for modern surveillance needs. It also boasts starlight technology, intelligent image analysis, and is fully protected against dust and water with an IP67 rating, while also being vandal resistant to IK10 standards.
Cantek CT-IPC-MD464E-IR-2-8 Camera Features
- High Resolution: 6 Megapixel progressive scan STARVISTM CMOS for clear and detailed image capture.
- Advanced Encoding: H.265&H.264 triple-stream encoding supports efficient storage and bandwidth usage.
- High Frame Rate: 20fps at 6MP resolution and 25/30fps at 4MP, ensuring smooth video playback.
- Smart Detection: Includes features for enhanced surveillance through intelligent detection capabilities.
- Wide Dynamic Range: WDR (120dB) helps to capture clear images in challenging lighting conditions.
- Comprehensive Monitoring: Multiple network monitoring options available including web viewer and CMS for easy management.
- Compact Lens: 2.8mm fixed lens ideal for various installation environments.
- Alarm and Audio Support: Features 1/1 alarm in/out and audio in/out for integrated security solutions.
- Effective IR Illumination: Max IR LEDs Length of 30m provides excellent night vision capabilities.
- Rugged Design: Certified to IP67 for dust/water resistance and IK10 for vandal resistance ensuring durability in harsh conditions.
Cantek CT-IPC-MD464E-IR-2-8 Detailed Specifications
| Camera Sensor | 1/2.9" 6 Megapixel STARVISTM CMOS |
| Encoding Format | H.265 & H.264 triple-stream |
| Resolution | 3072x2048 at 20fps; 2688x1520 at 25/30fps |
| Smart Features | Smart Detection, WDR (120dB), 3DNR |
| Monitoring Options | Web viewer, CMS (DSS/PSS), DMSS |
| Lens Type | 2.8mm fixed lens |
| Alarm/Auditory Interfaces | 1/1 Alarm in/out, 1/1 Audio in/out |
| IR Distance | Up to 30m with IR LEDs |
| Storage Support | Micro SD memory |
| Protection Ratings | IP67 dust/water resistant, IK10 vandal resistant |
| Power Supply | Power over Ethernet (PoE) |
SKU  | CT-IPC-MD464E-IR-2-8 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Cantek |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto/Manual |
| Dimensions (W x H) | Φ109.9mm×81mm (4.33”×3.19”) |
| Electronic Shutter | Auto/Manual, 1/3(4)~1/100000s |
| Image Device | 1/2.9” 6Megapixel progressive scan CMOS |
| Image Pixels-Effective | 3072(H) x 2048(V) |
| IR LEDs | 18 |
| Minimum Scene Illumination | 0.04Lux/F1.6 ( Color, 1/3s, 30IRE), 0.4Lux/F1.6 ( Color, 1/30s, 30IRE), 0Lux/F1.6 (IR on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -40° C ~ +60° C (-40° F ~ +140° F) |
| Power Consumption | <5.2W |
| Privacy Zone | Off / On (4 Area, Rectangle) |
| Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| S/N Ratio | More than 50dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off / On |
| Angle of View | H: 98° (69°), V: 67° (48°) |
| Rotation Angle | 0˚~355˚ |
| Motion Detection Tracking | Off / On (4 Zone, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Automatic White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
