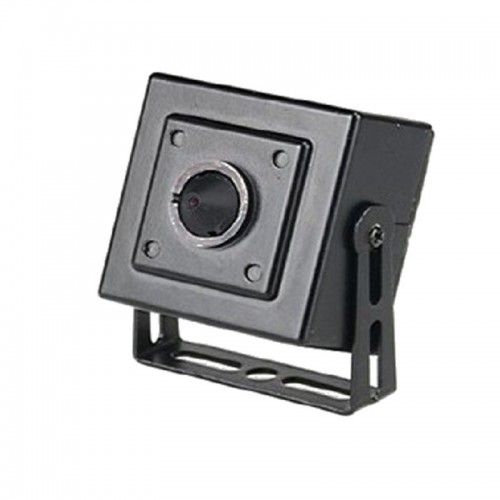

Cantek CT-HDC-PH-2M-3.7 1080P Pin Hole Camera, 3.7mm
SKU
CT-HDC-PH-2M-3.7
Model No
CT-HDC-PH-2M-3.7
$67.20
Product Highlights
- 1/2.8" 2.4 Megapixel CMOS
- 1080P@25, 1080P@30
- Long Distance, No delay
- Support ICR auto switch
- Support AHD/ CVI/ TVI/ Analog transfer
Speak to an expert
The CT-HDC-PH-2M-3.7 from Cantek is a 1080P Pin Hole Camera, 3.7mm designed for discreet surveillance without compromising on quality. With advanced imaging capabilities and versatile compatibility options, this camera ensures optimal performance for security needs.
Cantek CT-HDC-PH-2M-3.7 Camera Features
- 1/2.8" 2.4 Megapixel CMOS: Delivers high-resolution images for clear surveillance footage.
- 1080P@25, 1080P@30: Provides smooth video recording at standard frame rates for realistic image capture.
- Long Distance, No delay: Ensures immediate transmission of video feed over long distances, enhancing reliability.
- Support ICR auto switch: Automatically switches between day and night mode for optimal performance in varying light conditions.
- Support AHD/ CVI/ TVI/ Analog transfer: Compatible with multiple video formats for flexibility in installation and use.
Detailed Specifications for Cantek CT-HDC-PH-2M-3.7
| Camera Type | Pin Hole Camera |
| Resolution | 1080P |
| Sensor Type | 1/2.8" 2.4 Megapixel CMOS |
| Lens Size | 3.7mm |
| Video Output | AHD, CVI, TVI, Analog |
| Frame Rate | 25/30 fps |
| Auto Switch | ICR Day/Night |
| Transmission Distance | Long Distance |
SKU  | CT-HDC-PH-2M-3.7 |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant |
| Manufacturer | Cantek |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | PAL:1/50s~1/100,000s, NTSC:1/50s~1/100,000s |
| Image Device | 1/2.8" 2.4 Megapixel CMOS |
| Image Pixels-Effective | 1920(H)×1080(V) |
| Minimum Scene Illumination | [email protected], (0Lux IR on) |
| Operating Temperature | -10°C~+50°C |
| Power Consumption | 100mA |
| Signal System | NTSC , PAL |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Digital Noise Reduction | 3D DNR |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
