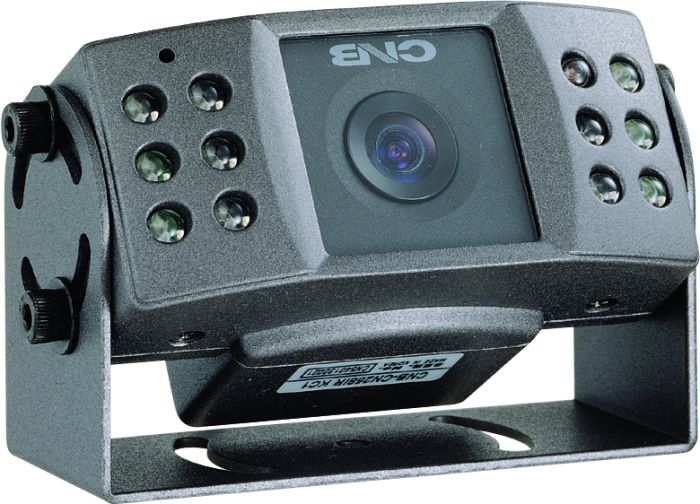

CNB CN258IR UC3 380 TVL Analog IR Indoor Automobile Camera, 2.5mm Lens, NTSC

SKU
CN258IR UC3
Model No
CN258IR UC3
$20.25
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" IT CCD
  • Normal Resolution : 380 TV Lines
  • Built-in Fixed Lens (f=2.5mm)
  • AWB, AGC
  • Mirror On/Off

The CN258IR UC3 from CNB is a high-performance 380 TVL analog IR indoor automobile camera featuring a 2.5mm lens and NTSC compatibility. Designed for reliability and clarity, this camera ensures that you capture high-quality images even in low light conditions, making it an excellent choice for automotive surveillance.

CNB CN258IR UC3 Camera Features

  • 1/3" IT CCD: This advanced image sensor provides excellent image quality and sensitivity for clearer visuals, enhancing monitoring capabilities in various lighting conditions.
  • Normal Resolution: 380 TV Lines ensures sharp and detailed images, helping to improve the accuracy of surveillance applications.
  • Built-in Fixed Lens: The 2.5mm lens offers a wide field of view, making it perfect for capturing broader scenes without the need for additional equipment.
  • AWB & AGC: Auto White Balance and Automatic Gain Control functions automatically adjust to environmental changes, ensuring optimal image quality in fluctuating light.
  • Mirror On/Off: The ability to toggle the mirror function allows flexibility in the camera's positioning without affecting the aspect of the captured image.
  • Built-in Audio Function: Integrated audio capture capabilities enhance surveillance effectiveness by providing sound along with the video feed.
  • Built-in IR LED and Sensor: Night vision ability ensures clear monitoring in total darkness, making it an ideal solution for comprehensive vehicle surveillance.

CNB CN258IR UC3 Detailed Specifications

Image Sensor1/3" IT CCD
Resolution380 TV Lines
Lens TypeFixed Lens (f=2.5mm)
FeaturesAWB, AGC, Mirror On/Off, Built-in Audio
IR CapabilityBuilt-in IR LED and Sensor
Video FormatNTSC
SKU  CN258IR UC3
Features  Auto Gain Control, Automatic White Balance, Mirror
Manufacturer  CNB
Camera Signal     Analog
Resolution    380 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    1/60~1/100,000sec
Image Device    1/3 inch IT CCD
Image Pixels Total537(H) x 505(V) 270K
Image Pixels-Effective510(H) x 492(V) 250K
IR Distance  10m/32.80ft
IR Wavelength  850nm
Dimensions (W x H)  95.2(W) x 55.4(H) x 47.7(D) mm
Power Consumption  Less than 150mA / 3W (Max.)
S/N Ratio  more than 48dB (AGC Off)
Scanning Horizontal  15.734kHz
Scanning System    2:1 Interlace
Scanning Vertical59.94 Hz
Signal System    NTSC
Video Output    1.0Vp-p (75Ω, composite)
Synchronization  Internal
Angle of View    145Ëš
Automatic White Balance    Auto
Auto Gain Control    Auto
IR LEDs  11
AudioYes
Automatic White Balance    Yes
Mirror    Yes
Auto Gain Control    Yes
