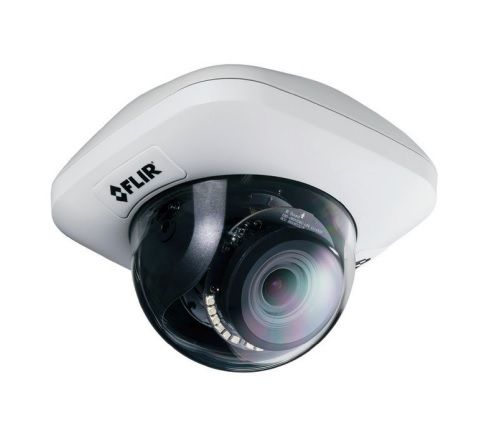

Flir CM-3304-2E-I 4 Megapixel Outdoor Network IR Mini-Dome Camera, 9-22mm Lens, E-TEMP
SKU
CM-3304-2E-I
Model No
CM-3304-2E-I
$650.00
Product Highlights
- Latest Sensor Technology
- True Day/Night Coverage
- Built-In Analytics
- Features include Quad HD resolution, Shutter Wide Dynamic Range, and H.264/H.265 compression
- Camera sensitivity equals 0.07 Lux (color), 0.01 Lux (BW), and 0 Lux with IR illumination
Speak to an expert
The CM-3304-2E-I from Flir is a 4 megapixel outdoor network IR mini-dome camera, 9-22mm lens, E-TEMP. The Ariel™ Quad HD Dome is ready for diverse motion and lighting conditions found in critical infrastructure and commercial locations. The camera includes Shutter Wide Dynamic Range, IR Illumination and H.264/H.265 compression. The Ariel Quad HD Dome reduces the total cost of ownership through network and storage savings. When controlled using FLIR’s United VMS, the camera also utilizes unique adaptive streaming technology, enhancing the overall viewing experience.
Flir CM-3304-2E-I Camera Features
- Latest Sensor Technology: Features include Quad HD resolution, Shutter Wide Dynamic Range, and H.264/H.265 compression, ensuring clear and detailed video quality in various conditions.
- True Day/Night Coverage: Camera sensitivity equals 0.07 Lux (color), 0.01 Lux (BW), and 0 Lux with IR illumination, providing excellent performance in low-light environments.
- Built-In Analytics: The camera offers a package of basic video analytics capabilities, including Border Line, Counting, Area Protection, Loitering, Object Dropped, and Object Removed, enhancing security and monitoring efficiency.
Detailed Camera Specifications for Flir CM-3304-2E-I
| Model | CM-3304-2E-I |
| Resolution | 4 Megapixels |
| Lens | 9-22mm |
| IR Illumination | Yes |
| Dynamic Range | Shutter Wide Dynamic Range |
| Video Compression | H.264/H.265 |
| Low-Light Sensitivity | 0.07 Lux (color), 0.01 Lux (BW), 0 Lux (IR) |
SKU  | CM-3304-2E-I |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Flir |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 9-22mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 138 × 104 mm (5.43 x 4.09 in.) |
| Electronic Shutter | 1/1.75 to 1/10,000 (auto) |
| Image Device | 1/2.9” BSI CMOS |
| IR Wavelength | 850 |
| Operating Humidity | 90% (non-condensing) |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Power Consumption | 8W / 12W with heater and IR |
| Protocols | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D |
| Angle of View | 15°-34° HFOV |
| Back Light Compensation | On / Off |
| Automatic White Balance | Auto / ATW / Manual / One Push |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
