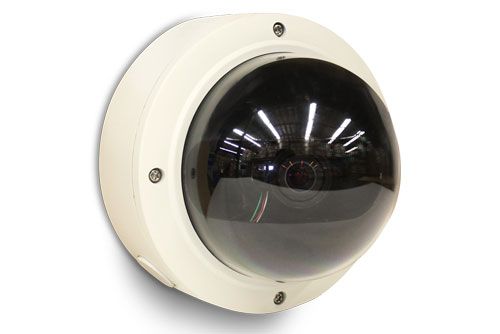

Orion CHDC-34DSDC HD-SDI Camera
SKU
CHDC-34DSDC
Model No
CHDC-34DSDC
$1,139.95
Product Highlights
- Built-In Varifocal 2.8mm ~ 10mm F1.2 Lens
- Not Compressed Transmission for No Signal Delay
- Video Transmission Up to 100M (RG6/U Coaxial Cable)
- NTSC / PAL Output (BNC Connector)
- Easy Installation by Coaxial Cable
Speak to an expert
The Orion CHDC-34DSDC HD-SDI Camera is engineered for high-definition video surveillance with support for both HD-SDI and 3G-SDI outputs, offering exceptional image quality with no signal delay. This camera features a versatile varifocal lens and supports various resolutions, making it perfect for diverse surveillance applications.
Orion CHDC-34DSDC Camera Features
- Built-In Varifocal Lens: 2.8mm to 10mm F1.2 lens allows for flexible focal range adjustments, ensuring optimal coverage and image quality in any environment.
- Multiple Resolutions Supported: Offers 1080p (60/50/30/25/59.94/29.97), 1080i (60/50/59.94), and 720p resolutions, providing versatility for different surveillance needs.
- HD-SDI & 3G-SDI Standards: Compliant with SMPTE 274M and 424M standards, ensuring reliable and high-quality transmission for high-definition video.
- Uncompressed Transmission: Guarantees no signal delay, allowing for real-time monitoring and immediate response to events.
- Extended Video Transmission: Supports transmission distances up to 100M using RG6/U coaxial cable, ideal for larger installations.
- Versatile Output Options: Features NTSC/PAL output via BNC connector for compatibility with various video systems.
- Simple Installation: Utilizes coaxial cable for straightforward setup, reducing installation complexity.
- Live Defect Detection: Manual defect detection and correction allows for up to 1024 issues to be identified, maintaining optimum image quality.
Orion CHDC-34DSDC Detailed Camera Specifications
| Camera Type | HD-SDI Camera |
| Resolution | Supports 1080p, 1080i, 720p |
| Data Rate | 1.485Gbit/s (HD-SDI), 2.97Gbit/s (3G-SDI) |
| Lens Type | Varifocal 2.8mm ~ 10mm F1.2 |
| Transmission Distance | Up to 100M |
| Output Type | NTSC/PAL (BNC Connector) |
| Installation | Easy Setup with Coaxial Cable |
| Live Defect Monitoring | Manual Detection & Correction up to 1024 |
SKU  | CHDC-34DSDC |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Orion |
Camera Signal  | HD-SDI |
| Resolution | 3.4 Megapixel |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/30s Default (Long Exposure Mode, ~ 1 sec.) |
| Image Device | 1/2.8" 3.4 Mega Pixel CMOS |
| Image Pixels-Effective | 2096(H) x 1561(V) |
| Minimum Scene Illumination | 1.0 lux (F1.2, DSS x 2, AGC ON) |
| Operating Humidity | Under 90% Non-Condensing |
| Operating Temperature | 14° ~ 122°F (-10° ~ 50°C) |
| Dimensions (W x H) | 6.45"(D) x 4.78"(H) |
| Power Consumption | Approx. 5.3W |
| Privacy Zone | Built-in |
| Video Output | NTSC / PAL 1Vp-p / 75 ohm BNC x 1, 4:3 or 16:9 Selectable |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Digital Noise Reduction | Built-in |
| Backlight Compensation | Built-in |
| Automatic White Balance | Auto / ATW / Manual |
| Back Light Compensation | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
