Orion CHDC-34BSDC 3.4 MP Full HD CCTV Camera
SKU
CHDC-34BSDC
Model No
CHDC-34BSDC
$1,406.75
Product Highlights
- C/CS Lens Mount
- HD-SDI SMPTE 274M Standard / 3G-SDI SMPTE 424M standard
- Not Compressed Transmission for No Signal Delay
- Video Transmission Up to 100M (5C-HFBT Coaxial Cable)
- NTSC / PAL Output (BNC Connector)
Speak to an expert
The CHDC-34BSDC from Orion is a high-performance 3.4MP CMOS C/CS mount full HDTV color camera designed for superior video surveillance. With HD-SDI and 3G-SDI output capabilities, this camera ensures high-quality video transmission without any signal delay, making it an ideal choice for both commercial and residential security applications.
Orion CHDC-34BSDC Camera Features
- C/CS Lens Mount: Compatible with a wide range of lenses, offering versatility in various surveillance settings.
- HD-SDI SMPTE 274M Standard / 3G-SDI SMPTE 424M Standard: Allows for high-definition video outputs in multiple formats, ensuring compatibility with various systems.
- Not Compressed Transmission for No Signal Delay: Delivers real-time video feed, crucial for effective monitoring and security response.
- Video Transmission Up to 100M (5C-HFBT Coaxial Cable): Provides flexible installation options without compromising on video quality.

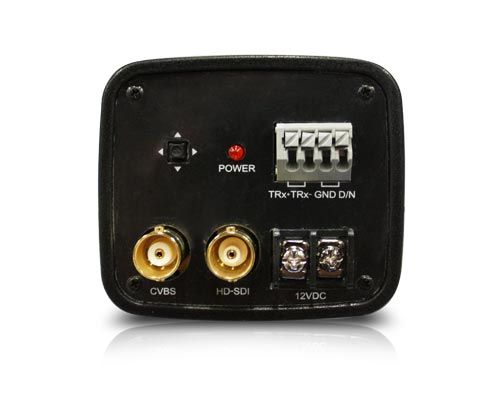

- NTSC / PAL Output (BNC Connector): Supports standard video formats, making it easy to integrate with existing setups.
- Easy Installation by Coaxial Cable: Simplifies installation process, saving time and reducing installation costs.
Orion CHDC-34BSDC Detailed Specifications
| Model | CHDC-34BSDC |
| Image Sensor | 3.4MP CMOS |
| Lens Mount Type | C/CS mount |
| Video Output | HD-SDI (1080i or 720p), 3G-SDI (1080p) |
| Data Rate | 1.485 Gbit/s (HD-SDI), 2.97 Gbit/s (3G-SDI) |
| Cable Length | Up to 100M |
| Output Standards | NTSC / PAL |
| Connector | BNC |
SKU  | CHDC-34BSDC |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Privacy Masking |
| Manufacturer | Orion |
Camera Signal  | HD-SDI |
| Resolution | 3.4 Megapixel |
| Sensor Option | 1/2.8" CMOS |

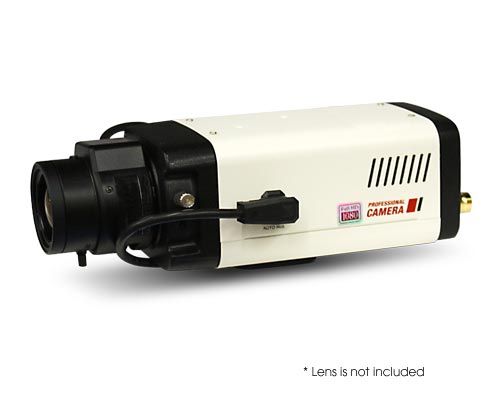

| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Image Device | 1/2.8" 3.4 Mega Pixel CMOS |
| Image Pixels-Effective | 2096(H) x 1561(V) |
| Minimum Scene Illumination | 1.0 lux (F1.2, DSS x 2, AGC ON) |
| Operating Humidity | 20 ~ 80% |
| Operating Temperature | 32°– 122°F (0°– 50°C) |
| Dimensions (W x H) | 2.6" x 2.24" x 4.96" |
| Power Consumption | Approx. 5.3W |
| Privacy Zone | Built-in |
| Signal System | NTSC, PAL |
| Video Output | NTSC / PAL 1Vp-p / 75 ohm BNC x 1 |
| Synchronization | Internal |
| Digital Noise Reduction | Built-in |
| Backlight Compensation | Built-in |
| Automatic White Balance | Auto / ATW / Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
