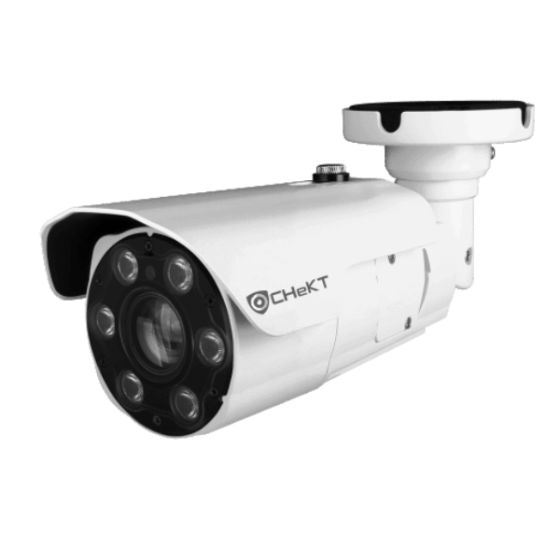

CHeKT CKIPAi5MP-B-MR 5 Megapixel Network Outdoor Bullet Camera with 2.7-13.5mm Lens
SKU
CH-CKIPAi5MP-B-MR
Model No
CKIPAi5MP-B-MR
$599.00
Product Highlights
- 30fps at 5MP
- H.265, H.264 and MJPEG compression
- Embedded AI Chip Technology for Video Analytics
- Deep Learning - Object Tracker/People Tracker
- SMART Bitrate Control and Region of Interest
Speak to an expert
The CKIPAi5MP-B-MR is a high-performance 5MP outdoor bullet IP camera engineered for professional surveillance applications. With AI-driven analytics, motorized focus zoom (MFZ), and powerful infrared (IR) illumination, it delivers exceptional clarity and intelligent monitoring in any lighting condition.
CHeKT CKIPAi5MP-B-MR Camera Features
- High Resolution: 30fps at 5MP for crisp, clear images ensuring no detail is missed during monitoring.
- Advanced Compression: H.265, H.264, and MJPEG compression for efficient storage and bandwidth use, maximizing video quality while minimizing file sizes.
- AI Integration: Embedded AI Chip Technology provides sophisticated video analytics, enhancing the surveillance capabilities with data-driven insights.
- Smart Tracking: Deep Learning - Object Tracker/People Tracker offers enhanced security by intelligently following subjects of interest automatically.
- Dynamic Control: SMART Bitrate Control and Region of Interest allow customization of video quality in specific areas, optimizing performance based on surveillance needs.
- Remote Adjustability: Remote zoom and focus lens with auto-focus capabilities enable precise adjustments, ensuring optimal field of view and detail at all times.
Detailed Specifications for CHeKT CKIPAi5MP-B-MR
| Model | CKIPAi5MP-B-MR |
| Resolution | 5MP |
| Frame Rate | 30fps |
| Compression Formats | H.265, H.264, MJPEG |
| AI Capabilities | Embedded AI Chip, Object/People Tracking |
| Illumination | Infrared (IR) for low-light conditions |
| Zoom/Focal Length | Motorized focus with remote control |
| Bitrate Control | SMART Bitrate Control |
| Region of Interest | Customizable settings for enhanced monitoring |
SKU  | CH-CKIPAi5MP-B-MR |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | CHeKT |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 309.8mm x 96.7mm |
| Electronic Shutter | Auto / Manual: 1/30 - 1/32,000, Anti-Flicker, Slow Shutter |
| Image Device | SONY STARVIS EXMOR 1/2.8" 5M CMOS |
| Minimum Scene Illumination | Color: 0.08 Lux / B/W : 0 Lux (IR LED On) |
| Operating Humidity | 10 - 90% RH (non-condensing) |
| Operating Temperature | -40°C - 50°C (-40°F - 122°F) |
| Power Consumption | DC12V Max 13.2W, PoE Max 15.6W |
| Protocols | TCP/IP, UDP, AutolP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D-DNR |
| Angle of View | Horizontal: Approx. 98.3° (Wide) to 31.6” (Tele) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
