Flir Model CF-5222-00

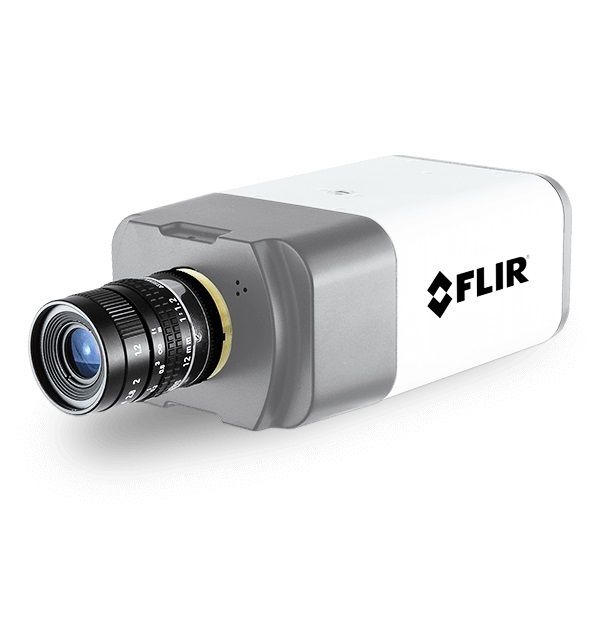

Flir CF-5222-00 2 Megapixel True Day/Night Outdoor Network Box Camera
- 2MP
- AI
- Night Vision
- Outdoor
- Reduced false alarm rates for people standing upright
- True/Shutter WDR (multi-exposure)
- Increased detection distance
- Integrated web setup
- Supports relay events triggered by analytics

Overview
The CF-5222-00 from Flir is a 2 Megapixel True Day/Night Outdoor Network Box Camera. The FLIR HD broadcast-quality IP camera technology together with industry-leading, military-grade analytics from ioimage. Together they’re better. Delivering low bandwidth and predictable storage, FLIR’s HD 1080p camera delivers pristine picture quality in outdoor, low-light and high contrast lighting conditions. The result is significant cost savings in lighting installation and power consumption. The ioi HD CF-5222 is FLIR’s first HD camera that offers state-of-the-art ioi analytics capable of dealing with extreme lighting conditions in surveillance applications.
Flir CF-5222-00 Camera Features
- Reduced false alarm rates: Minimizes unnecessary alerts by accurately identifying people in upright positions, enhancing monitoring efficiency.
- True/Shutter WDR (multi-exposure): Improves image clarity across varying light conditions, ensuring important details are captured regardless of lighting.
- Increased detection distance: Extends the reach of surveillance capabilities, allowing for a broader area of coverage.
- Integrated web setup: Simplifies installation and configuration through a user-friendly web interface, reducing setup time.
- Supports relay events triggered by analytics: Enhances security automation by integrating intelligent alerts with external systems.
- Solo Setup: Allows for easy standalone installation without needing additional equipment, streamlining the setup process.
- PoE: Enables power over Ethernet, simplifying cabling and reducing installation costs.
- ONVIF Profile S compliant: Ensures compatibility with a variety of other security systems and devices, providing flexibility and ease of integration.
Flir CF-5222-00 Detailed Specifications
| Camera Type | 2 Megapixel True Day/Night Outdoor Network Box Camera |
| Image Resolution | 1080p HD |
| WDR Technology | True/Shutter WDR (multi-exposure) |
| Analytics | Military-grade ioi analytics |
| Power Supply | Power over Ethernet (PoE) |
| Compatibility | ONVIF Profile S compliant |
| Setup Method | Integrated web setup/Solo Setup |
| Features | Reduced false alarm rates, Increased detection distance, Relay event support |
Built-in Functions
- Audio
- Auto Gain Control
- Day/Night
- Digital Noise Reduction
- Automatic White Balance
- Back Light Compensation
- Wide Dynamic Range
- ONVIF
Specifications
| SKU | CF-5222-00 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Flir |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Auto/Manual |
| Dimensions (W x H) | 125 x 82 x 52 mm/4.9 x 3.2 x 2” (without lens) |
| Image Device | 1/2.8” 2.1 Megapixel Progressive Exmor CMOS |
| Image Pixels-Effective | 1920 x 1080 |
| Minimum Scene Illumination | Color: 0.2 [email protected], B/W: 0.1 [email protected] @ 15 FPS, 36dB max. gain |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Power Consumption | 8W |
| Protocols | IPv4, TCP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, ONVIF Profile S, NTP |
| Digital Noise Reduction | 2DNR/3DNR |
| Back Light Compensation | On/Off |
| Automatic White Balance | Auto |
