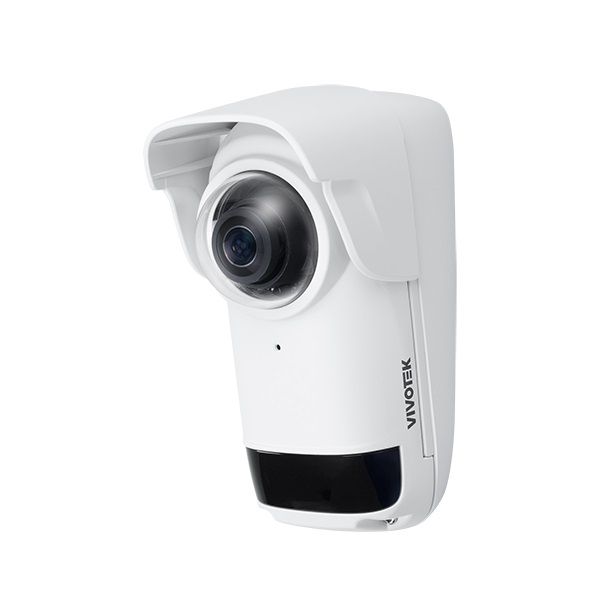

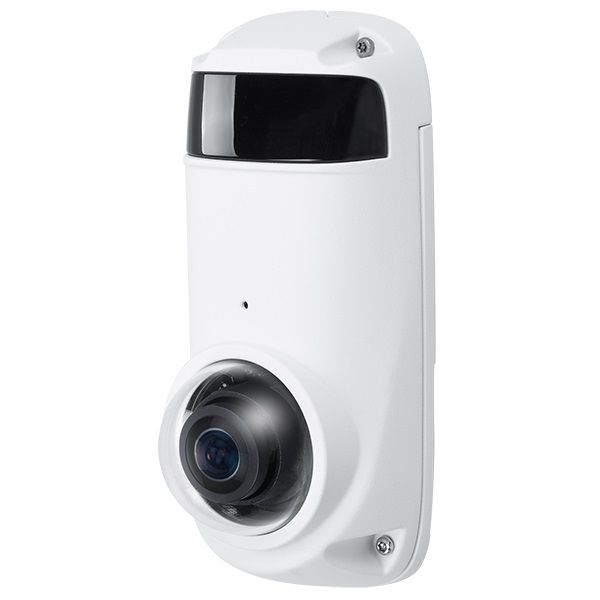

Vivotek CC9391-HV 8 Megapixel Compact Panoramic Network Camera with 2.53mm Lens
SKU
CC9391-HV
Model No
CC9391-HV
$807.69
Product Highlights
- WDR Pro for Unparalleled Visibility
- Weather-proof IP66-rated and Vandal-proof IK10-rated
- ±20° Tilt Lens
- Built-in Microphone
- 3D Noise Reduction for Low-light Conditions
Speak to an expert
The CC9391-HV from Vivotek is an 8 megapixel network IP outdoor IR compact panoramic AI camera with a 2.53mm lens. This advanced camera offers exceptional coverage and clarity for all your security needs, both day and night, with innovative technology designed to enhance your surveillance capabilities.
Vivotek CC9391-HV Camera Features
- Wide Field of View: The 180-degree panoramic view eliminates blind spots, ensuring comprehensive coverage of your property.
- Enhanced Flexibility: The included tilt bracket allows for adjustable angles of 15~20 degrees, offering versatile positioning for optimal coverage.
- AI Object Analytics: Identify people and vehicles based on attributes like color and type, streamlining investigations and reducing duplicate entries.
- Night Vision Technology: With Smart IR technology, the camera provides effective night vision up to 20 meters, ensuring security in low light conditions.
- Built to Last: Rated IP66 for weather resistance and IK10 for vandal-proofing, making it suitable for outdoor installations in challenging environments.
Vivotek CC9391-HV Detailed Specifications
| Megapixels | 8 MP |
| Lens | 2.53 mm |
| Field of View | 180 degrees |
| Night Vision Range | Up to 20 meters |
| Weather-Proof Rating | IP66 |
| Vandal-Proof Rating | IK10 |
| Frame Rate | 30 fps |
| Audio Capability | Built-in Microphone |
| 3D Noise Reduction | Yes |
| Tilt Adjustment | ±20 degrees |
SKU  | CC9391-HV |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Vivotek |
Camera Signal  | Network IP |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Dimensions (W x H) | 160 x 72 x 60 mm |
| Image Device | 1/1.8" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.08 lux @ F2.4 (Color), 0.005lux @ F2.4 (B/W), 0 lux with IR Illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | Starting Temperature: -10°C ~ 55°C (14°F~ 131°F) Working Temperature: -30°C ~ 55°C (-22°F~ 131°F)(IR on) -30°C ~ 60°C (-22°F~ 140°F)(IR off) |
| Power Consumption | Max. 10.83W/7.5W (IR on/off |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 62 dB |
| Weatherproof | IP66 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
