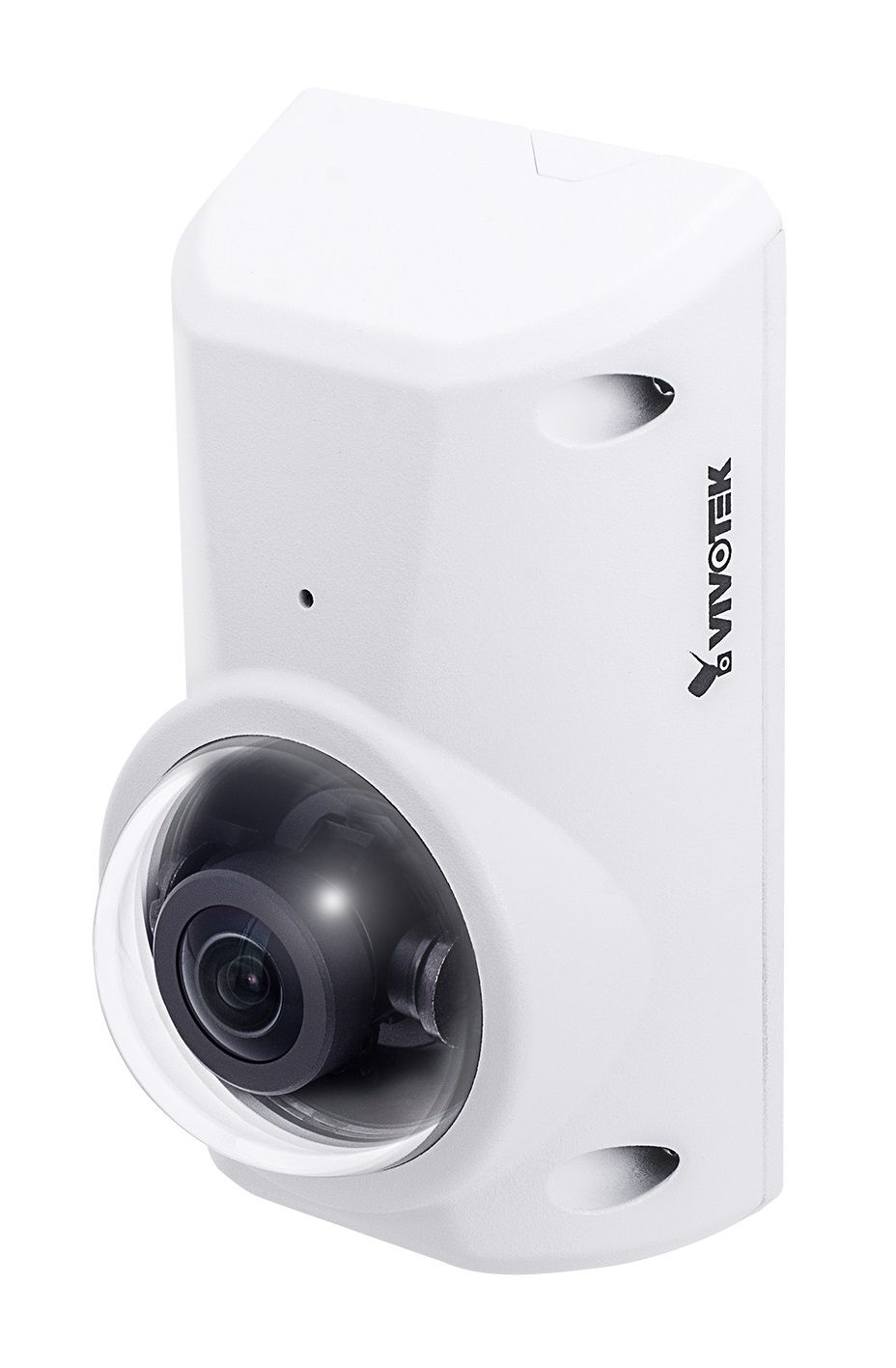

Vivotek CC9380-HV 5 Megapixel Outdoor Anti-Ligature Fisheye Network Camera, 1.45mm Lens

SKU
CC9380-HV

Vivotek Model CC9380-HV

Vivotek CC9380-HV 5 Megapixel Outdoor Anti-Ligature Fisheye Network Camera, 1.45mm Lens

  • 5MP
  • 1.45mm
  • Outdoor
Free shipping over $450
Model No
CC9380-HV
$394.97
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5-Megapixel CMOS Sensor
  • 20 fps @ 2560x1920 (W DR On), 30 fps @ 2560x1920 (W DR Off)
  • Anti-Ligature Design
  • 180° Horizontal Panoramic View
  • W DR Pro (120dB) to Provide Extreme Visibility in High Light Contrast Scenes

Overview

Vivotek’s CC9380-HV is an upgraded version of the widely recognized CC8370-HV, now enhanced with a 5MP resolution and H.265 compression technology. This advanced camera features a true day/night mode with a removable IR-cut filter and utilizes a 180° panoramic fisheye lens for seamless high-definition surveillance. Its rugged design ensures durability in harsh outdoor environments, while its anti-ligature housing provides additional safety benefits, making it an ideal choice for sensitive applications.

Vivotek CC9380-HV Unique Selling Points

  • 5-Megapixel CMOS Sensor: Offers crystal-clear image resolution to capture more detail in surveillance footage.
  • 20 fps @ 2560x1920 (W DR On), 30 fps @ 2560x1920 (W DR Off): Delivers smooth video playback, essential for real-time monitoring and analysis.
  • Anti-Ligature Design: Reduces risks of self-harm, making it suitable for high-risk environments such as hospitals and correctional facilities.
  • 180° Horizontal Panoramic View: Provides extensive surveillance coverage with fewer cameras needed, saving costs and ensuring comprehensive monitoring.
  • W DR Pro (120dB): Enhances visibility in scenes with varying light conditions to ensure clear images regardless of environmental factors.
  • SNV (Supreme Night Visibility): Enhances low-light performance for reliable nighttime monitoring.
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Protects the camera from harsh weather conditions and vandalism.
  • ±25° Tilt Lens: Allows flexibility in adjusting the viewing angle to optimize coverage.
  • Built-in Microphone: Enables audio monitoring, offering additional insight into captured footage.
  • 3D Noise Reduction: Improves image quality under low-light conditions, providing clearer visuals.
  • Trend Micro IoT Security: Incorporates advanced network security features to safeguard against cyber threats.

Detailed Vivotek CC9380-HV Specifications

FeatureDetails
Resolution5 Megapixels
Frame Rate20 fps @ 2560x1920 (W DR On), 30 fps @ 2560x1920 (W DR Off)
Lens Type1.45mm Fisheye Lens
Field of View180° Horizontal
Day/Night FunctionalityTrue Day/Night with removable IR-cut filter
Weather ResistanceIP66-rated
Vandal ResistanceIK10-rated
Audio CapabilityBuilt-in Microphone
Additional FeaturesW DR Pro, SNV, 3D Noise Reduction, Trend Micro IoT Security

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  CC9380-HV
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    5 Megapixel
Lens Type    Fixed
Lens Size    1.45mm
Mount Type  Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  115 x 65 x 59 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.7" Progressiv e CMOS
Minimum Scene Illumination  0.11 Lux @ F2.2 (Color), 0.01 Lux @ F2.2 (B/W)
Operating Humidity    90%
Operating Temperature    Starting Temperature: -10°C ~ 50°C (14°F~ 122°F), Working Temperature: -30°C ~ 50°C (-22°F~ 122°F)
Power Consumption  Max. 5 W
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
S/N Ratio  62 dB
Weatherproof    IP66
Digital Noise Reduction    3DNR
Angle of View    180° (Horizontal), 120° (Vertical), 180° (Diagonal)
Motion Detection Tracking    Five-window v ideo motion detection
