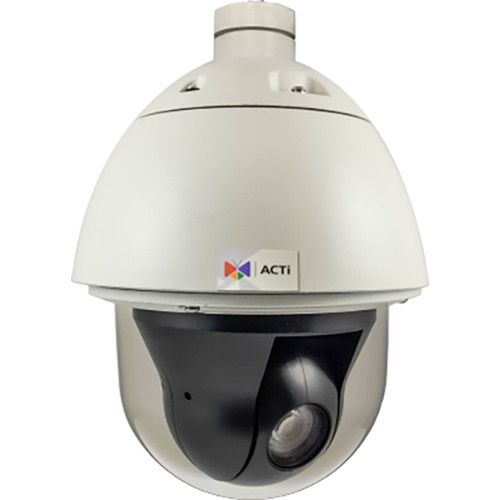

ACTi B917 2 Megapixel Day/Night Outdoor Speed Dome Camera, 4.5-135mm Lens
SKU
B917
Model No
B917
$2,080.35
Product Highlights
- 2 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity
- 30x Zoom Lens with f4.5-135mm / F1.6-F4.4, DC Iris, Auto Focus
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080
Speak to an expert
The B917 from ACTi is a 2MP outdoor speed dome camera, designed for day and night use. It offers extreme wide dynamic range, superior low light sensitivity, and boasts a powerful 30x optical zoom lens, making it ideal for various surveillance needs.
ACTi B917 Camera Features
- 2 Megapixel with 1080p: Provides high-definition images for clear video surveillance.
- Day & Night with Superior Low Light Sensitivity: Ensures optimal performance in varying lighting conditions for 24/7 monitoring.
- 30x Zoom Lens with f4.5-135mm / F1.6-F4.4, DC Iris, Auto Focus: Allows for detailed close-ups of distant subjects, enhancing surveillance coverage.
- Extreme WDR (145 dB): Delivers exceptional clarity in challenging lighting situations, minimizing glare and shadows.
- 60 fps at 1920 x 1080: Captures smooth and fluid video for accurate motion detection and event review.
- Endless Pan & Tilt: Offers comprehensive coverage of large areas without blind spots.
- Weatherproof (IP67) and Vandal Proof Metal Casing (IK10) with Built-in Dehumidifier: Ensures durability and reliability in harsh environments.
- Built-in Analytics: Provides advanced functionalities for enhanced monitoring and incident detection.
ACTi B917 Detailed Specifications
| Model | ACTi B917 |
| Video Resolution | 1080p (2 Megapixel) |
| Lens Specification | 4.5-135mm, F1.6-F4.4, 30x optical zoom |
| WDR | Extreme WDR (145 dB) |
| Frame Rate | 60 fps at 1920 x 1080 |
| Weatherproof Rating | IP67 |
| Vandal Proof Rating | IK10 |
| Special Features | Built-in Analytics, DC Iris, Auto Focus, Built-in Dehumidifier |
SKU  | B917 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 200 mm x 276 mm (7.87" x 10.87") |
| Electronic Shutter | 1/5 - 1/32,000 sec (manual mode); 1/5 - 1/32,000 sec (auto mode) |
| Image Device | 1/2.8'' Progressive Scan CMOS |
| Image Pixels-Effective | 1944 (H) x 1224 (V) (2.38 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (IR LED On) |
| Operating Humidity | 10% ~ 85% RH, Built-in dehumidfier |
| Operating Temperature | -52°C ~ 60°C (-61.6°F ~ 140°F ) within 30mins at AC 24V, -40°C ~ 60°C (-40°F ~ 140°F ) within 30mins at High PoE |
| Privacy Zone | 20 configurable 3D regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D + 3D |
| Angle of View | 59.8° - 2.34° |
| Motion Detection Tracking | 10 regions |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
