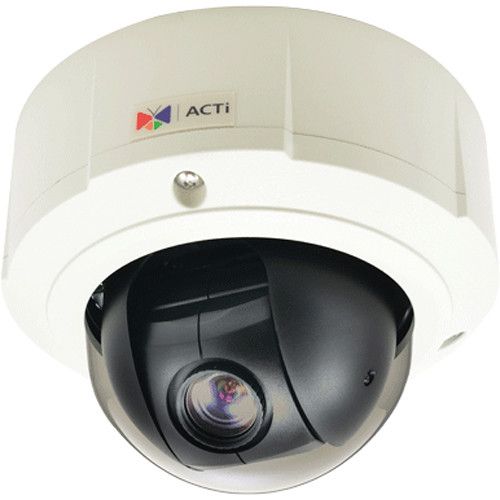

ACTi B910 4 Megapixel Outdoor D/N Network Mini PTZ Camera, 4.9-49mm Lens
SKU
B910
Model No
B910
$824.85
Product Highlights
- 4 Megapixel with 1080p
- Day & Night
- 10x Zoom Lens with f4.9 - 49mm / F1.8 - 3.0, DC Iris, Auto Focus
- Basic WDR (70 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The B910 from ACTi is a 4MP Outdoor Mini PTZ with D/N capabilities, equipped with a Basic WDR and a versatile 10x Zoom lens. This robust camera is designed to provide high-quality surveillance in various outdoor environments, ensuring clarity and reliability around the clock.
ACTi B910 Camera Features
- 4 Megapixel Resolution: Delivers clear images at 1080p for enhanced detail and security monitoring.
- Day & Night Functionality: Automatically adjusts for optimal performance in both day and night conditions, ensuring 24/7 surveillance.
- 10x Zoom Lens: Features a focal length of f4.9 - 49mm and an aperture range of F1.8 - 3.0, providing flexibility to zoom in on important areas with fine detail.
- Basic WDR (70 dB): Offers improved visibility in challenging lighting conditions, making it ideal for high-contrast scenes.
- High Frame Rate: Achieves 30 fps at 1920 x 1080 resolution, ensuring smooth video playback and recording.
- Pan & Tilt Capability: Allows for adjustable viewing angles, enhancing coverage of your surveillance area.
- Weatherproof (IP67) and Vandal Proof (IK10): Built to withstand harsh outdoor conditions and potential vandalism, ensuring durability and longevity.
ACTi B910 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Outdoor Mini PTZ |
| Resolution | 4 Megapixel (1080p) |
| Lens | 10x Zoom (f4.9 - 49mm) |
| Aperture | F1.8 - 3.0 |
| WDR | Basic WDR (70 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
| Weather Resistance | IP67 |
| Vandal Resistance | IK10 |
SKU  | B910 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 10X |
| Mount Type | Ceiling, Corner, Pendant, Pole, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 153 mm x 115 mm (6'' x 4.5'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| Image Pixels-Effective | 2688 (H) x 1520 (V) (4.09 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122 °F) |
| Power Consumption | PoE: 11.2 W (built-in heater and fan on), 12vDC: 7.8 W (built-in heater and fan on) |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P |
| S/N Ratio | 52 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D+3D |
| Automatic White Balance | automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
