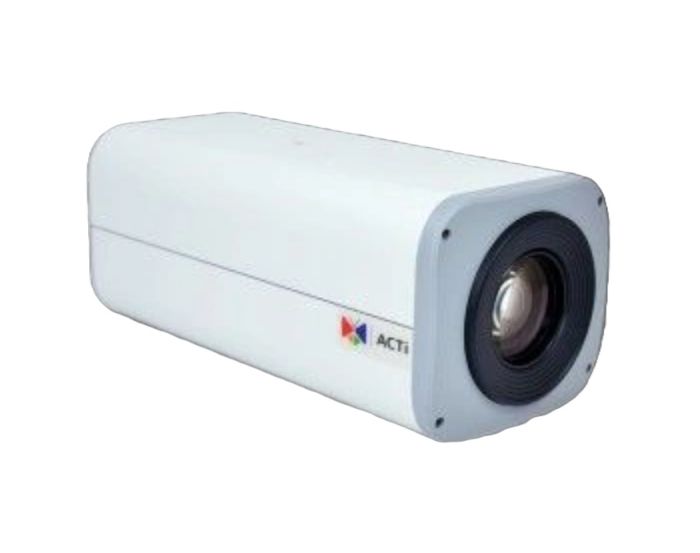

ACTi B27 3 Megapixel Day/Night Indoor/Outdoor Box Camera, 5.2-62.4mm Lens
Model No
B27
$583.20
Product Highlights
- 3 Megapixel with 1080p
- Day & Night
- 12x Zoom Lens with f5.2-62.4 mm / F1.8-3.0, DC Iris, Auto Focus
- Superior WDR (110 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The ACTi B27 is a state-of-the-art 3 Megapixel Day/Night Box Camera, designed for both indoor and outdoor surveillance. With its powerful 12x zoom lens and superior Wide Dynamic Range (WDR), this camera ensures clear and detailed images in varying lighting conditions, making it an ideal solution for security needs.
ACTi B27 Camera Features
- 3 Megapixel with 1080p: Provides high-resolution images that enhance detail and clarity, ensuring reliable monitoring.
- Day & Night: Equipped with infrared capabilities for 24/7 surveillance, ensuring visibility in low-light conditions.
- 12x Zoom Lens: Adjustable f5.2-62.4 mm / F1.8-3.0 lens allows for precise focusing and greater flexibility in capturing distant subjects.
- Superior WDR (110 dB): Handles complex lighting situations, enhancing image quality in high-contrast environments.
- 30 fps at 1920 x 1080: Delivers smooth, high-definition video footage at 30 frames per second for clear live viewing and recordings.
ACTi B27 Detailed Camera Specifications
| Camera Type | Box Camera |
| Resolution | 3 Megapixel (1080p) |
| Lens Type | 12x Zoom Lens, f5.2-62.4 mm / F1.8-3.0 |
| WDR | Superior WDR (110 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
| Day/Night Functionality | Yes |
SKU  | B27 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 12X |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 81 mm x 71 mm x 176 mm (3.2" x 2.8" x 6.9") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | PoE: 5.28 W, DC12V: 4.44 W |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P |
| Zoom Ratio | 12x optical |
| Angle of View | 50.2° ~ 4.69° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
