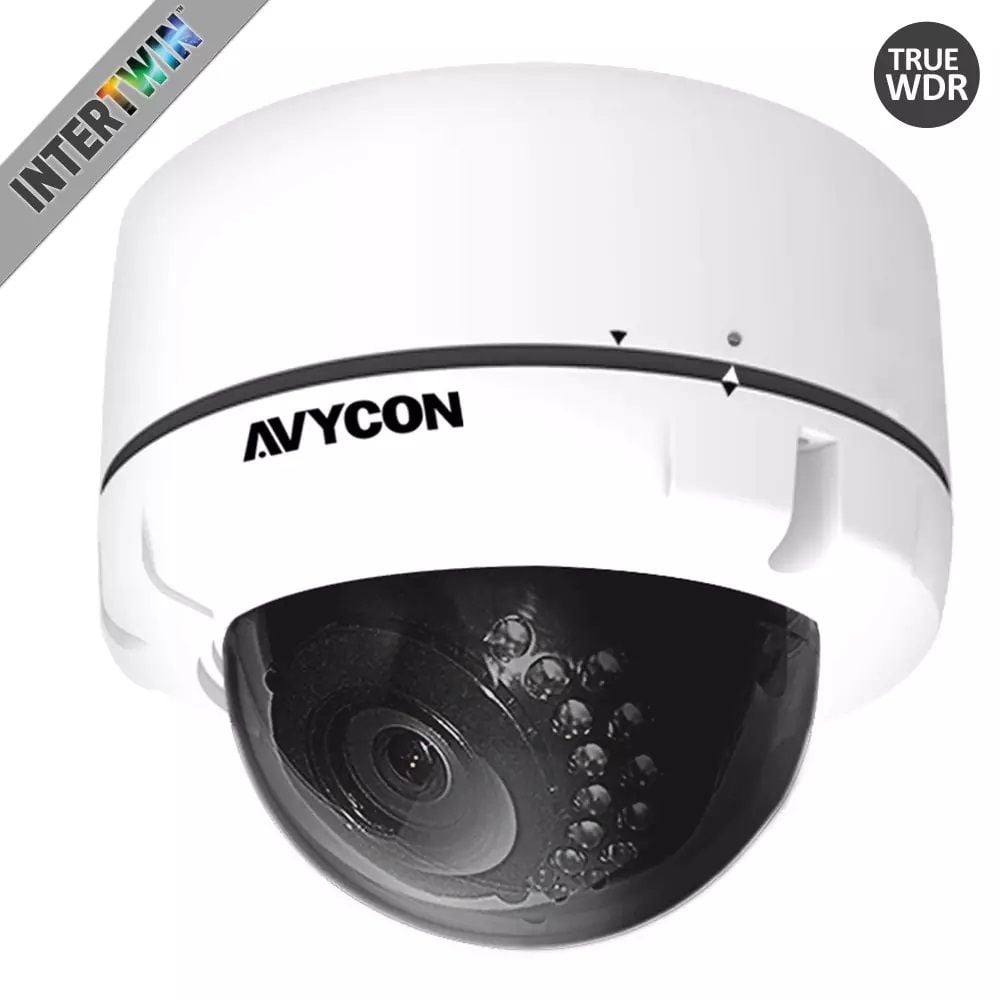

Avycon AVC-VA92VLT 1080P EX-SDI HD-TVI HD-SDI Analog IR Vandal Dome 2.8-12mm White
SKU
AVC-VA92VLT
Model No
AVC-VA92VLT
$668.00
Product Highlights
- Equipped with Smart IR Technology which Prevents Overly Exposed image due to IR Reflection
- It also Balances out the Night Timeme Image if IR is being Reflected off of a Closer Object.
- High Quality DC Iris 4x Megapixel Zoom
- Lens (2.8-12mm) Provides Superior Picture Quality which is Very Important for today's High Definition Cameras. (Available on ″VLT″ models only)
- Dual HD Video Output
- Both EX-SDI/HD-SDI and HD-TVI output Provide Full HD @ 30fps Real-Time Video simultaneously
Speak to an expert
The AVC-VA92VLT from Avycon is a 1080p HD TVI / (EX-)HD-SDI / Analog IR vandal dome camera that uses the latest technology to deliver excellent picture quality with a 1080p resolution, a 2.8-12mm varifocal lens, and supports both 12vDC and 24vAC power supplies for versatile installation.
Avycon AVC-VA92VLT Dome Camera Features
- Smart IR Technology: Prevents overly exposed images due to IR reflection, enhancing image clarity in low light.
- Night Time Image Balancing: Improves night-time visuals by balancing IR reflections, ensuring consistent quality.
- High Quality DC Iris: A 4x megapixel zoom lens delivers superior picture quality, critical for today's high-definition requirements.
- Varifocal Lens (2.8-12mm): Provides excellent picture quality that adapts to various scenarios, enhancing monitoring capabilities.
- Dual HD Video Output: Both EX-SDI/HD-SDI and HD-TVI outputs provide full HD video at 30fps in real-time.
- Simultaneous Connection Capability: Allows connecting up to two high-definition DVRs or one DVR and a live TV/monitor at the same time.
- On-Board Heater & Thermostat: Supports continuous operation in extreme conditions, effectively functioning below -22°F.
- IDP Isolation Dual Power: Provides efficient and safe power, protecting against surges and ground noise.
- AQUA-SEAL Design: Rated for IP68, this design makes the camera fully water-sealed, ideal for harsh environments.
- Twist-Lock Base Tray: The hassle-free twist and lock design saves time and effort during installation.
Avycon AVC-VA92VLT Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 1080p HD |
| Lens | 2.8-12mm Varifocal |
| Power Supply | 12vDC / 24vAC |
| IR Technology | Smart IR Technology |
| Weather Rating | IP68 |
| Temperature Range | Up to -22°F |
| Dual Output | EX-SDI/HD-SDI and HD-TVI |
| Installation Feature | Twist-Lock Base tray |
| Zoom | 4x Megapixel Zoom |
SKU  | AVC-VA92VLT |
|---|---|
| Features | Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant |
| Mount Type | Wall |
| Voltage | 24vAC |
| Electronic Shutter | NTSC: AUTO (1/30~1/60,000) , PAL: AUTO (1/25~1/60,000) FLK |
| Gamma Correction | 0.45 / 0.5 / 0.55 / 0.6 / 0.65 |
| Image Device | 1/2.9" 2.4MEGAPIXEL SONY EXMOR CMOS |
| Image Pixels-Effective | 1920 (H) × 1080 (V) = 2.4M |
| IR Distance | 28.95m/95ft |
| Minimum Scene Illumination | 0.02Lux (SENS-UP X32) |
| Operating Humidity | MAX 90% RH |
| Operating Temperature | -22°F ~140°F |
| Power Consumption | DC IR OFF : 200mA (MAX) / DC IR ON : 450mA (MAX) , AC IR OFF : 190mA (MAX) / AC IR ON : 350mA (MAX) |
| S/N Ratio | MORE THAN 52dB |
| Scanning System | PROGRESSIVE |
| Video Output | HD-TVI, EX-SDI/HD-SDI, CVBS (OSD SELECTABLE) |
| Synchronization | INTERNAL |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Backlight Compensation | OFF / HLC / BLC / WDR |
| Automatic White Balance | AUTO / AUTODEXT / PRESET / MANUAL |
| Auto Gain Control | LEVEL (0~20) ADJUSTMENT |
| IR LEDs | 36 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
