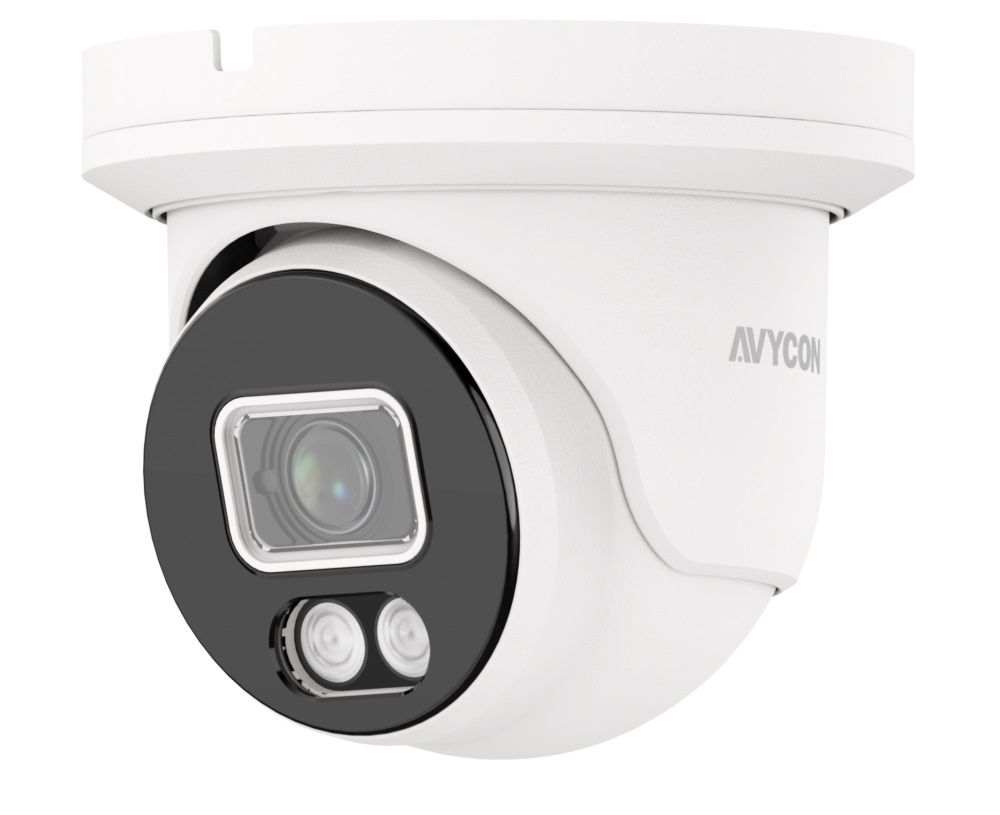

Avycon AVC-TCE21F28 2 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
SKU
AVC-TCE21F28
Model No
AVC-TCE21F28
$180.00
Product Highlights
- 2MP ( 1920 x 1080 ) @ 30fps
- Max. Resolution: 1920 x 1080
- True Day & Night ICR
- Up to 98 ft. IR Illumination
- Fixed 2.8mm Lens

Speak to an expert
The AVC-TCE21F28 from Avycon is a 2 megapixel network IR outdoor dome camera featuring a 2.8mm lens, designed for high-definition surveillance. This camera boasts an upgraded Smart IR LED array and a user-friendly DIP switch for easy video format selection (HD-TVI, CVI, AHD, and Analog). Enhanced power efficiency is achieved through a modern chipset for up to 20% savings in consumption. With features like AoC (Audio over Coaxial), Digital NR, and an IP67 rating, this camera adapts seamlessly to outdoor environments while ensuring superior performance and reliability.
Avycon AVC-TCE21F28 Camera Features
- 2MP Resolution: Offers clear image quality at 1920 x 1080 pixels, ensuring detailed monitoring of your surroundings.
- Frame Rate: Captures video at 30fps, providing smooth footage to help identify movement and activity with ease.
- True Day & Night ICR: Automatically switches between day and night modes for reliable surveillance in varying light conditions.
- IR Illumination: Up to 98 ft. of infrared illumination enables nighttime visibility, enhancing security during low-light conditions.
- Fixed 2.8mm Lens: Provides a wide field of view, making it ideal for monitoring larger areas.
- Image Enhancement Features: 2D DNR, Digital WDR, HLC, and BLC improve image clarity and detail in challenging lighting scenarios.
- Audio over Coaxial: Supports audio transmission up to 22.9ft, allowing for integrated audio monitoring alongside video.
- Remote Access: Compatible with Windows, macOS, iOS, and Android devices for convenient remote viewing and management.
- Wide Operating Temperature: Withstand temperatures from -22°F to 122°F, ensuring functionality in diverse climates.
- Power Supply: Operates on DC12V, suitable for standard security system installations.
- NDAA Compliant: Meets the National Defense Authorization Act standards for peace of mind regarding government compliance.
Detailed Camera Specifications for Avycon AVC-TCE21F28
| Image Sensor | 2 Megapixel CMOS |
| Max Resolution | 1920 x 1080 |
| Lens | Fixed 2.8mm |
| Night Vision | Up to 98 ft. with Smart IR |
| Video Formats | HD-TVI, CVI, AHD, Analog |
| Power Consumption | DC12V |
| Audio Features | Audio over Coaxial up to 22.9ft |
| Operating Temperature | -22°F - 122°F |
| IP Rating | IP67 (Weatherproof) |
| Weight | Lightweight for ease of installation |
| NDAA Compliance | Yes |
| SKU | AVC-TCE21F28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Coaxitron, Day/Night, Digital Noise Reduction, Mirror, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
| Camera Signal | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto |
| Image Device | 1/2.7" Progressive Scan CMOS |
| IR Distance | 29.87m/98ft |
| Minimum Scene Illumination | [email protected](AGC ON),0Lux with IR ON |
| Operating Temperature | -22°~131° F (-30°~55° Celcius) |
| Dimensions (W x H) | 3.93” x 2.56” (100.0mm x 65.0mm) |
| Power Consumption | IR OFF ≤0.8W,IR ON ≤4W |
| S/N Ratio | 36dB |
| Video Output | 1-channel BNC Video Output |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D DNR |
| Mirror | Yes |
| Angle of View | H:109.7° / V:57.6° / D:131.0° |
| Audio | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
| Coaxitron | Yes |
