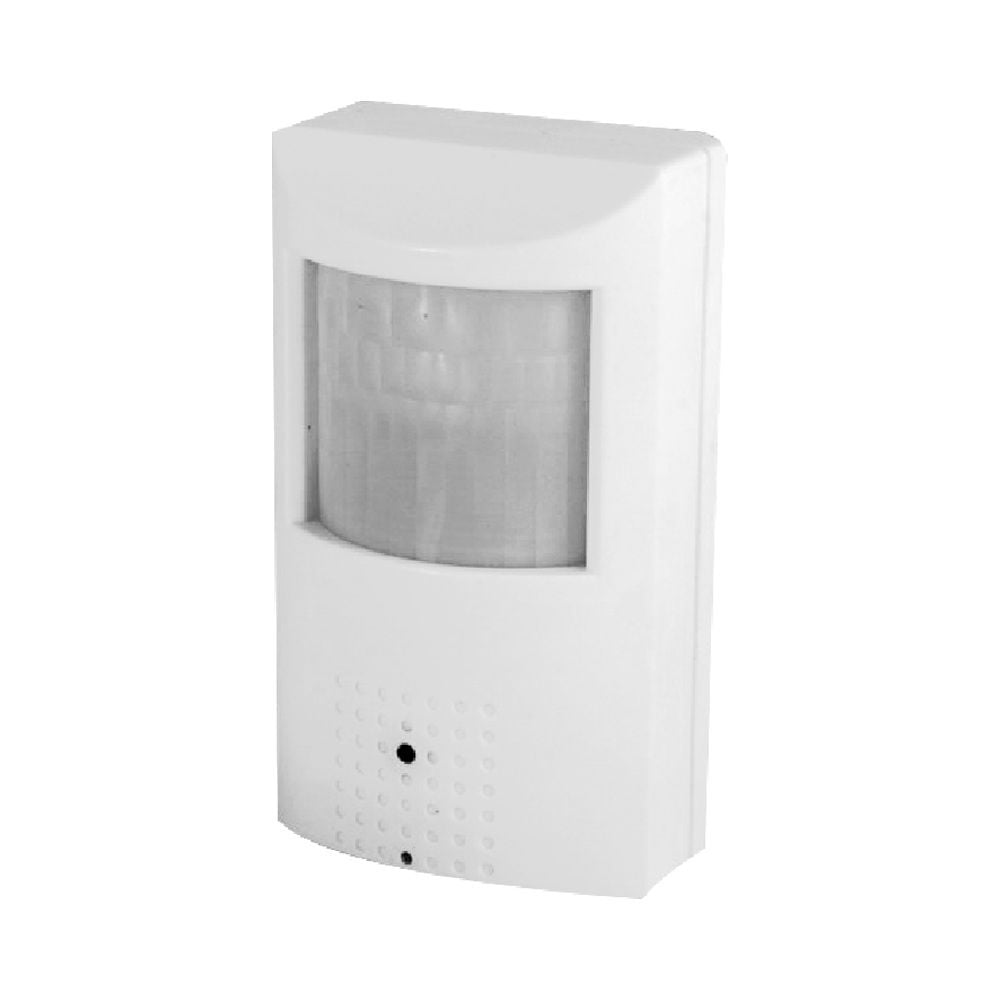

Avycon AVC-PRHN41FT 4 Megapixel Network IP Covert PIR Case Detector Style Camera with 3.7mm Lens
SKU
AVC-PRHN41FT
Model No
AVC-PRHN41FT
$647.00
Product Highlights
- H.264 Compression
- 1/2.8” 4 Megapixel CMOS Sensor
- Effective Pixels: 2560 x 1440
- 3.7mm Fixed Lens
- 4MP @ 30fps

Speak to an expert
The AVYCON AVC-PRHN41FT camera is a state-of-the-art 4MP IP Pinhole Lens PIR Type Camera designed for discreet surveillance. This camera boasts a 3.7mm pinhole lens, high-resolution imaging, and remarkable low-light performance, making it an excellent choice for secure environments.
Avycon AVC-PRHN41FT Camera Features
- High-Quality Compression: H.264 compression ensures efficient data storage and transmission without compromising image quality.
- Advanced Imaging Sensor: The 1/2.8” 4 Megapixel CMOS Sensor captures sharp and detailed images, enhancing overall surveillance effectiveness.
- Superior Resolution: With effective pixels of 2560 x 1440, this camera delivers crystal-clear video, allowing for easy identification in various settings.
- Discreet Design: Equipped with a 3.7mm fixed lens, this camera can be seamlessly integrated into any environment for unobtrusive monitoring.
- High Frame Rate: Achieving 4MP at 30fps ensures smooth video playback, crucial for capturing fast-moving objects.
- Exceptional Low-Light Performance: With a minimum illumination of 0.001 Lux @ F1.2 and IR capabilities, this camera excels in low-light conditions, providing reliable surveillance around the clock.
- Wide Dynamic Range: DWDR technology enables better image quality in high-contrast lighting scenarios, enhancing visibility in difficult lighting conditions.
- Flexible Power Options: Operates on 12V DC or Power over Ethernet (PoE), offering versatile installation solutions to meet various operational needs.
Avycon AVC-PRHN41FT Detailed Specifications
| Camera Type | 4MP IP Pinhole Lens PIR Type Camera |
| Image Sensor | 1/2.8” 4 Megapixel CMOS Sensor |
| Effective Pixels | 2560 x 1440 |
| Lens Type | 3.7mm Fixed Lens |
| Video Frame Rate | 4MP @ 30fps |
| Minimum Illumination | 0.001 Lux @ F1.2, AGC ON, 0 Lux with IR |
| Dynamic Range | DWDR |
| Power Supply | 12V DC / PoE |
| SKU | AVC-PRHN41FT |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Wide Dynamic Range |
| Manufacturer | Avycon |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 4.72 x 2.75in (120 x 70mm) |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Image Device | 1/2.8” CMOS Sensor |
| Minimum Scene Illumination | Color: [email protected], AGC ON, B/W: 0lux with IR |
| Operating Humidity | 10% ~ 90% humidity |
| Operating Temperature | -13°~131°F (-25°~55°C) |
| Power Consumption | 200mA |
| Protocols | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Digital Noise Reduction | 3D DNR |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
