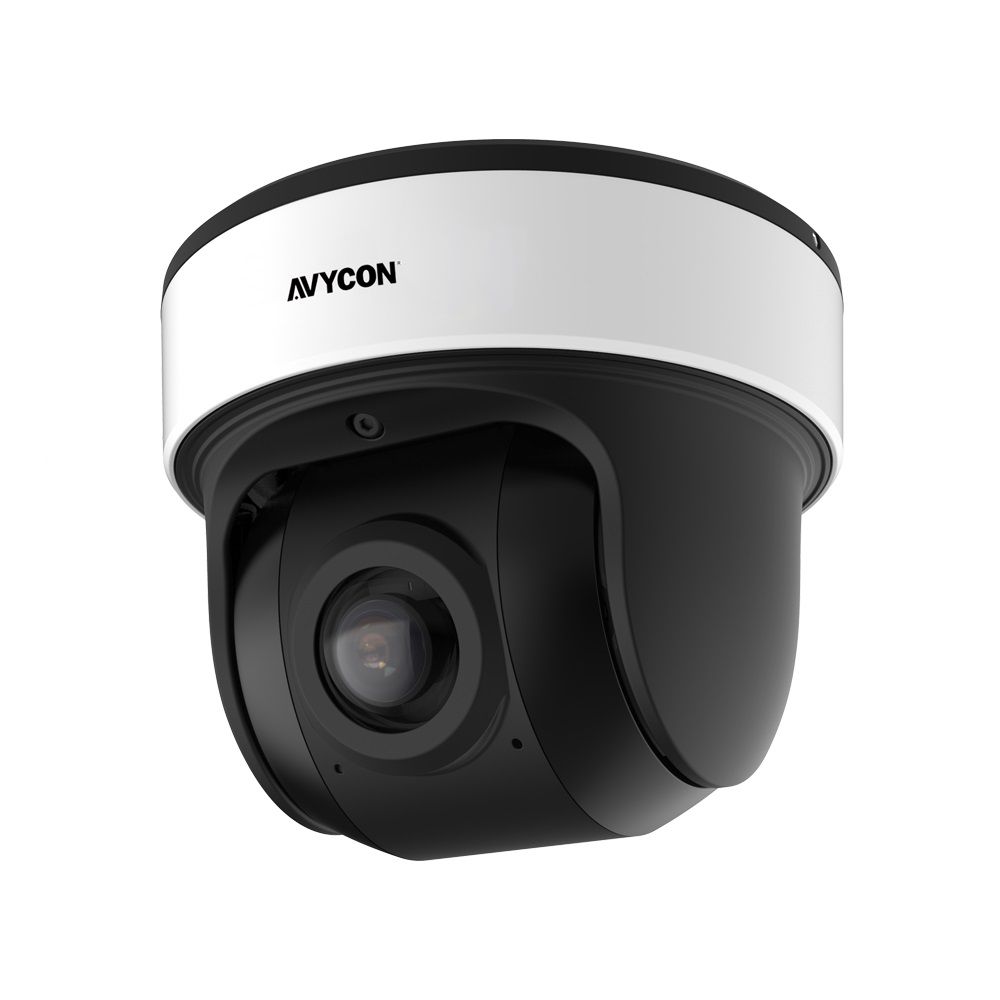

Avycon AVC-NVP81F180 4K 8 Megapixel IR Outdoor 180° Mini Dome Network Camera with 1.68mm Lens
SKU
AVC-NVP81F180
Model No
AVC-NVP81F180
$1,175.00
Product Highlights
- 4K (3840 x 2160) @ 15fps / (3200 x 1800) @ 25fps
- Max. Resolution: 3840 x 2160
- True Day & Night ICR filter Auto Switch
- Up to 49 ft (15 m) IR Illumination
- Fixed 1.68mm Lens
Speak to an expert
The AVYCON AVC-NVP81F180 camera is a 4K 180° Mini Dome Network Camera with Smart Features. This 4K Panoramic camera supports True Day and Night mode, PoE, and up to 49ft. of Smart IR Illumination. This camera includes a Fixed 1.68mm Lens with Auto-focus capabilities that can be controlled through a DVR. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Capable of 180 degrees of motion and recording audio through an advanced built-in microphone and integrated junction box.
AVYCON AVC-NVP81F180 Camera Features
- 4K Resolution: Enjoy stunning clarity and detail with 3840 x 2160 resolution at 15fps, perfect for capturing all necessary footage.
- True Day & Night: The ICR filter enables automatic switching, ensuring clear images regardless of lighting conditions.
- Smart IR Illumination: Up to 49 ft (15 m) infrared illumination for superior night vision capabilities.
- Fixed 1.68mm Lens: Offers a wide field of view, combined with auto-focus for optimal clarity.
- Advanced Encoding Features: Equipped with 3D/2D DNR, Super WDR, HLC, BLC, and ROI for improved image quality and adaptability in various environments.
- Triple Stream Support: Allows simultaneous streaming for versatile viewing options across devices.
- Remote Access Compatibility: Easily connect and view footage remotely via Windows, macOS, iOS, or Android devices.
- IP67 Rated: Durable and weather-resistant design suitable for outdoor installation.
- Wide Operating Temperature: Operates effectively in temperatures ranging from -40°F to 140°F (-40° to 60°C) for versatile use.
- Power Options: Supports both DC12V±10% and PoE (802.3af) for flexible installation.
AVYCON AVC-NVP81F180 Detailed Camera Specifications
| Max. Resolution | 3840 x 2160 |
| IR Illumination Range | Up to 49 ft (15 m) |
| Lens Type | Fixed 1.68mm Lens |
| Output Frame Rate | 15fps @ 4K, 25fps @ 3200x1800 |
| Ingress Protection Rating | IP67 |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Power Supply | DC12V±10% / PoE (802.3af) |
| Smart Features | True Day & Night, Digital NR, ROI, HLC, True WDR, BLC |
SKU  | AVC-NVP81F180 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Avycon |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.68mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 4.2 in x 5 in (107mm x 127.2 mm) |
| Electronic Shutter | 1/100,000s ~ 1s |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.01lux @F1.2 or 0.012lux @F2.0 | BW: 0lux w IR ON |
| Operating Temperature | -40°~140° F (-40°~60° Celcius) |
| Power Consumption | ≤6W, 9W MAX (With IR on) |
| Privacy Zone | Supported |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | H180°/V86° |
| IR Distance | 15m/49ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
