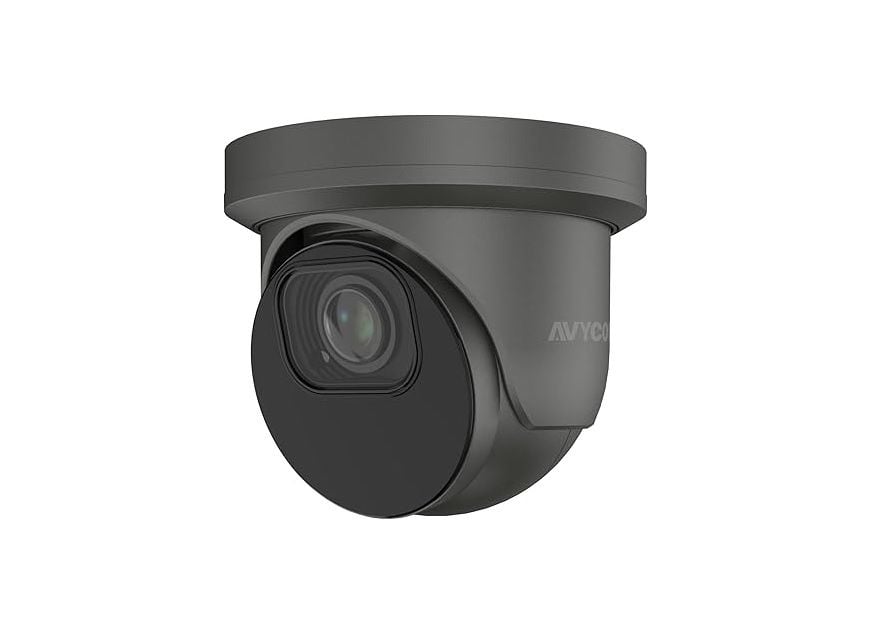

Avycon AVC-NSE81M-B 8 Megapixel Network IP Dome Camera with 2.7-13.5mm Lens, Black
SKU
AVC-NSE81M-B
Model No
AVC-NSE81M-B
$587.00
Product Highlights
- 8MP (3840x2160) @ 30fps
- Max. resolution: 3840x2160
- H.265+/H.265, H.264+/H.264, MJPEG Encoding
- Day & Night AUTO ICR
- 2.7~13.5mm Motorized Lens (F1.8(Wide) ~ 3.3(Tele))
Speak to an expert
Avycon AVC-NSE81M Camera Overview
The AVYCON AVC-NSE81M camera is a state-of-the-art 8MP H.265 Turret Network Camera that delivers superior performance in surveillance. It supports True Day and Night mode, enabling clear visibility in low-light conditions, and boasts PoE functionality for easy deployment. With its advanced Smart IR Illumination reaching up to 147 feet and Infinite Star sensor for color video capture in darkness, this camera is perfect for monitoring any environment. The motorized lens offers flexibility with autofocus capabilities, making it ideal for diverse applications.
Avycon AVC-NSE81M Camera Features
- 8MP Resolution: Experience crystal-clear images at 3840x2160 resolution, providing exceptional detail for security analysis.
- High Frame Rate: Records at 30fps for smooth video playback, ensuring no critical action is missed.
- Advanced Codec Support: Supports H.265+/H.265 and H.264+/H.264 for efficient storage and bandwidth usage without compromising quality.
- True Day & Night View: Day/Night AUTO ICR feature ensures seamless transition between day and night modes for all-day monitoring.
- Motorized Lens: The 2.7~13.5mm motorized lens allows for flexibility in installation and precise focusing, adapted to various surveillance needs.
- Intelligent Analytics: Built-in intelligent analytics provide enhanced surveillance capabilities for smart monitoring solutions.
- Built-in Storage: With a micro SD card slot supporting up to 512GB, it allows for efficient standalone recording.
- Durability: Rated IP67 for ingress protection, ensuring reliability in various weather conditions.
- Power Over Ethernet: Simplifies installation with DC12V/PoE power supply options.
- Remote Monitoring: Seamless integration with AVYCON ONE mobile app and AVYCON CMSONE CMS for instant access to live feeds.
Detailed Camera Specifications
| Camera Type | 8MP Turret Network Camera |
| Max Resolution | 3840x2160 |
| Frame Rate | 30fps |
| Lens | 2.7~13.5mm Motorized Lens (F1.8 ~ F3.3) |
| Day/Night Mode | AUTO ICR |
| Compression Formats | H.265+/H.265, H.264+/H.264, MJPEG |
| Storage | Micro SD card slot (up to 512GB) |
| Ingress Protection | IP67 |
| Power Supply | DC12V/PoE |
| Integration | AVYCON ONE Mobile App, AVYCON CMSONE CMS |
SKU  | AVC-NSE81M-B |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | AUTO |
| Dimensions (W x H) | Ø5x4.13in (Ø127x105mm) |
| Electronic Shutter | AUTO / Manual (1/5 ~ 1/20000s) |
| Image Device | 1/2.8" Progressive CMOS |
| Minimum Scene Illumination | Color: 0.009 lux @ F1.6 (AGC on) , B/W: 0 lux (IR LED on) |
| Operating Humidity | less than ≤ 95% RH |
| Operating Temperature | -31°~140°F (-35°~+60°C) |
| Power Consumption | Max. 5W (IR LED off), Max. 10W (IR LED on) |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal: 111°(W)~33°(T), Vertical: 57°(W)~18°(T), Diagonal: 134°(W)~37°(T) |
| Motion Detection Tracking | Rectangle Grid (8 Levels of Sensitivity) |
| Automatic White Balance | Auto/Manual |
| IR Distance | 45m/147ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
