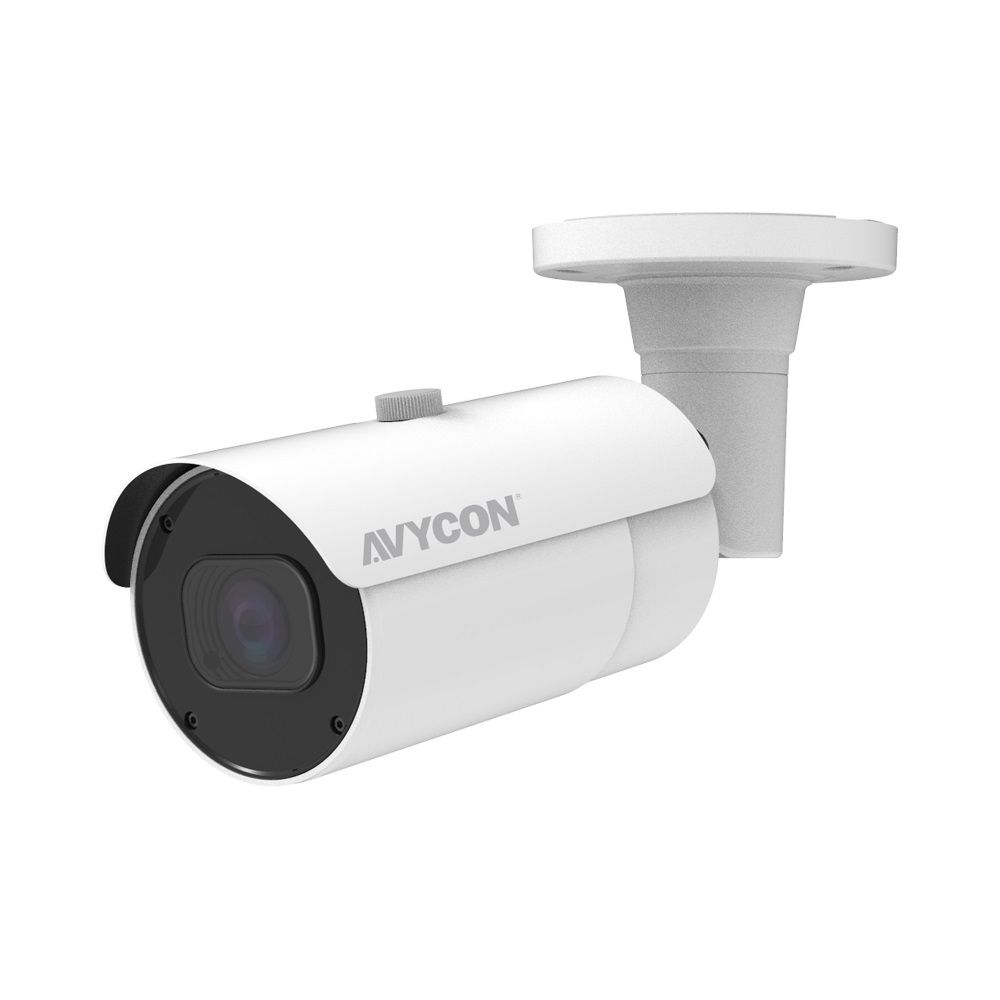

Avycon AVC-NSB81M50 8 Megapixel Network IP Bullet Camera with 5-50mm Lens, White
SKU
AVC-NSB81M50
Model No
AVC-NSB81M50
$845.00
Product Highlights
- 8MP (3840x2160) @ 30fps
- Max. resolution: 3840x2160
- H.265+/H.265, H.264+/H.264, MJPEG Encoding
- Day & Night AUTO ICR
- Motorized 5mm ~ 50mm Lens (F 2.0±5%)
Speak to an expert
Avycon AVC-NSB81M50 Camera Features
Designed for high-precision monitoring and surveillance. Featuring a 5-50mm varifocal lens, it provides flexible zoom capabilities, ensuring clear capture of license plates at various distances. With its IP67 weather-resistant rating, this camera is built to withstand harsh outdoor conditions, making it ideal for parking lots, entrances, or areas requiring vehicle identification. The AVC-NSB81M50 also supports advanced image processing technology, ensuring reliable performance in both day and night environments.
Features
- High Resolution: 8MP (3840x2160) @ 30fps for unsurpassed image clarity.
- Max. Resolution: Achieves resolutions up to 3840x2160 for excellent detail.
- Encoding Options: Supports H.265+/H.265, H.264+/H.264, MJPEG, ensuring efficient video compression without sacrificing quality.
- Day & Night Functionality: Auto ICR for clear images in varying light conditions.
- Zoom Lens: Motorized 5mm ~ 50mm lens (F 2.0±5%) allows for adjustable focal lengths suited for various environments.
- Advanced Image Processing: 3D DNR, WDR, HLC, BLC, and ROI encoding deliver superior image quality in challenging conditions.
- Intelligent Analytics: Provides smart features for enhanced monitoring capabilities.
- Storage Capacity: Built-in micro SD card slot supports video and still image capture up to 512GB.
- Audio Capture: Integrated microphone for audio recording alongside video.
- Weather Resistance: IP67 rating protects against dust and water for reliable outdoor use.
- Power Options: DC12V/PoE power supply for versatile installation.
- Remote Monitoring: Supports monitoring via AVYCON ONE Mobile App and AVYCON CMSONE CMS for flexible access.
Avycon AVC-NSB81M50 Detailed Specifications
| Resolution | 8MP (3840x2160) |
| Frame Rate | 30fps |
| Lens Type | Motorized 5mm ~ 50mm |
| Weather Rating | IP67 |
| Power Supply | DC12V/PoE |
| Storage | Supports micro SD card up to 512GB |
| Video Encoding | H.265+/H.265, H.264+/H.264, MJPEG |
| Audio | Built-in microphone |
| Monitoring App | AVYCON ONE (Mobile APP) |
SKU  | AVC-NSB81M50 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 5-50mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | AUTO |
| Dimensions (W x H) | Ø11.02x3.41in (Ø280x86.5mm) |
| Electronic Shutter | AUTO / Manual (1/5 ~ 1/20000s) |
| Image Device | 1/2.8" Progressive CMOS |
| Minimum Scene Illumination | Color: 0.009 lux @ F1.6 (AGC on) , B/W: 0 lux (IR LED on) |
| Operating Humidity | less than ≤ 95% RH |
| Operating Temperature | -31°~140°F (-35°~+60°C) |
| Power Consumption | Max. 8W (IR LED on) |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal: 49(W)7(T), Vertical:27(W)7(T), Diagonal:57(W)~8(T) |
| Motion Detection Tracking | Rectangle Grid (8 Levels of Sensitivity) |
| Automatic White Balance | Auto/Manual |
| IR Distance | 80m/262ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
