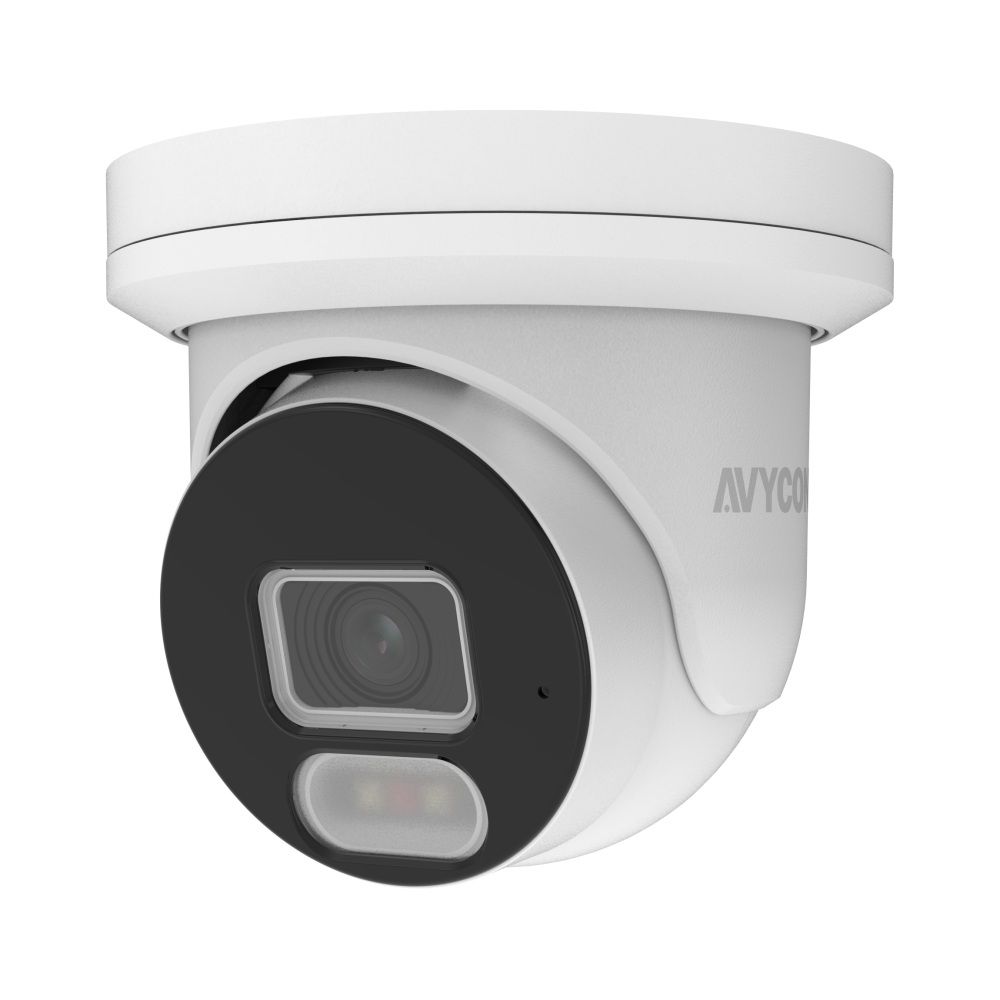

Avycon AVC-NBE81F28 8 Megapixel Outdoor Turret Network Camera with 2.8mm Lens, White
SKU
AVC-NBE81F28
Model No
AVC-NBE81F28
$220.00
Product Highlights
- 8MP (3840x2160) @15fps H.265/ H.254
- Full Color / IR Mode
- 2.8mm Fixed Lens (F1.6)
- 3D DNR, D-WDR
- Dual Light: White Light LED / Infrared LED
Speak to an expert
The AVC-NBE81F28 from Avycon is an advanced 8 megapixel dual light turret network camera designed to deliver exceptional video quality and versatility in various lighting conditions. It features cutting-edge AI capabilities for intelligent monitoring, ensuring comprehensive security for your premises.
Avycon AVC-NBE81F28 Camera Features
- High Resolution: 8 megapixel (3840x2160) @15fps H.265/H.264 technology for crystal-clear image clarity.
- Versatile Lighting: Full color and infrared mode to capture high-quality footage day or night.
- Optimum Lens: 2.8mm fixed lens (F1.6) offers a wide field of view for enhanced surveillance.
- Enhanced Image Processing: 3D DNR and D-WDR work together to ensure clear images in extremes of light.
- Dual Light Capability: Equipped with a White Light LED and Infrared LED for effective night vision.
- Audio Capabilities: Built-in microphone allows for audio recording alongside video feeds.
- Storage Expansion: Built-in Micro SD card slot supports up to 512GB for extensive local storage options.
- AI Security Features: Intrusion detection, tripwire counting, loitering detection, and region entrance/exiting detection provide advanced security alerts.
- Durable Design: IP67 ingress protection ensures resilience against dust and water exposure.
- Flexible Power Options: PoE and DC12V power supply compatibility for versatile installation settings.
- Remote Monitoring: Supports remote access via AVYCON ONE mobile app and AVYCON CMSONE CMS for convenient monitoring.
Avycon AVC-NBE81F28 Detailed Specifications
| Model | AVC-NBE81F28 |
| Resolution | 8 Megapixels (3840x2160) |
| Frame Rate | 15fps |
| Compression | H.265/H.264 |
| Lens | 2.8mm Fixed Lens (F1.6) |
| Light Modes | Full Color / IR Mode |
| Audio | Built-in Microphone |
| Micro SD Slot | Up to 512GB |
| AI Features | Intrusion Detection, Tripwire Counting, Loitering Detection |
| Ingress Protection | IP67 |
| Power Supply | PoE / DC12V |
SKU  | AVC-NBE81F28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 3.96 x 3.46in (100.5 x 87.9mm) |
| Electronic Shutter | 1/5 ~ 1/20000s |
| Image Device | 1/2.7" |
| Image Pixels-Effective | 8MP 3840(H)×2160(V) |
| IR LEDs | One |
| Minimum Scene Illumination | Color 0.009lux @ F1.6 (AGC ON) ; B/W 0 lux @ IR ON |
| Operating Humidity | less than < 90% RH |
| Operating Temperature | -31~140F(-35~+60°C |
| Privacy Zone | Max 5.6W, Max 7.2W |
| S/N Ratio | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP,SMTP, NTP, HTTPS |
| Scanning Vertical | Progressive CMOS |
| Zoom Ratio | IP67 |
| Mirror | 3D DNR |
| Back Light Compensation | Horizontal: 110°, Vertical: 58°, Diagonal: 133° |
| Automatic White Balance | Smart Motion Detection (Pedestrian & Vehicle Detection) |
| IR Distance | 25m/82ft |
| Audio | Yes |
| Auto Gain Control | Auto/Manual |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
