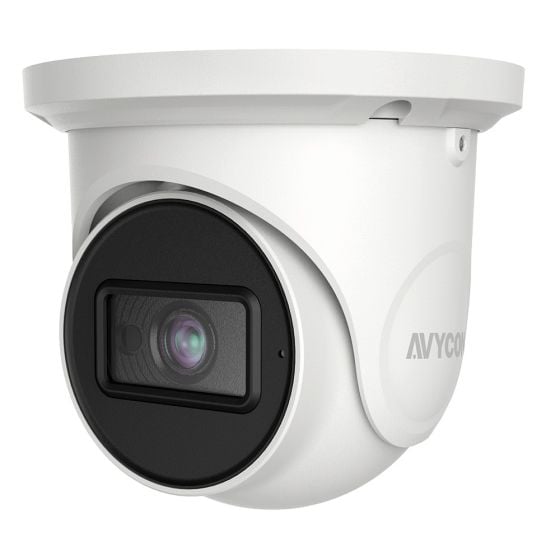

Avycon AVC-ELN41FT-2-8 4 Megapixel Network Outdoor IR Dome Camera with 2.8mm Lens
SKU
AVC-ELN41FT-2-8
Model No
AVC-ELN41FT/2.8
$396.00
Product Highlights
- H.265 /H.264/MJPEG coding
- Max.resolution: 4MP ( 2560 x 1440)
- ICR Auto Switch, True day / Night Vision
- 3D DNR, WDR, HLC, BLC, Smart IR, etc.
- Up to 100ft IR Night View Distance
Speak to an expert
The AVC-ELN41FT/2.8 is our 4MP Network IR Eyeball Camera with a2.8mm fixed lens and featuring our newest generation of video analytics. This camera supports True Day/Night mode, True WDR capabilities and also includes a microSD memory card slot for standalone recording applications. The AVC-ELN41FT_2.8 can be powered by both PoE(802.3af) and DC12V and also includes a hardware reset button.
Features
- H.265/H.264/MJPEG Coding: Efficient video compression that reduces bandwidth and storage requirements.
- Max. Resolution: 4MP (2560 x 1440) for clear and detailed images.
- ICR Auto Switch, True Day/Night Vision: Provides high-quality imaging in various lighting conditions.
- 3D DNR, WDR, HLC, BLC, Smart IR: Advanced image enhancement features for superb clarity and contrast.
- Up to 100ft IR Night View Distance: Ensures visibility in complete darkness, enhancing security.
- Built-in micro SD Card Slot: Supports up to 256GB for local video storage without the need for a network connection.
- 1CH Built-in MIC; 1CH Audio Input: Enables audio recording and monitoring for comprehensive surveillance.
- DC12V/PoE Power Supply: Flexible powering options for easy installation.
- IP67 Ingress Protection: Weatherproof design for reliable outdoor use.
- Support Three Streams: Allows for versatile streaming options to fit different bandwidths.
- Remote Monitoring: Access live video streams via smartphones & tablet PCs with iOS and Android OS.
- Intelligent Analytics: Offers enhanced detection features to improve safety and security.
- NDAA Compliant: Meets the U.S. government's standards for security and safety.
Avycon AVC-ELN41FT-2-8 Detailed Specifications
| Model | AVC-ELN41FT-2-8 |
| Camera Type | Network OutDoor IR Dome Camera |
| Resolution | 4 Megapixels (2560 x 1440) |
| Lens | 2.8mm Fixed Lens |
| Power Supply | DC12V/PoE (802.3af) |
| IR Night Vision | Up to 100ft |
| Storage | MicroSD Slot (up to 256GB) |
| Audio Support | 1CH built-in MIC; 1CH audio input |
| Ingress Protection | IP67 |
| Video Compression | H.265 / H.264 / MJPEG |
| Smart Features | True Day/Night, WDR, DNR |
| Remote Access | iOS and Android compatibility |
| Compliance | NDAA Compliant |
SKU  | AVC-ELN41FT-2-8 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Mirror, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 3.8 × 4.3 |
| Electronic Shutter | 1/2s to 1/100,000s |
| Image Device | 1/3” Progressive Scan CMOS |
| Minimum Scene Illumination | 0.05 [email protected], AGC ON; 0 lux with IR |
| Operating Humidity | less than 95% (non-condensing) |
| Operating Temperature | - 30 °C ~ 60 °C (-22°F~140°F) |
| Power Consumption | < 5W |
| Protocols | UDP, IPv4, IPv6,DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS |
| Weatherproof | IP67 |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
