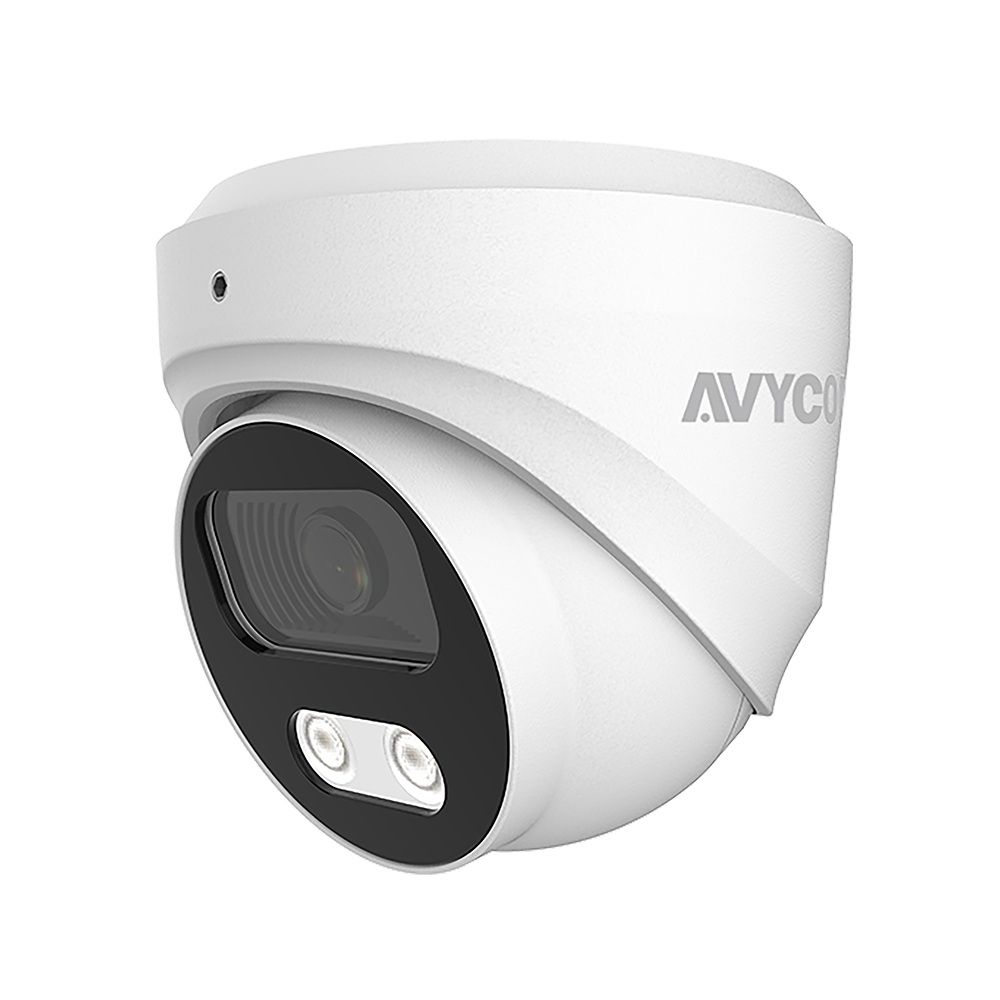

Avycon AVC-EIPT51F28 5 Megapixel Outdoor Turret Network Camera with 2.8mm Lens, White
SKU
AVC-EIPT51F28
Model No
AVC-EIPT51F28
$131.00
Product Highlights
- 5MP @ 30fps
- Max. resolution: 2592x1944
- Supports H.265 / H.264 Video Compression
- 2.8mm Fixed Focal Lens
- Smart IR 131ft(40m), warm light 98ft(30m)
Speak to an expert
The AVC-EIPT51F28 from Avycon is a 5 megapixel Evo Series outdoor fixed turret network camera, offering exceptional imaging capabilities and advanced functionalities for superior surveillance. With high-resolution video and innovative features, this camera ensures reliable performance in diverse environments.
Key Features
- 5 Megapixel Resolution: Provides crystal clear images at 30fps, ensuring that every detail is captured.
- Max Resolution: 2592x1944, allowing for high-quality video output suitable for various applications.
- Video Compression: Supports H.265 / H.264, enabling efficient bandwidth usage while maintaining video quality.
- 2.8mm Fixed Focal Lens: Offers a suitable field of view for monitoring expansive areas.
- Smart IR Technology: Features a range of 131ft (40m) with warm light up to 98ft (30m), ensuring effective night-time visibility.
- Day & Night Functionality: Color/B&W (IR-CUT) operation adapts automatically to lighting conditions.
- Advanced Encoding Features: Includes 3D DNR, WDR, ROI, HLC, and BLC for improved image quality in challenging light conditions.
- Intelligent Analytics: Enhances surveillance capabilities with smart detection options.
- Built-in Microphone: Captures audio alongside video for comprehensive monitoring.
- Power Over Ethernet (PoE): Complies with IEEE802.3af / DC12V±10%, 700mA, simplifying installation.
- IP67 Ingress Protection: Offers weatherproof protection, making it suitable for outdoor use in various climates.
Avycon AVC-EIPT51F28 Detailed Specifications
| Camera Type | Outdoor Fixed Turret Network Camera |
| Image Sensor | 5 Megapixel |
| Resolution | 2592x1944 |
| Frame Rate | 30fps |
| Lens | 2.8mm Fixed |
| Infrared Range | 131ft (40m) Smart IR |
| Warm Light Range | 98ft (30m) |
| Video Compression | H.265 / H.264 |
| Power Supply | PoE IEEE802.3af / DC12V±10%, 700mA |
| Ingress Protection | IP67 |
SKU  | AVC-EIPT51F28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Avycon |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø3.78x3.58in (Ø96.0x91.0mm) |
| Electronic Shutter | Auto: 1/3 - 1/100,000s |
| Image Device | 1/2.8" SONY Starvis Back-illuminated CMOS |
| Minimum Scene Illumination | Color: 0.006 Lux @ F1.6 (AGC ON), B/W: 0 Lux with IR |
| Operating Humidity | less than ≤ 95% RH |
| Operating Temperature | -4°~140°F (-20°~60°C) |
| Protocols | 3 Rectangular Zone |
| S/N Ratio | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| Scanning Horizontal | 60dB |
| Scanning Vertical | Progressive |
| Weatherproof | Network |
| Zoom Ratio | IP67 |
| Automatic White Balance | Supported (Enables the detection based on Human Movement only) |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
