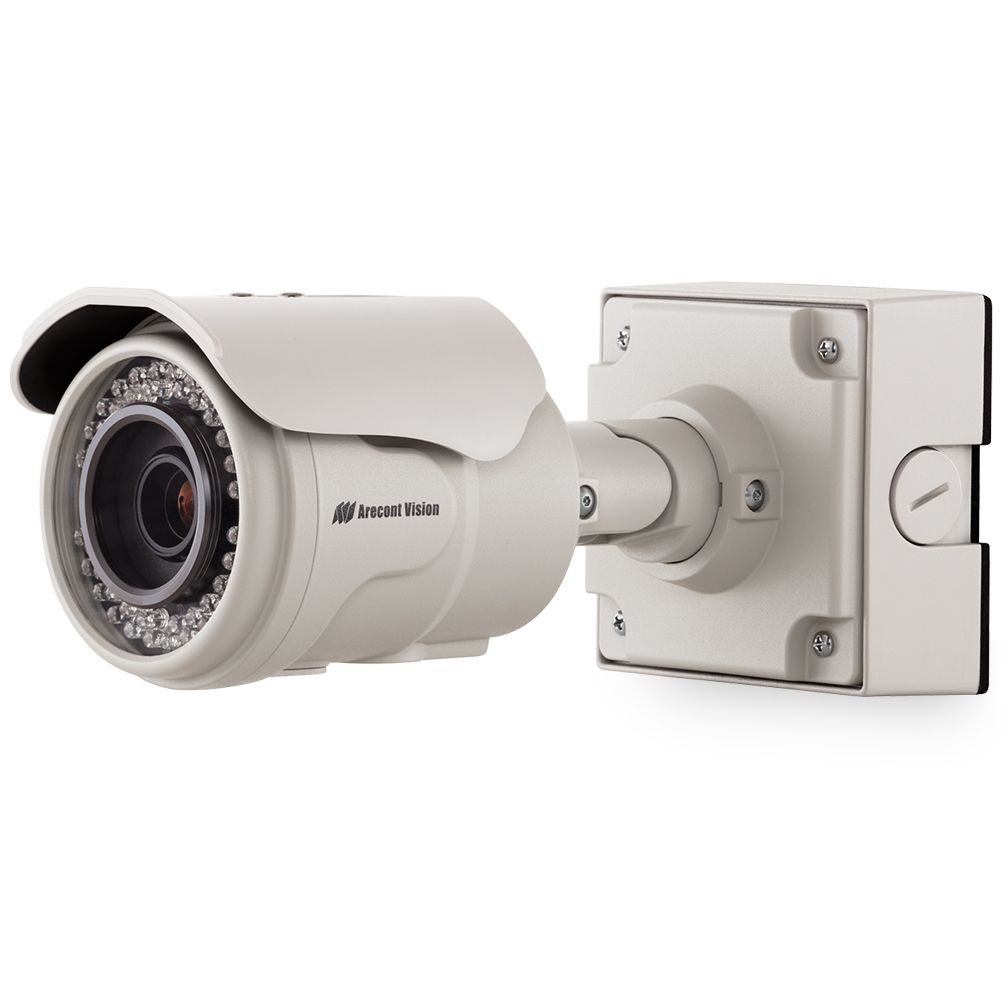

Arecont Vision AV5225PMIR 5 Megapixel IR Bullet IP Camera
- All-in-One H.264 Cylindrical (Bullet-Style) Solution
- Remote Focus/Zoom with P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- IP66 Vandal-Resistant Housing
- Total PoE Solution (No External Power Required for IR LEDs)
The AV5225 MegaView® 2 series network camera is part of Arecont Vision’s full line of H.264 MegaView® cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides 2592 x 1944 megapixel resolution at full video frame rates of 14 frames per second (fps). The AV5225 camera line provides an all-in-one solution with integrated 5 megapixel camera, IR illuminator, remote focus, remote zoom, p-iris IR corrected lens and vandal resistant aluminum cylindrical (Bullet-style) enclosure with IP66 weatherproofing standard.
With the features of ONVIF Profile S, PSIA conformance, binning mode, privacy mask, extended motion detection and flexible cropping, the AV5225 is a high sensitivity, PoE (IEEE 802.3af) compliant Day/Night camera w/ IR illuminator. Built with Arecont Vision’s massively-parallel MegaVideo® processing technology, this camera offers more than 16-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor/outdoor applications.
Features
- All-in-One H.264 Cylindrical (Bullet-Style) Solution
- Remote Focus/Zoom with P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- IP66 Vandal-Resistant Housing
- Total PoE Solution (No External Power Required for IR LEDs)
- User-Friendly Webpage
- Easily Adjustable 3-Axis Wall Mount, Junction Box Included
- Dual Encoder H.264/MJPEG
- ONVIF Profile S, PSIA Conformance
- IR LEDs
- Binning Mode for Strong Low-Light Performance
- Privacy Mask, Motion Detection, Flexible Cropping and Forensic Zooming
- True Day/Night Functionality with Mechanical IR Cut Filter
SKU  | AV5225PMIR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.6-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12-48vDC, 24vAC, PoE |
| Dimensions (W x H) | 7.1" H (180mm) x 7.1" W (180mm) x 13.5" D (342.9mm) |
| Image Device | 1/2.5" CMOS |
| IR LEDs | 48 pcs |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color (Day Mode): 0.3 Lux, Color Binning (Day Mode): 0.15 Lux, B/W (Night Mode): 0 Lux, IR sensitive |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Power Consumption | 12.5 Watts DC power |
| Privacy Zone | up to 1024 detection zones |
| Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP |
| S/N Ratio | 45dB |
| Weatherproof | IP66 |
| Angle of View | 96°–36° |
| Motion Detection Tracking | Up to 1024 detection zones |
| Automatic White Balance | Auto multi-matrix |
| IR Distance | 100 ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
