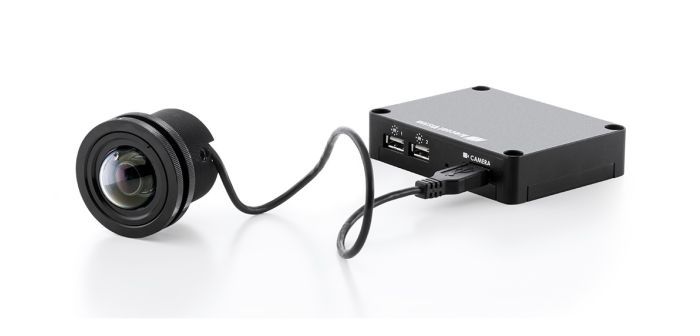

Arecont Vision AV5195DN 5 Megapixel Day/Night Indoor Tethered IP Camera, 2.8mm Lens

SKU
AV5195DN
Model No
AV5195DN
$590.67
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5 Megapixel Model
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Enhanced WDR up to 100dB at Full Resolution Available on Select 1080p and 3MP Models
  • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Dual Encoder H.264/MJPEG

The Arecont Vision AV5195DN is a state-of-the-art 5 Megapixel Day/Night Indoor Tethered IP Camera designed for discrete and flexible security solutions. It boasts cutting-edge features such as SNAPstream technology for reduced bandwidth, Enhanced WDR for superior image quality in challenging lighting conditions, and exceptional low-light capabilities suitable for a variety of environments. With an easy installation process and the ability to connect the camera unit and sensor via USB cable up to 40 feet away, this compact camera is perfect for diverse indoor surveillance needs.

Arecont Vision AV5195DN Camera Features

  • 5 Megapixel Model: Provides high-resolution video, ensuring detailed imagery for reliable surveillance.
  • USB Connectivity: Camera sensor unit and main unit can be connected with a high-quality USB cable up to 40ft (12m), offering flexible installation options.
  • SNAPstream Technology: Reduces bandwidth usage without compromising image quality, enhancing efficiency in data transmission.
  • NightView Performance: Exceptional low light performance with NightView for 1.2MP models, useful for low-light applications.
  • True Day/Night Functionality: Mechanical IR cut filter ensures accurate color reproduction day and night.
  • Enhanced WDR: Up to 100dB at full resolution on select models helps manage bright or over-saturated lighting conditions.
  • CorridorView: 90° image rotation capability provides better coverage in narrow hallways and corridors.
  • Dual Encoder: H.264/MJPEG support affords versatility in transmission formats.
  • Remote Focus: Module in camera sensor unit facilitates easy focus adjustment without manual intervention.
  • Versatile Features: Includes privacy mask, motion detection, and forensic zooming for advanced surveillance capabilities.
  • Multiple Lens Options: Flexibility to choose from various lens options (sold separately) for specific needs.
  • Network Protocols: Supports advanced network protocols such as IPv6 and DHCP, ensuring compatibility with modern systems.
  • Total PoE Solution: All-in-one power solution via Power over Ethernet simplifies installation with fewer cables.
  • Compact Design: Ultra-low profile and small size make it suitable for discrete applications.
  • Optional IR LED Units: Connect a maximum of two optional IR LEDs to enhance night vision capabilities.
  • SDHC Card Slot: Onboard storage option with SDHC card slot provides additional backup of critical recordings.
  • IK-10 Housing: Impact-resistant housing protects against vandalism and harsh environments.
  • Water Resistant: Designed to withstand water exposure from the front of the sensor unit and IR units.
  • Vibration and Shock Resistance: Complies with EN61373 standards for added durability in challenging environments.

Arecont Vision AV5195DN Detailed Camera Specifications

ModelAV5195DN
Megapixels5 MP
Lens Type2.8mm Fixed Lens
Day/Night FunctionalityTrue Day/Night with Mechanical IR Cut Filter
SNAPstreamSmart Noise Adaptation and Processing
Enhanced WDRUp to 100dB (Select Models)
NightView CapabilityAvailable for 1.2MP Models
ConnectivityUSB, PoE
Storage OptionSDHC Card Slot
Impact ResistanceIK-10 Rated
Water ResistanceFront Sensor and IR Unit
Vibration & Shock ResistanceEN61373 Compliant
SKU  AV5195DN
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    5 Megapixel
Lens Type    Fixed
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  12-48vDC, 24vAC
Dimensions (W x H)  0.94" H (24mm) x 3.23" W (82mm) x 4.09" L (104mm)
Electronic Shutter    Controls motion blur, 1ms–500ms
Image Device    1/2.5" CMOS Sensor
Minimum Scene Illumination  Color (Day Mode): 0.3 Lux, Color Binning (Day Mode): 0.15 Lux, B/W (Night Mode): 0.03 Lux, IR sensitive
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -20°C (-4°F) to +50°C (122°F)
Power Consumption  10.5W DC power max
Privacy Zone    Unlimited
Protocols  HTTP, IPv4, IPv6, QoS, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Angle of View    H-FOV: 113°
Rotation Angle90°, 180°, and 270° image rotation
Motion Detection Tracking    Real-time, 1024 detection zones
Back Light Compensation  Custom white balance
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
