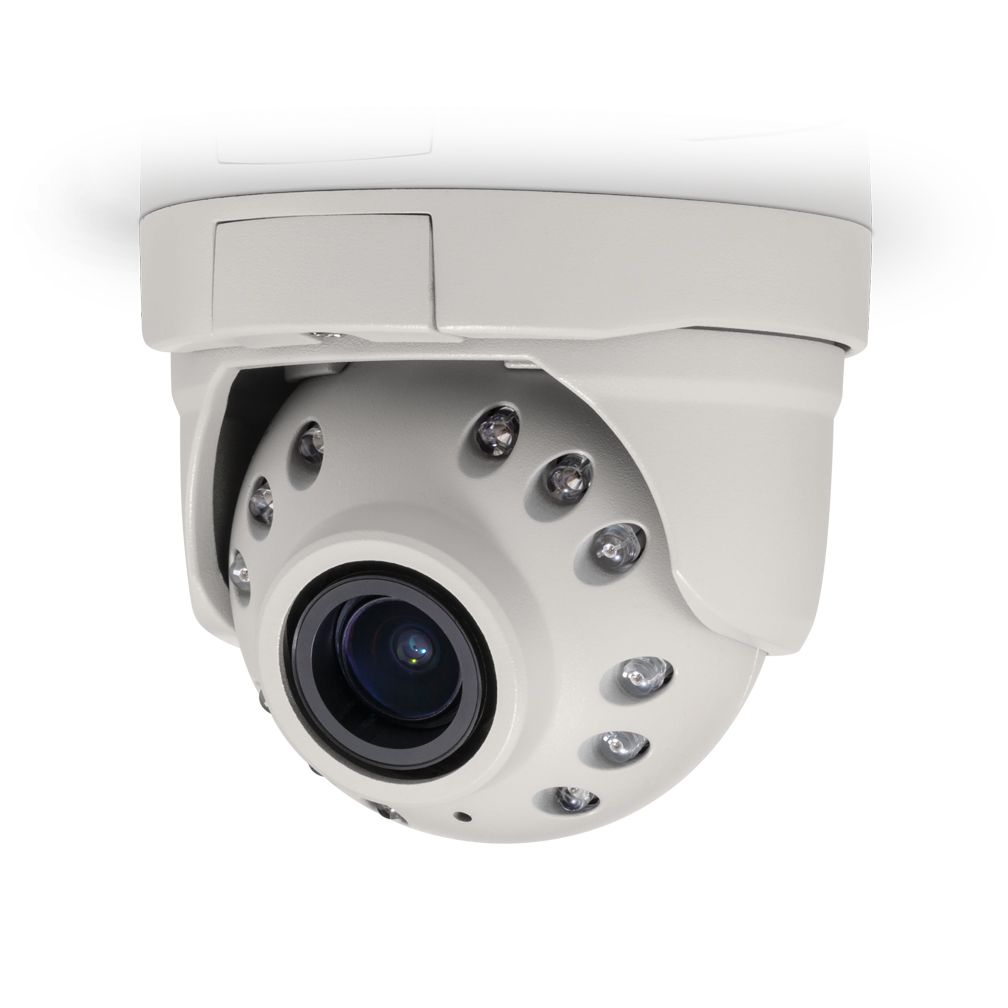

Arecont Vision AV3246PMIR-SBA-LG 3 Megapixel Day/Night IP IR Dome Camera, 2.8-8.5mm

SKU
AV3246PMIR-SBA-LG
Model No
AV3246PMIR-SBA-LG
$640.64
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 3MP Resolution
  • 2.8-8.5mm P-iris Lens
  • Remote Focus/Zoom
  • True Day/Night
  • Wide Dynamic Range

The AV3246PMIR-SBA-LG fuses optimum performance with outstanding aesthetics. These stylish indoor cameras feature a 3 Megapixel resolution. Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. It combines a day/night mechanical IR cut filter with an integrated P-iris lens for precise, optimal image quality. For applications with poor lighting conditions optional wide dynamic range is available on some 3 Megapixel models. MegaBall G2 IR models are integrated with an Adjustable Infrared Illuminator, providing clear images in extreme, low-light scenes. Infrared camera models offer the ability to manually adjust the IR's level of intensity, providing the flexibility to ensure the scene is illuminated uniformly. The camera's interface allows for an intuitive, fast, and easy configuration; while the Free AV IP Utility tool allows users to quickly configure multiple cameras at one time. It is ONVIF Profile S (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) compliant, providing interoperability between network video products regardless of manufacturer.

Arecont Vision AV3246PMIR-SBA-LG Camera Features

  • 3MP Resolution: Delivers high-quality imagery, helping identify details effectively in various lighting conditions.
  • 2.8-8.5mm P-iris Lens: Ensures precise focus for optimal image clarity across different distances.
  • Remote Focus/Zoom: Allows for adjustments from a distance, making installation and modifications easier.
  • True Day/Night: Equipped with a mechanical IR cut filter for outstanding performance in both day and night settings.
  • Wide Dynamic Range: Enhances image quality in high-contrast lighting, ensuring visibility in challenging conditions.
  • Adjustable IR 15m (50ft): Provides flexibility to illuminate scenes uniformly, crucial for low-light situations.
  • Audio: Allows for two-way audio functionality, enhancing surveillance capabilities.
  • SD Card Slot: Enables local storage options for recorded footage, providing added security.
  • Indoor Rated: Specifically designed for indoor use, ensuring durability and performance in controlled environments.
  • Power Over Ethernet: Simplifies installation by providing power and data through a single cable, reducing complexity.

Arecont Vision AV3246PMIR-SBA-LG Detailed Camera Specifications

Camera Resolution3 Megapixels
Lens TypeP-iris, 2.8-8.5mm
IR RangeUp to 15m (50ft)
Dynamic RangeWide Dynamic Range available
Day/Night FunctionalityTrue Day/Night with mechanical IR cut filter
Audio CapabilitiesSupported
Storage OptionsSD Card Slot available
Installation TypeIndoor
ConnectivityPower Over Ethernet (PoE)
InteroperabilityONVIF Profile S, PSIA compliant
SKU  AV3246PMIR-SBA-LG
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.8-8.5mm
Mount Type  Ceiling, Wall
Compression Method    M-JPEG
Durability    Indoor
Voltage  PoE
Dimensions (W x H)  Ø 3.93" (100mm) x 3.24" H (87mm)
Electronic Shutter    Controls motion blur
Image Device    1/3.2" Image Sensor
IR LEDs  12
IR Wavelength  850nm
Minimum Scene Illumination  Color (Day Mode): 0.3 LuxColor Binning (Day Mode): 0.15 LuxB/W (Night Mode): 0 Lux, IR sensitive
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -5°C (-23°F) to +50°C (122°F)
Power Consumption  9.4 W
Protocols  RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS
Digital Noise Reduction    Low light noise filter control
Angle of View    94° – 32°
Rotation Angle90°
Motion Detection Tracking    Real-time, Privacy mask, 1024 detection zones
Back Light Compensation  Auto multi-matrix white balance
IR Distance  15m/50ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
