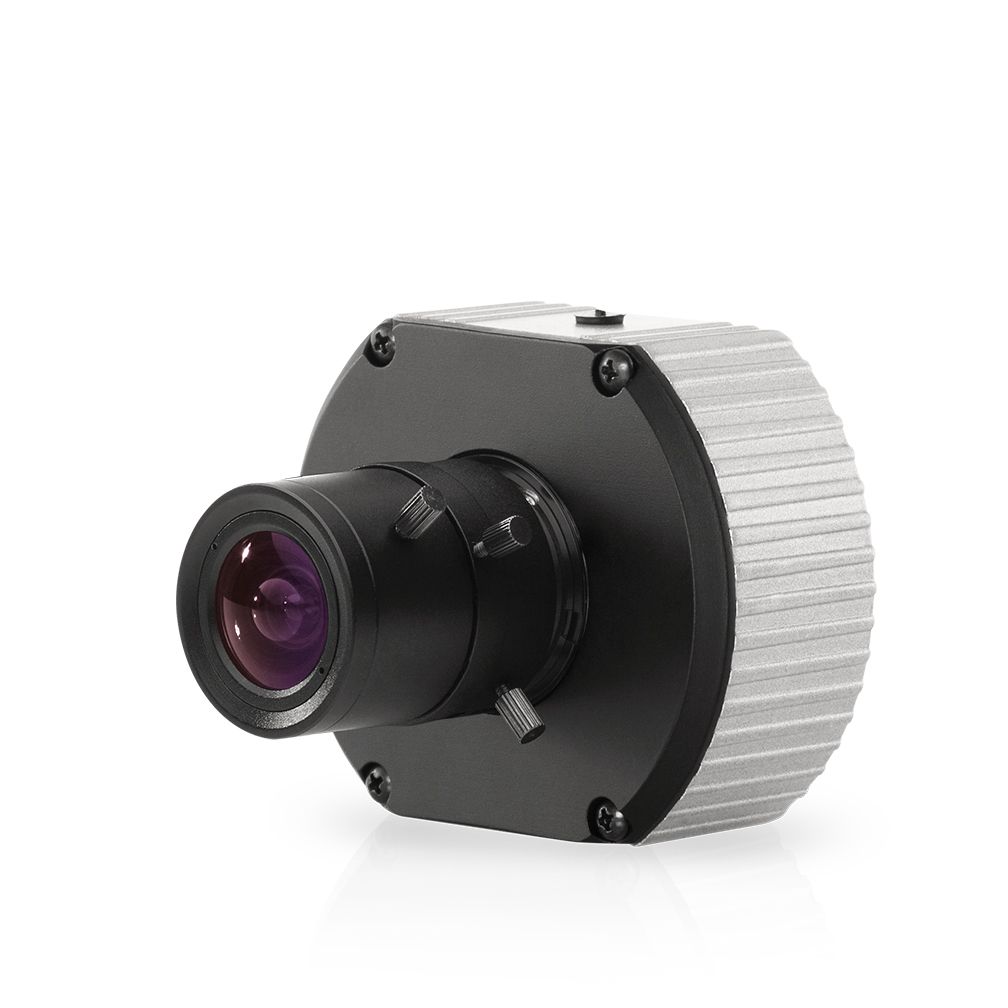

Arecont Vision AV3115DNAIv1 3 Megapixel Network Indoor Box Camera

SKU
AV3115DNAIv1
Model No
AV3115DNAIv1
$418.32
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • Dual Encoder H.264 (MPEG Part 10) and MJPEG
  • Fastest MegaPixel Image Rates 21 fps
  • PSIA Compliance
  • Extended Motion Detection Grid and Privacy Mask
  • Multi-Streaming, Bit Rate Control and Flexible Cropping

Introducing the Arecont Vision AV3115DNAIv1, a cutting-edge 3 Megapixel Network Indoor Box Camera that combines superior image quality with advanced features tailored for versatility and performance. This camera delivers high-resolution imagery at 21 frames per second and supports both H.264 and MJPEG formats, ensuring maximum compatibility and efficiency for various surveillance applications.

Arecont Vision AV3115DNAIv1 Camera Features

  • Dual Encoder: Supports H.264 (MPEG Part 10) and MJPEG, providing flexibility in video encoding and storage options.
  • Fast Frame Rate: Achieves 21 fps at full resolution, capturing smooth, high-quality video for effective monitoring.
  • PSIA Compliance: Ensures compatibility with various IP surveillance systems for seamless integration.
  • Extended Motion Detection: Features a customizable detection grid and privacy mask for optimized security coverage.
  • Multi-Streaming Capability: Offers bit rate control and flexible cropping, allowing tailored video streams for different applications.
  • Forensic Zooming: Enables detailed examinations of captured footage without sacrificing image quality.
  • Cost Efficiency: Designed to meet budget considerations without compromising on essential features and performance.
  • Compact Design: Space-saving form factor suitable for a variety of indoor installation settings.
  • Flexible Power Options: Supports PoE and auxiliary power from 12-48 VDC / 24 VAC for versatile installation.
  • Auto Iris Technology: Optimizes lens opening for varying lighting conditions, enhancing image clarity.
  • Binned Mode: Increases low-light performance to ensure effective surveillance in challenging light environments.
  • Cost Sensitive Market Address: Tailored for the H.264 market where affordability and high performance are essential.

Arecont Vision AV3115DNAIv1 Detailed Camera Specifications

FeatureDetails
Resolution3 Megapixels (2048x1536)
Frame Rate21 fps
Encoding FormatsH.264/MJPEG
Power OptionsPoE, 12-48 VDC / 24 VAC
DimensionsCompact dimensions for easy installation
Motion DetectionExtended grid and privacy masking features
Auto IrisIncluded for variable light conditions
Video StreamingMulti-streaming with flexible bit rate control
Market FocusCost-sensitive markets looking for high-quality solutions
SKU  AV3115DNAIv1
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking
Manufacturer  Arecont Vision
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    3 Megapixel
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12-48vDC, 24vAC, PoE
Dimensions (W x H)  3" W (76mm) x 2.5" H (63.5mm) x 1.25" D (31.7mm)
Image Device    1/2.5" CMOS
Minimum Scene Illumination  0 Lux, IR sensitive
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -5°C (23°F) to +50°C (122°F)
Power Consumption  5.59 Watts maximum
Privacy Zone    1024-Zone
Protocols  RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP
S/N Ratio  45 dB
Video Output    RJ-45
Rotation Angle180°
Motion Detection Tracking    1024-Zone
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
ONVIF  Yes
