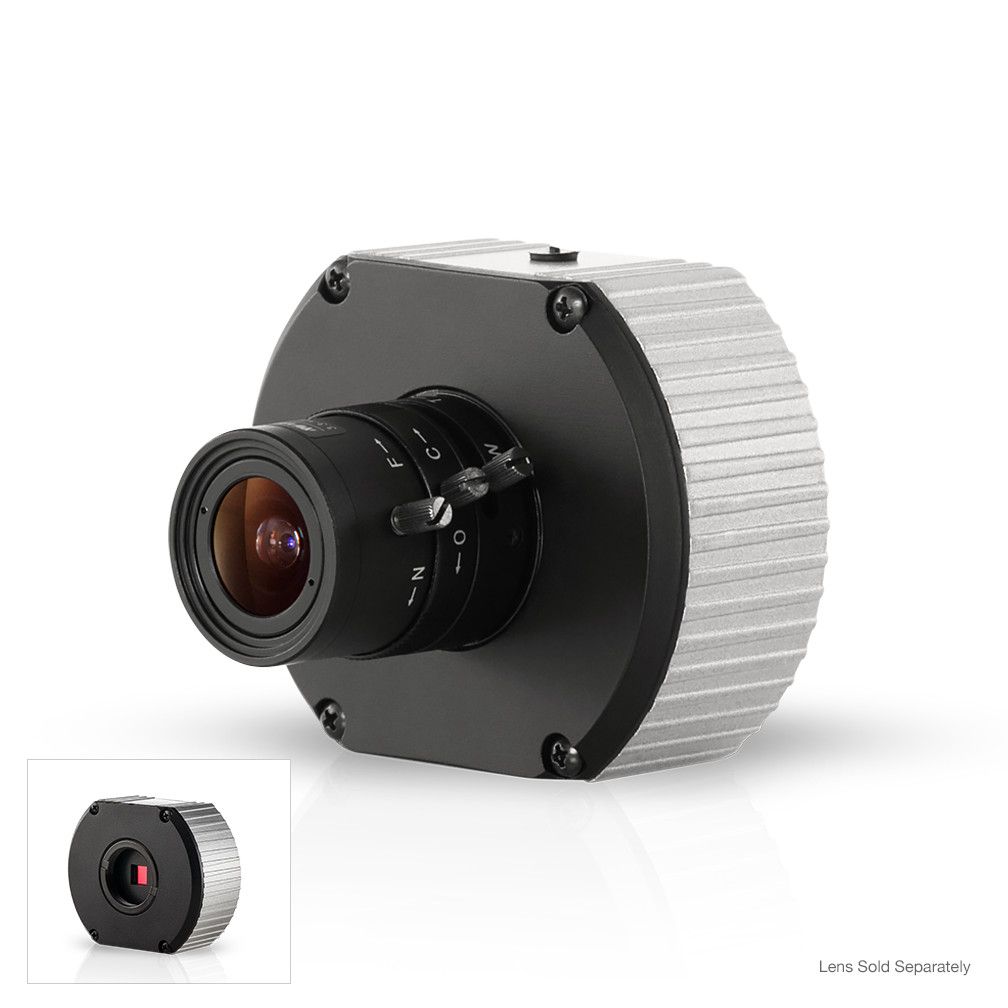

Arecont Vision AV2216DN 2 Megapixel True Day/Night Indoor Network IP Box Camera

SKU
AV2216DN
Arecont Vision AV2216DN 2 Megapixel True Day/Night Indoor Network IP Box Camera AV2216DN by Arecont Vision
Arecont Vision AV2216DN 2 Megapixel True Day/Night Indoor Network IP Box Camera AV2216DN by Arecont Vision
Model No
AV2216DN
$267.57
Qty:
Product Highlights
    • 1080p Models
    • P-Iris Control for Best Depth of Field and Image Clarity
    • SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
    • Enhanced WDR™ up to 100dB at Full Resolution Available on Select 1080p and 3MP Models
    • True Day/Night Functionality with Mechanical IR Cut Filter

The AV2216DN from Arecont Vision is a 1080p Megapixel (MP) H.264 True Day/Night Indoor Box-Style Compact IP Cameras with SNAPstream (Smart Noise Adaptation and Processing), Enhanced WDR (Wide Dynamic Range), and STELLAR (Spatio Temporal Low Light Architecture) Models. The MegaVideo G5 multi-megapixel, indoor compact camera series delivers 1.2-, 1080p, 3-, 5-, or 10-megapixel resolutions (lens sold separately). Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. The series combines a day/night mechanical IR cut filter with an optional P-iris lens on "PM" models for precise, optimal image quality. For applications with poor lighting conditions due to strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, optional Enhanced WDR wide dynamic range is available on select 1080p and 3MP models.

Select 1080p models provide 30 images-per-second for optimum performance in fast action scenes such as casino and banking applications. For challenging low-light applications, the 1.2MP STELLAR model offers best-in-class light. sensitivity capturing details in extreme low-light (0.002 lux in monochrome) at an incredibly high frame rate of 37 frames per second. The SD card slot on "-S" models supports up to 32GB of storage capacity for convenient onboard storage. MegaVideo G5 features SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. The camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or with power from a 12–48V DC/24V AC power supply. The camera's interface allows for an intuitive, fast, and easy configuration. The MegaVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.

Features

  • 1080p Models
  • P-Iris Control for Best Depth of Field and Image Clarity
  • SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  • Enhanced WDR up to 100dB at Full Resolution Available on Select 1080p and 3MP Models
  • STELLAR (Spatio Temporal Low Light Architecture) Reduces Motion Blur, Noise and Storage Requirements, While Enhancing Contrast and Allowing Color Imaging in Near Complete Darkness on 1.2MP Models
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Binning Mode for Strong Low Light Performance on 3MP, 5MP, and 10MP Models
  • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Casino Mode Guarantees Continuous 30fps Frame Rate Required by Gaming Industry Regulations on Select 1080p Models
  • Dual Mode Allows 10MP Models to Switch Between 10MP and 1080p
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
  • Non-Integer Scaling for 1080p and Higher Megapixel Resolution Models (-S models)
  • Dual Encoder H.264/MJPEG
  • Network Protocols Include HTTPS† , 802.1x, DHCP, QoS, IPv6, and More
  • PoE and Auxiliary Power: 12–48V DC/24V AC
  • SDHC Card Slot for Onboard Storage (-S models)
  • Many Lenses to Choose From Including Remote Focus/Zoom Motorized P-Iris Lenses (Sold Separately)
  • Small Size for Flexible Mounting Options
  • Use with Arecont Vision Housings, or as a Standalone Camera
SKU  AV2216DN
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Arecont Vision
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   Non Infrared
Resolution   2 Megapixel
Mount Type  Bracket Required
Compression Method   H.264, MPEG-4, M-JPEG
Durability   Indoor
Voltage  12-48vDC, 24vAC, PoE
Dimensions (W x H)  3" W (76mm) x 1.25" D (31.7mm) x 2.5" H (63.5mm) (w/o lens)
Electronic Shutter   Controls motion blur, 1ms–500ms
Image Device   1/3.2" CMOS Image Sensor
Minimum Scene Illumination  Color (Day Mode): 0.2 Lux, B/W (Night Mode): 0.02 Lux IR sensitive
Operating Humidity   0% to 90% (non-condensing)
Operating Temperature   -5°C (23°F) to +50°C (122°F), -5°C (23°F) to +40°C (104°F) in D4SO-3 housings
Power Consumption  6.0 Watts DC power
Privacy Zone   Unlimited
Protocols  IPv4, IPv6, HTTP, HTTPS*, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
S/N Ratio  49dB
Rotation Angle 180° image flip or CorridorView™ (90°, 180°, and 270° image rotation)
Motion Detection Tracking   Real-time, 1024 detection zones
Back Light Compensation  Auto multi-matrix white balance
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Back Light Compensation   Yes
Motion Detection Tracking   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
