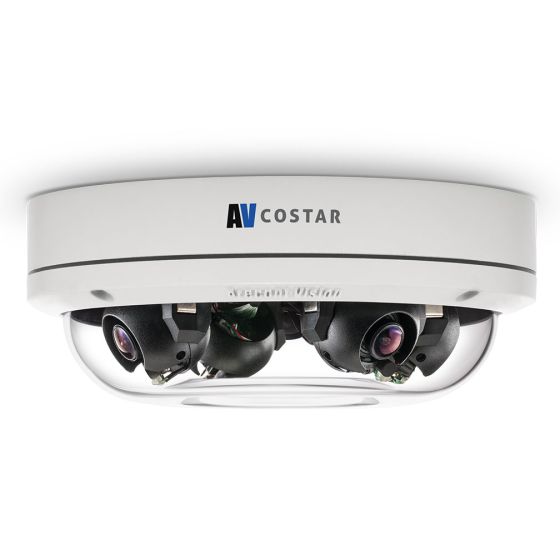

Arecont Vision AV20576DN-28 20 Megapixel Network Outdoor Dome Camera with 2.8mm Lens

SKU
AV20576DN-28
Model No
AV20576DN-28
$1,518.72
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • 20MP Resolution
  • 4 x 2.8mm Lenses
  • Remote Focus
  • 3-Axis Gimbal – Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Multiple Lens Options in a Single Camera Housing

The Arecont Vision AV20576DN-28 is a state-of-the-art 20 Megapixel Network Outdoor Dome Camera designed for robust video surveillance in diverse environments. With advanced features like a flexible multi-sensor platform, superior night vision capabilities, and high-resolution imaging, it ensures comprehensive coverage for any security need while being adaptable to future changes. The camera's modular design allows for easy installation and customization, making it a cost-effective solution for both small organizations and large enterprises.

Key Features

  • 20MP Resolution: Offers ultra-high-definition video quality, ensuring clear images even in extensive areas.
  • 4 x 2.8mm Lenses: Enables comprehensive surveillance with wide-angle coverage from a single unit.
  • Remote Focus: Facilitates quick adjustments to focus, enhancing user convenience.
  • 3-Axis Gimbal: Allows precise sensor positioning for customized coverage; can rotate around the 360° track.
  • Multiple Lens Options: Supports interchangeable lenses in one housing for varied field-of-view customization.
  • SNAPstream+™ Compression Algorithm: Minimizes bandwidth usage without sacrificing image quality, optimizing performance and storage.
  • Night View™: Ensures effective low light performance for clear nighttime surveillance.
  • True Day/Night Functionality: Equipped with a mechanical IR cut filter for accurate color representation day and night.
  • On-Screen Display (OSD): Easy-to-use settings management directly visible on video output.
  • WDR at Full Resolution: Balances bright and shaded areas in a single frame for enhanced visibility.
  • Privacy Mask & Motion Detection: Enhanced security features helping to protect sensitive areas and detect unusual activity.
  • Triple Encoder: Supports H.265/H.264/MJPEG encoding for versatile streaming options.
  • Network Protocols: Inludes SNMP, HTTPS, IPv6, and more for comprehensive connectivity.
  • All-in-One PoE+ Solution: Simplifies installation with Power over Ethernet and auxiliary power options.
  • MicroSDXC Card Slot: Provides onboard storage capacity up to 1TB for flexible data management.
  • Low-Profile Housing: Ultra-discreet design suitable for any environment.
  • Outdoor Rated IP66 & IK-10 Housing: Ensures durability against harsh weather and physical impacts.
  • NDAA Compliant: Meets national security standards for government and public sector installations.

Arecont Vision AV20576DN-28 Detailed Specifications

Camera ModelArecont Vision AV20576DN-28
Resolution20 Megapixels
Lens Type4 x 2.8mm Lenses
Low Light PerformanceNight View™ Technology
Gimbal Type3-Axis Gimbals with 360° Track
Encoding FormatsH.265/H.264/MJPEG
IP RatingIP66
Impact RatingIK-10
Power OptionsPoE+ and Auxiliary Power (12V-48VDC/24VAC)
StorageMicroSDXC up to 1TB
ComplianceNDAA Compliant
SKU  AV20576DN-28
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Arecont Vision
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    20 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12-48vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  Ø 7.7" (196mm) x 3.1" H (78.5mm)
Electronic Shutter    Auto/manual 0.1ms ~ 500ms
Image Device    1/2.8" CMOS Progressive Sensor
Minimum Scene Illumination  Color (Day Mode): 0.15 Lux, B/W (Night Mode): 0.15 Lux
Operating Humidity    0% to 90% (non-condensing)
Operating Temperature    -40°C (-40°F) to +50°C (122°F)
Power Consumption  14W max
Privacy Zone    Unlimited
Protocols  SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure
Weatherproof    IP66
Motion Detection Tracking    Real-time, 1024 detection zones
Flickerless    5Hz–255Hz adjustable
Back Light Compensation  Auto
Automatic White Balance    Auto/manual
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
