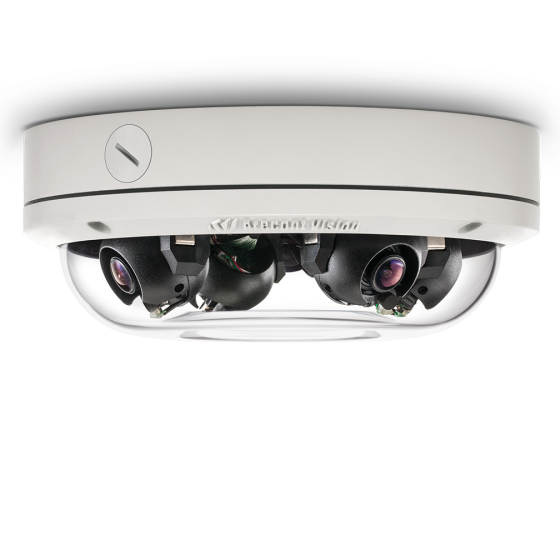

Arecont Vision AV20275DN-08 20 Megapixel Surface Mount Network IP Dome Camera
SKU
AV20275DN-08
Model No
AV20275DN-08
$1,593.30
Product Highlights
- 20MP Resolution
- 4 x 8mm Lenses
- 3-Axis Gimbal
- Remote Focus
- Surface Mount
Speak to an expert
The Arecont Vision AV20275DN-08 is a cutting-edge 20 Megapixel Surface Mount Network IP Dome Camera designed to meet evolving security needs. With its next-generation multi-sensor capabilities, this camera offers unparalleled flexibility in placement and configuration, making it ideal for a wide range of surveillance applications. Built to perform in various lighting conditions and engineered for both indoor and outdoor use, the AV20275DN-08 provides a future-proof solution that maximizes field-of-view while minimizing installation costs.
Arecont Vision AV20275DN-08 Camera Features
- 20MP Resolution: Captures high-definition imagery, ensuring detailed video evidence for surveillance.
- 4 x 8mm Lenses: Provides versatility in zoom levels for a customizable field of view, adapting to diverse monitoring needs.
- 3-Axis Gimbal: Enhances motion range for precise sensor positioning, allowing for comprehensive coverage.
- Remote Focus: Simplifies installation and setup by enabling adjustments from a distance without requiring physical access to the camera.
- SNAPstream™ Capability: Significantly reduces bandwidth usage without compromising image quality, optimizing network performance.
- True Day/Night: Features a mechanical IR cut filter for optimal image clarity and color accuracy in varying light conditions.
- Surface Mount: Designed for easy installation onto various surfaces, providing installation flexibility.
- Power Over Ethernet (PoE): Streamlines installation by delivering power and data through a single cable, reducing installation complexity.
- Indoor/Outdoor: Versatile design suitable for both indoor and outdoor environments, adapting to diverse installation locations.
- IP66 Weather Rated: Offers protection against dust and powerful water jets, ensuring reliability in harsh weather conditions.
- IK-10 Impact Resistant: Built to withstand vandalism and physical impact, making it highly durable for public areas.
Arecont Vision AV20275DN-08 Detailed Specifications
| Feature | Detail |
| Resolution | 20 Megapixels |
| Lens Type | 4 x 8mm Modular Lenses |
| Gimbal Type | 3-Axis |
| Focus Adjustment | Remote Focus |
| Bandwidth Reduction | SNAPstream™ Technology |
| Day/Night Operation | True Day/Night with Mechanical IR Cut Filter |
| Mounting Type | Surface Mount |
| Power Supply | Power Over Ethernet (PoE) |
| Environmental Suitability | Indoor and Outdoor |
| Weather Rating | IP66 |
| Impact Rating | IK-10 |
SKU  | AV20275DN-08 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Motion Detection Tracking, Privacy Masking, Weather Resistant |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 20 Megapixel |
| Lens Type | Fixed |
| Lens Size | 8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | 120dB |
| Dimensions (W x H) | 8" W (203mm) x 8" L (203mm) x 4" H (102mm) |
| Electronic Shutter | 1ms–500ms |
| Image Device | 4 x 5MP CMOS |
| Minimum Scene Illumination | Color (Day Mode):0.3 Lux, Color Binning (Day Mode): 0.15 Lux, B/W (Night Mode): 0.03 Lux, IR sensitive |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Power Consumption | 14 Watts Max (Aux) |
| Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS |
| Weatherproof | IP66 |
| Angle of View | 42° |
| Motion Detection Tracking | Real-time, 1024 detection zones |
| Back Light Compensation | Auto multi-matrix white balance |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
