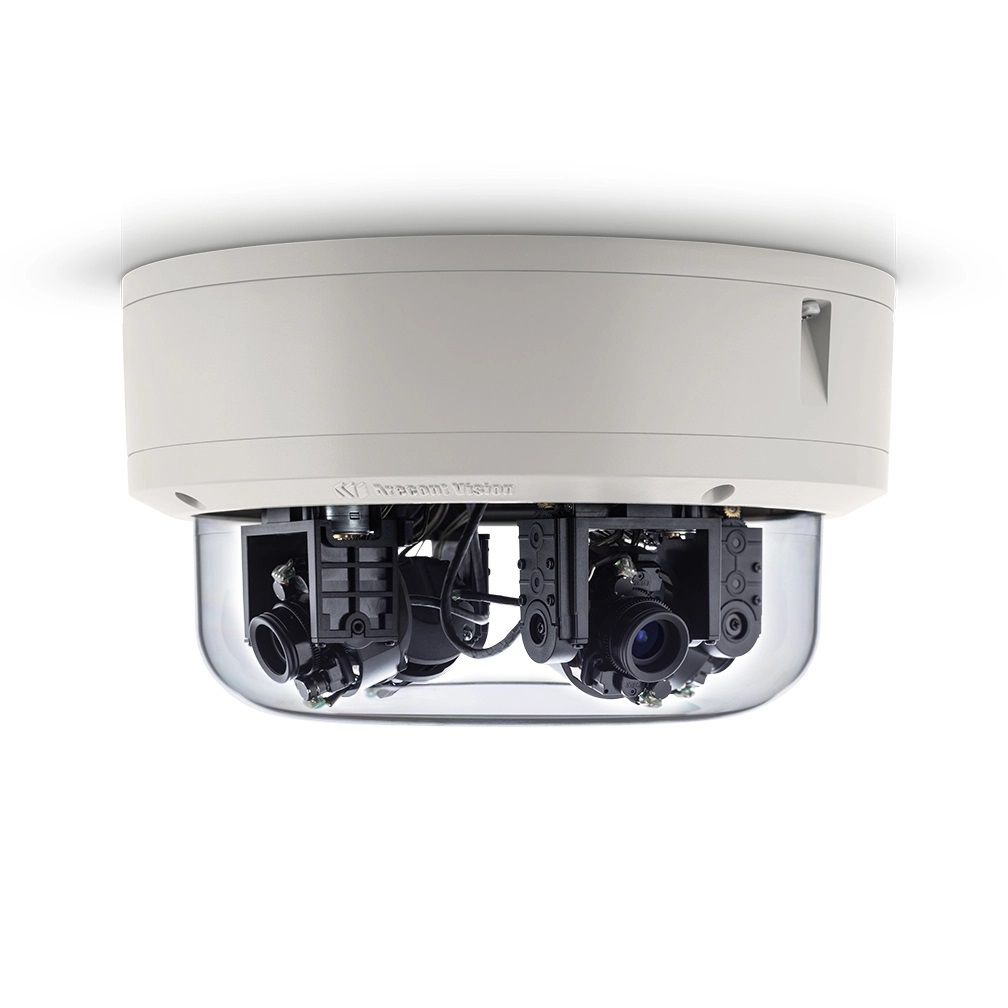

Arecont Vision AV12376RS 12 Megapixel Day/Night Outdoor Network IP Dome Camera, 4 x 2.8-6mm Lens
- 12MP Models
- True Day/Night Functionality with Mechanical IR Cut Filter
- Binning Mode for Strong Low Light Performance
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, IPv4, DHCP, and More
The AV12376RS from Arecont Vision is a 12 Megapixel Day/Night Outdoor Network IP Dome Camera, 4 x 2.8-6mm Lens. The SurroundVideo Omni G3 is an industry-game-changing first-of-its-kind omni-directional, remote-configurable, multi-sensor, multi-megapixel camera built to provide outstanding high resolution video coverage for a wide range of applications. The unmatched coverage and capabilities of the SurroundVideo Omni G3 provides organizations of all sizes the flexibility to deploy a surveillance camera system that truly matches their current and future requirements for complete situational awareness. SurroundVideo Omni G3 is available with a choice of 12-megapixel (MP) resolutions. The number of cameras required for a project can be dramatically reduced with a single SurroundVideo Omni G3, thanks to its four customizable remote sensor gimbals. Installation is fast and easy. Install the hinged mounting plate, connect the PoE (Power-over-Ethernet) IP cable, and then remotely configure the camera. Select a preset choice for 180°, 270°, or 360° views, or use the intuitive interface to remotely pan, tilt, zoom, and focus each sensor. Two custom presets created by the user can be saved to memory. The camera is integrated with the industry’s leading VMS/NVR platforms.
Features
- 12MP Models
- No Touch Setup: 4 Individual Camera Gimbals Each with a Varifocal Motorized Lens That Can be Remotely Setup in Any Position Around a 360° Track
- Preset Positions to Create a 360°, 270°, or 180° Field of View, or Save Custom Presets
- SNAPstream Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
- Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
- True Day/Night Functionality with Mechanical IR Cut Filter
- Enhanced WDR™ up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously on Select 12MP Models
- Binning Mode for Strong Low Light Performance
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, IPv4, DHCP, and More
- PoE and Auxiliary Power: 18–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
SKU  |
AV12376RS |
|---|---|
| Features |
Auto Gain Control, Back Light Compensation, Day/Night, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
Arecont Vision |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
Non Infrared |
| Resolution |
12 Megapixel |
| Lens Type |
Varifocal |
| Lens Size |
2.8-6mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, MPEG-4, JPEG |
| Durability |
Vandal Resistant, Weather Resistant |
| Voltage |
18-48vDC, 24vAC, PoE |
| Dimensions (W x H) |
Ø 8.8" (223.4mm) x 4.9" H (125.4mm) |
| Electronic Shutter |
Controls motion blur, 1ms–500ms |
| Image Device |
1/3.2" CMOS |
| Minimum Scene Illumination |
Color (Day Mode): 0.2 Lux, Color Binning (Day Mode): 0.1 Lux, B/W (Night Mode): 0.02 Lux, IR sensitive |
| Operating Humidity |
0% to 90% (non-condensing) |
| Operating Temperature |
-40°C (-40°F) to +50°C (122°F) |
| Power Consumption |
12W max |
| Privacy Zone |
Unlimited |
| Protocols |
HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Weatherproof |
IP66 |
| Angle of View |
H: 114° |
| Motion Detection Tracking |
Real-time, 1024 detection zones |
| Back Light Compensation |
Auto multi-matrix white balance |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Back Light Compensation |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
