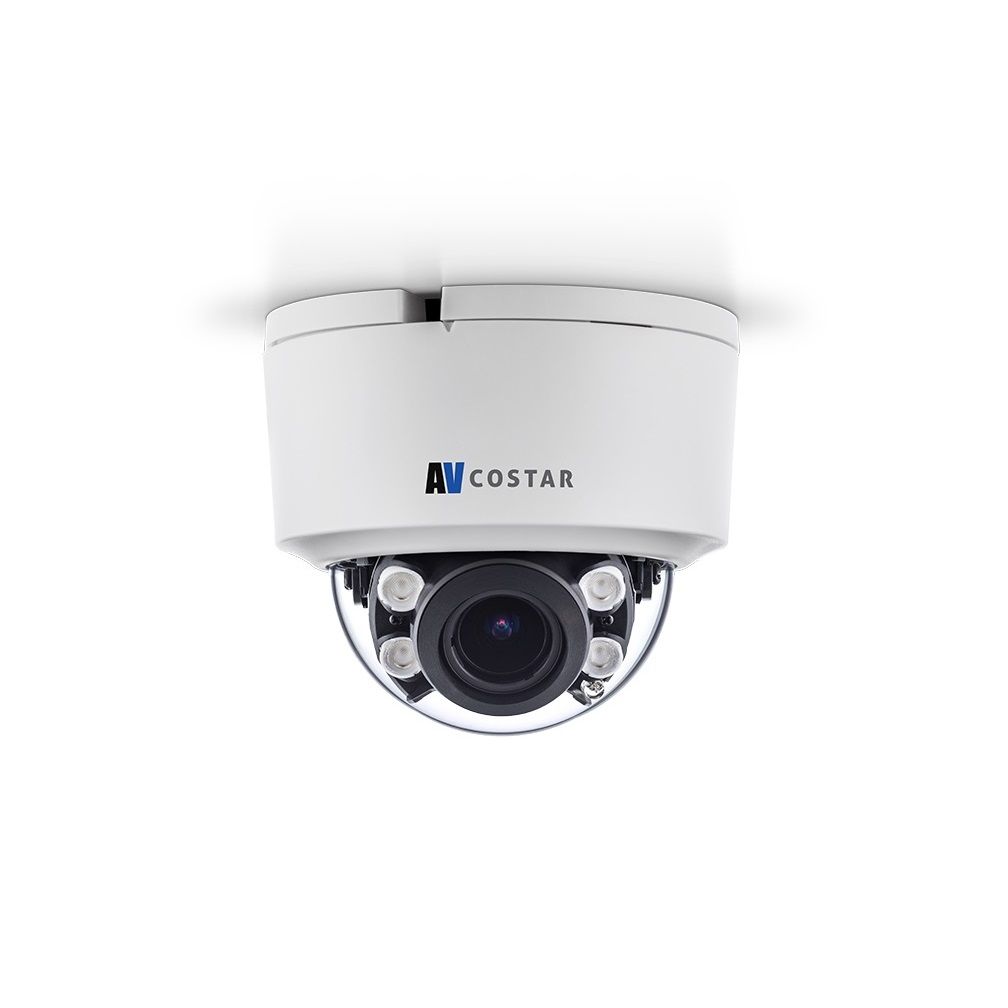

Arecont Vision AV02CID200WF 2 Megapixel Network IR Indoor Dome Camera with 2.7–13.5mm Lens
SKU
AV02CID200WF
Model No
AV02CID200WF
$277.19
Product Highlights
- 1080p (2.1MP) Resolution
- SNAP stream+™Capability to Reduce Bandwidth without Impacting Image Quality
- Night View™for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
Speak to an expert
The Arecont Vision AV02CID200WF 2 Megapixel Network IR Indoor Dome Camera is designed for optimal surveillance performance day and night. Equipped with a versatile 2.7–13.5mm lens and advanced features such as Enhanced WDR™ and Night View™, this camera ensures clear images in various lighting conditions. Additionally, its innovative SNAP stream+™ technology allows for high-quality video while significantly reducing bandwidth usage, making it an excellent choice for both security and efficiency.
Arecont Vision AV02CID200WF Camera Features
- 1080p (2.1MP) Resolution: High-definition imaging provides clear and detailed video for superior surveillance accuracy.
- SNAP stream+™ Capability: Reduces bandwidth while maintaining image quality, optimizing network performance and data storage.
- Night View™: Enhanced low-light performance for capturing clear color images in poorly lit environments.
- True Day/Night Functionality: Mechanical IR cut filter allows seamless transition between day and night modes for consistent image quality.
- Enhanced WDR up to 120dB: Offers excellent visual balance in scenes with both shaded and bright light conditions.
- Corridor View™: 90° image rotation provides better coverage for hallways and corridors, enhancing monitoring efficiency.
- On-Screen Display (OSD): User-friendly interface allows for easy configuration and real-time monitoring adjustments.
- Triple Encoder: Supports H.265, H.264, and MJPEG formats, providing versatile video compression options.
- Comprehensive Network Protocols: Includes SNMP, HTTPS, IPv6, DHCP, and 802.1x for secure and flexible network integration.
- Audio In / Out: Integrated audio support for enhanced surveillance capabilities.
- All-in-One PoE Solution: Powered over Ethernet with auxiliary power option (12V DC) simplifies installation and reduces wiring complexity.
- Smart IR Illumination: Variable illumination maintains even IR light up to 66ft (20m) for effective monitoring in dark conditions.
- 1TB Capacity MicroSDXC Card Slot: Onboard storage for recording video footage directly to the camera.
- NDAA Compliant: Meets stringent compliance standards for security and governance.
Arecont Vision AV02CID200WF Detailed Camera Specifications
| Camera Type | Network IR Indoor Dome |
| Resolution | 1080p (2.1MP) |
| Lens | 2.7–13.5mm Varifocal |
| WDR | Enhanced WDR up to 120dB |
| Night Vision | Night View™ Capability |
| Video Compression | H.265/H.264/MJPEG |
| Network Protocols | SNMP, HTTPS, IPv6, DHCP, 802.1x |
| Power Supply | PoE and Auxiliary (12V DC) |
| IR Range | Up to 66ft (20m) |
| Storage | 1TB MicroSDXC Card Slot |
| Compliance | NDAA Compliant |
SKU  | AV02CID200WF |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Arecont Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | Ø 4.52" (114.8mm) x 3.65" H (92.6mm) |
| Electronic Shutter | Auto/manual 0.1ms ~ 500ms |
| Image Device | 1080p (2.1MP) CMOS Progressive Sensor |
| IR LEDs | 4 |
| Minimum Scene Illumination | Color (Day Mode): 0.04 Lux, B/W (Night Mode): 0.005 Lux |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | -10°C (14°F) to +50°C (122°F) |
| Power Consumption | 8.5W max |
| Privacy Zone | Unlimited |
| Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Rotation Angle | Corridor View™ (90°, 180°, and 270° image rotation) + mirror |
| Motion Detection Tracking | Real-time, 1024 detection zones |
| Flickerless | 5Hz–255Hz adjustable |
| Back Light Compensation | Auto |
| Automatic White Balance | Auto/manual |
| IR Distance | 20m/66ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
