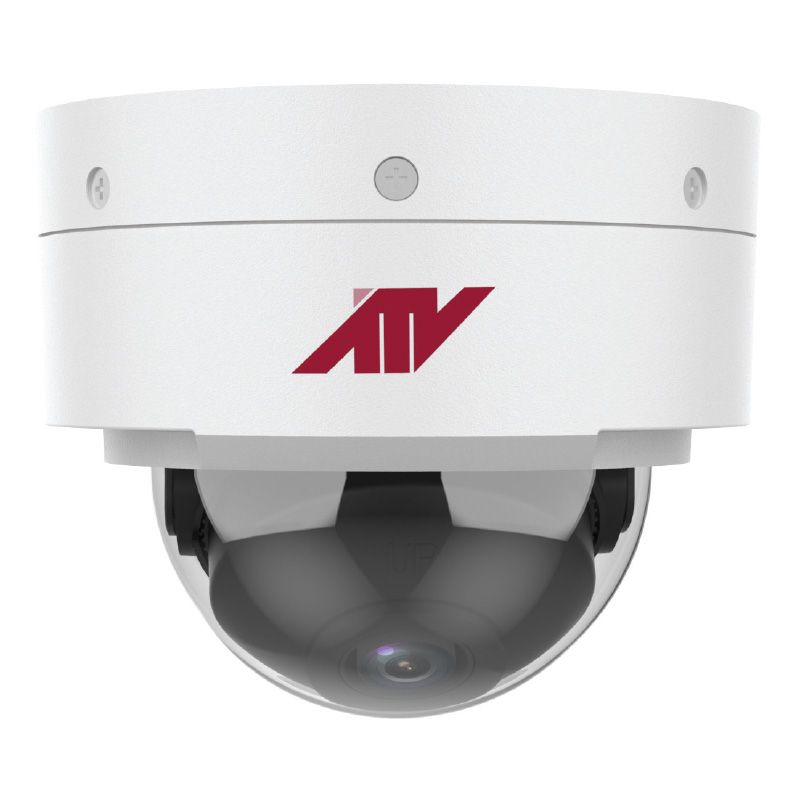

ATV ANVW228 2 Megapixel Network IP IR Vandal Dome Camera with 2.8mm Lens
SKU
ANVW228
Model No
ANVW228
$340.00
Product Highlights
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 2.8mm Fixed Lens
- Exceptional 2MP, 1920 x 1080 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included

Speak to an expert
The ATV ANVW228 2 Megapixel Network IP IR Vandal Dome Camera is an exceptional surveillance solution designed for top-notch security. With a robust 2.8mm lens and advanced IR capabilities, this camera delivers clear video in low-light conditions while adhering to national security guidelines. Its efficient video compression technology ensures minimal storage use, making it an ideal choice for both home and business security needs.
ATV ANVW228 Camera Features
- Compliance: Fully adheres to National Defense Authorization Act (NDAA) guidelines, ensuring reliable and approved technology.
- Lens Specification: 2.8mm fixed lens provides a wide field of view, capturing comprehensive footage of monitored areas.
- High-Resolution Imaging: Exceptional 2MP, 1920 x 1080 resolution enables sharp, detailed video images, enhancing surveillance quality.
- IR Performance: Powerful IR LED lights allow for 0 Lux operation up to 82ft, ensuring visibility in complete darkness.
- Video Compression: Super-efficient H.265 video compression drastically reduces bandwidth and storage needs while maintaining high-quality video.
- Remote Management: ATVision IP remote management client software for Windows and Mac, along with mobile applications for Apple and Android, make access and control convenient.
ATV ANVW228 Detailed Specifications
| Model | ATV ANVW228 |
| Resolution | 2MP (1920 x 1080) |
| Lens | 2.8mm Fixed |
| IR Range | Up to 82ft (0 Lux operation) |
| Video Compression | H.265 |
| Compatibility | Windows, Mac, iOS, Android |
| SKU | ANVW228 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ATV |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 4.3(Ø) x 3.6in (109.4(Ø) x 91mm) |
| Electronic Shutter | Auto (1/100,000~1sec), Manua |
| Image Device | Type : 1/2.8” CMOS Sensor |
| IR LEDs | 1 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color : 0.03Lux / BW : [email protected], 50IRE |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ +60°C) |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DVRNS, NTP, FTP, HTTP, HTTPS, SMTP, SSL, Zeroconf |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 2DNR, 3DNR |
| Angle of View | 106° (H) |
| IR Distance | 24m/78ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
