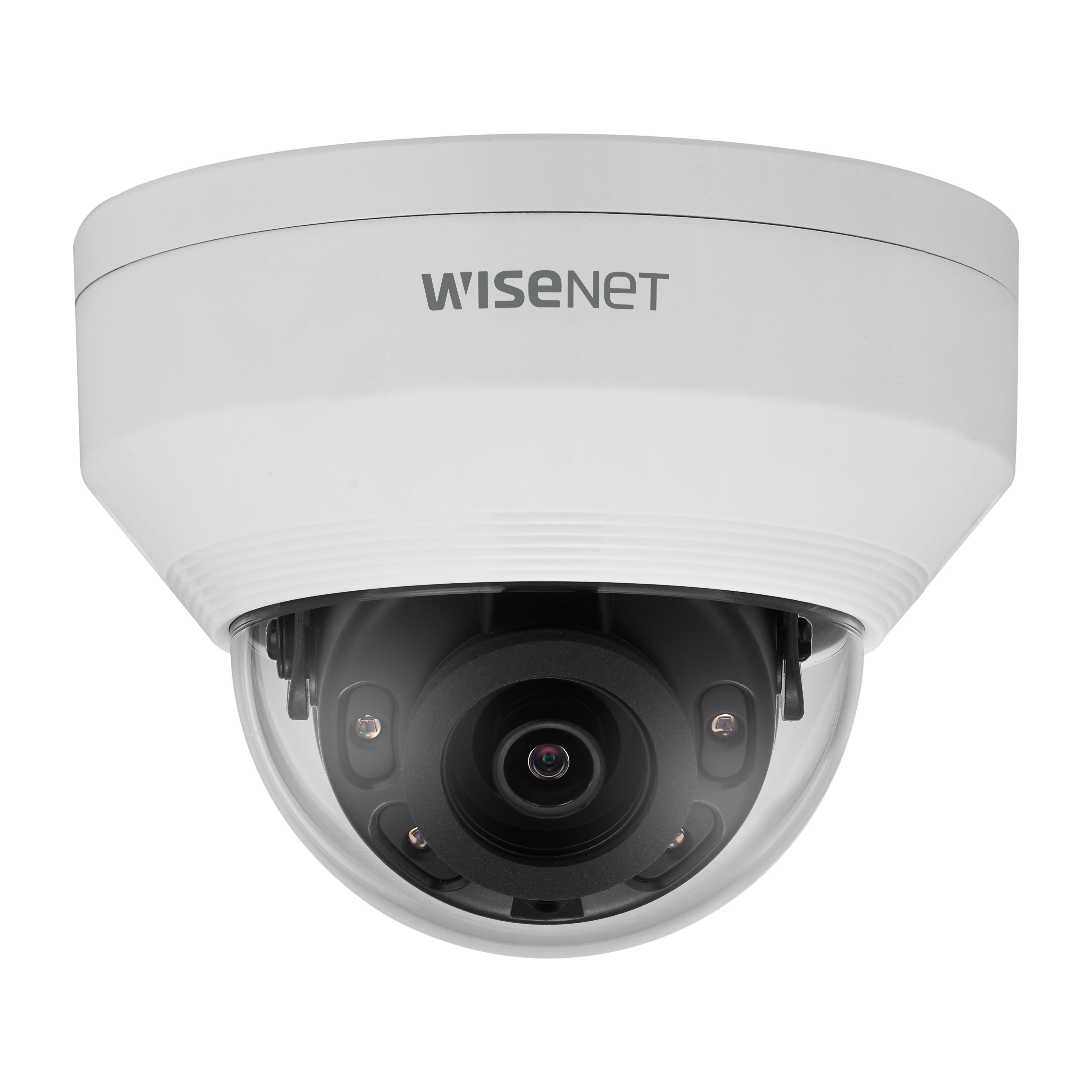

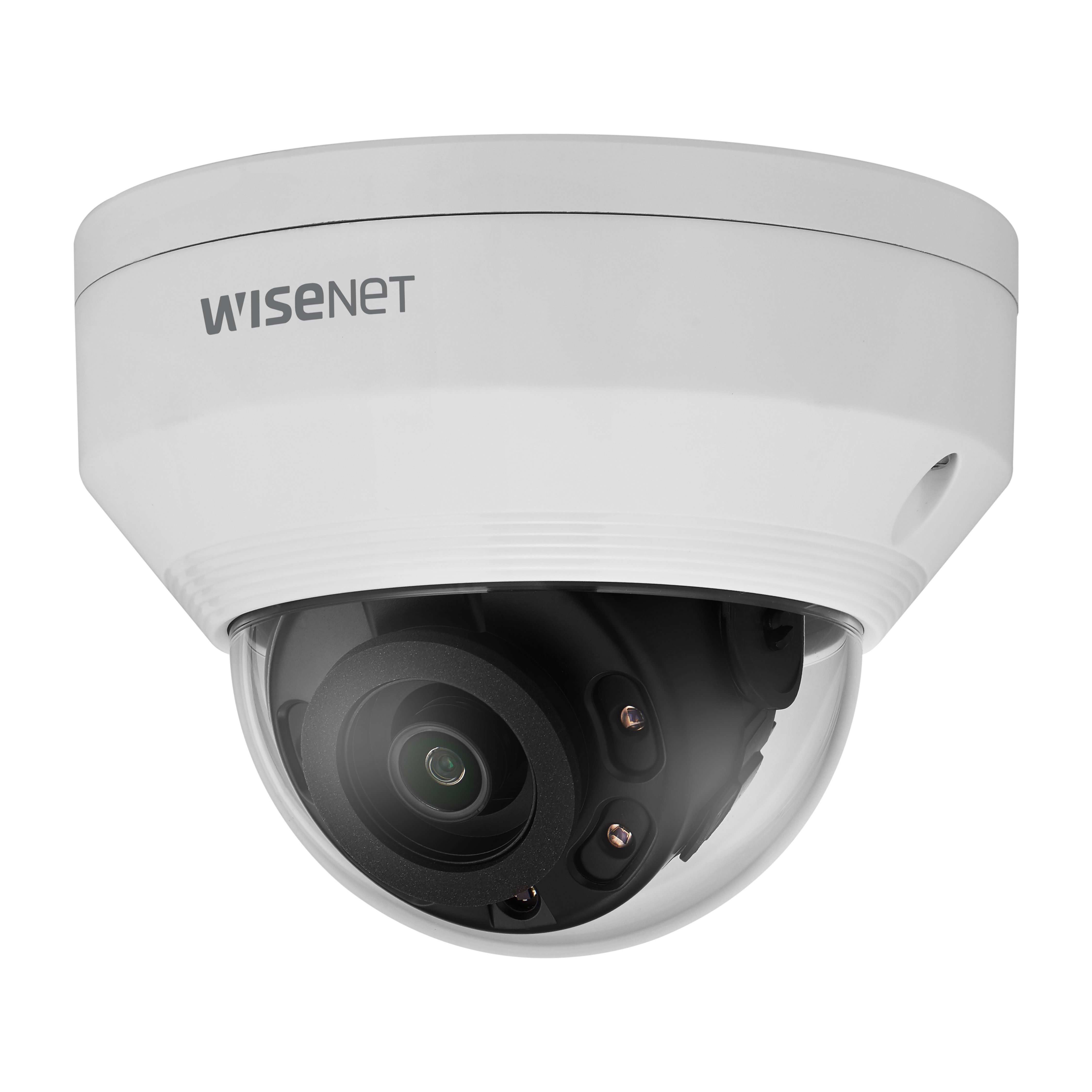

Hanwha Vision ANV-L7012R 4 Megapixel Outdoor IR Vandal Dome Camera with 3mm Lens

Name: Hanwha Vision ANV-L7012R 4 Megapixel Outdoor IR Vandal Dome Camera with 3mm Lens
Brand: Hanwha Vision
SKU: ANV-L7012R
Price: 139.99 USD
Availability: InStock

SKU

ANV-L7012R

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision ANV-L7012R 4 Megapixel Outdoor IR Vandal Dome Camera with 3mm Lens ANV-L7012R by Hanwha Vision

Model No

ANV-L7012R

was $176.09 Special Price $139.99

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

4MP resolution, Up to 30fps(H.265/H.264)
Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
3mm lens with 107.5° HFoV
IR viewable length: 20m
Day & Night (ICR), WDR (120dB)

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

4 Megapixel Outdoor IR Vandal Dome Camera with 3mm Lens

The ANV-L7012R from Hanwha Vision is a 4 megapixel outdoor IR vandal dome camera with a 3mm lens designed for high-performance surveillance in various environments. With superior image quality, advanced detection features, and robust weatherproofing, this camera is ideal for ensuring security in outdoor settings.

Camera Functions

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Flickerless

Mirror

Motion Detection

ONVIF

Privacy Masking

Vandal Resistant

Weather Resistant

WDR

Camera Features


4MP resolution, Up to 30fps (H.265/H.264)	H.265, H.264, MJPEG, Multiple streaming supported
Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On)	Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
3mm lens with 107.5° HFoV	Hallway view (90°/270°), LDC support, WiseStream II
IR viewable length: 20m	Micro SD/SDHC/SDXC memory slot
Day & Night (ICR), WDR (120dB)	IP66, IK10

Wisenet A series | Overview

The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.

Specifications

SKU	ANV-L7012R
Features	Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	4 Megapixel
Lens Type	Fixed
Lens Size	3mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG, H.265
Durability	Vandal Resistant, Weather Resistant
Voltage	PoE
Automatic Gain Control (AGC)	Low / Middle / High
Dimensions (W x H)	Ø120.3x91.7mm (Ø4.74x3.61")
Electronic Shutter	Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Image Device	1/3" CMOS
Minimum Scene Illumination	Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Operating Humidity	Less than 95% RH
Operating Temperature	-30°C ~ +55°C (-22°F~+131°F)
Power Consumption	Max 7.5W, typical 5.7W
Privacy Zone	6ea, rectangular zones
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Weatherproof	IP66
Digital Noise Reduction	SSNR
Angle of View	H: 98.3° / V: 54.2° / D: 114.6°
Motion Detection Tracking	4ea, polygonal zones
Back Light Compensation	BLC, WDR, SSDR
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor
IR Distance	20m/65.62ft
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
