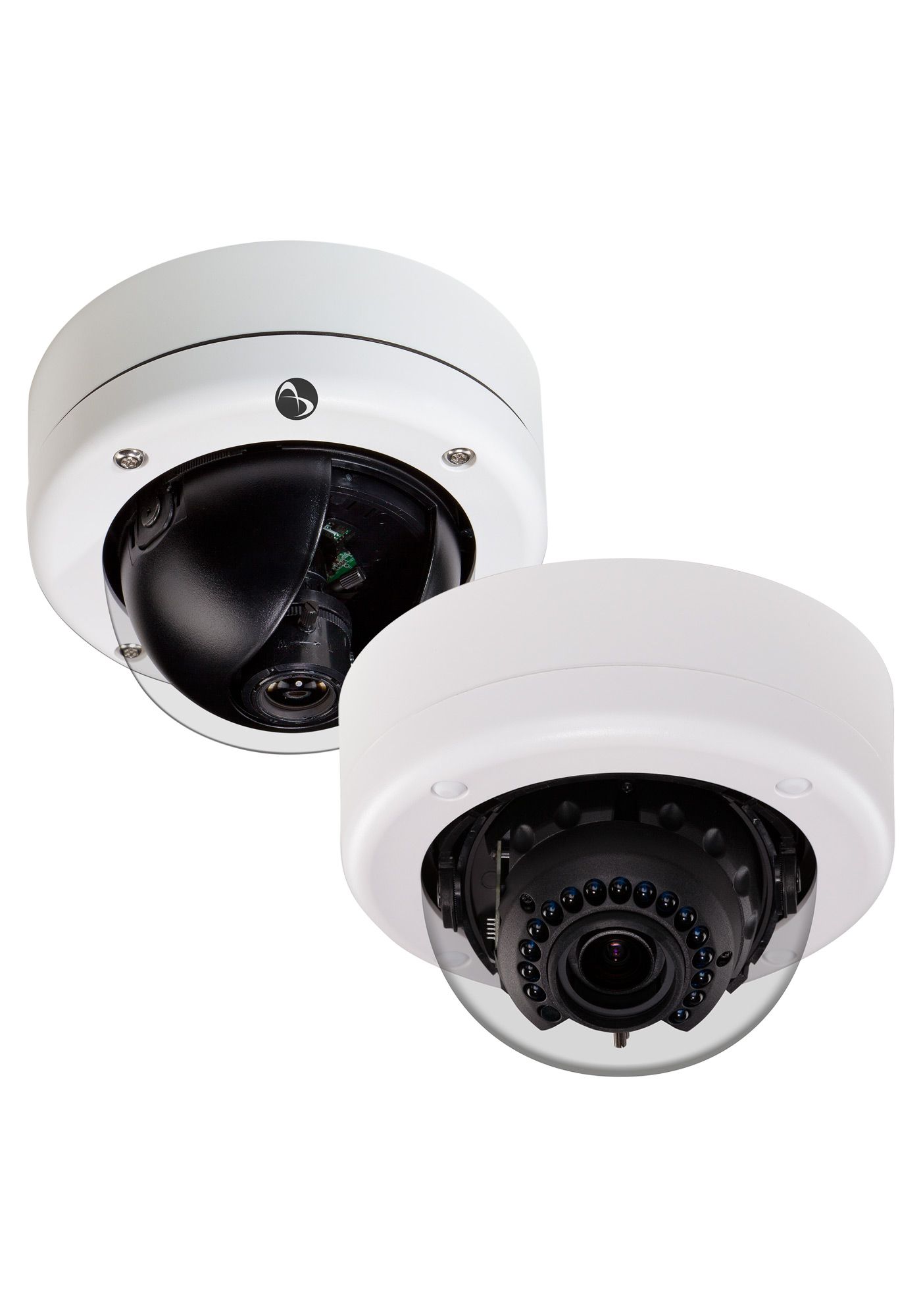

American Dynamics ADCA5DWIT4P 700TVL, Indoor Dome, 2.8-10mm VF Lens, PAL
SKU
ADCA5DWIT4P
Model No
ADCA5DWIT4P
$358.00
Product Highlights
- 1/3" Sony® Effio CCD image sensor for true color reproduction
- 700TVL resolution
- 2.8-10mm varifocal auto iris lens
- True Day/Night (TDN) mode
- 3-axis gimbal for easy positioning
Speak to an expert
Discover the American Dynamics ADCA5DWIT4P 700TVL Indoor Dome Camera, designed for exceptional performance and versatility in any indoor setting. With its True Day/Night mode and a stunning 700 TVL resolution, this camera excels in color reproduction and clarity under various lighting conditions. Features such as a varifocal auto iris lens and a quick-install adapter ensure easy setup and optimal positioning, making it perfect for efficient surveillance in both residential and commercial environments.
American Dynamics ADCA5DWIT4P Camera Features
- 1/3" Sony® Effio CCD image sensor: Delivers true color reproduction for natural and vibrant visuals.
- 700TVL resolution: Ensures clear images with detailed visuals for accurate surveillance.
- 2.8-10mm varifocal auto iris lens: Provides flexible focal lengths, allowing customization for various viewing distances.
- True Day/Night (TDN) mode: Optimizes image quality both day and night, adapting to low-light conditions seamlessly.
- 3-axis gimbal: Offers easy camera positioning for enhanced coverage and flexibility in installation.
- Quick-install adapter: Streamlines installation process, making setup faster and more convenient.
- Service jack for second video output: Facilitates camera setup and adjustment with ease.
- On-screen display: Simplifies camera configuration and adjustments for user-friendly operation.
- Eight programmable privacy zones: Provides customizable privacy settings for sensitive areas.
- 12VDC/24VAC compatible: Versatile power options for various installation needs.
Detailed Camera Specifications for American Dynamics ADCA5DWIT4P
| Image Sensor | 1/3" Sony® Effio CCD |
| Resolution | 700TVL |
| Lens | 2.8-10mm varifocal auto iris |
| True Day/Night | Yes |
| Gimbal | 3-axis |
| Installation Adapter | Quick-install |
| Privacy Zones | Eight programmable |
| Power Supply | 12VDC/24VAC |
| Water Resistance | IP66 rated |
| IR Illuminators | Yes, for low-light conditions |
SKU  | ADCA5DWIT4P |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking |
| Manufacturer | American Dynamics |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Image Device | 1/3? Sony® CCD image sensor |
| Minimum Scene Illumination | Day mode: 0.3 lux , Night mode: 0.03 lux @ F1.2 |
| Operating Humidity | 90% (non-condensing) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions (W x H) | 120.2 x 98.7 mm (4.7 x 3.9 in) |
| Power Consumption | 2.8W; 5.2W (max.) when True Day/Night on |
| Privacy Zone | Eight programmable |
| S/N Ratio | >50 dB (100 IRE, F1.2) |
| Signal System | PAL |
| Video Output | Composite |
| Synchronization | Internal |
| Digital Noise Reduction | 2D, 3D motion adaptive (0-255) |
| Mirror | Horizontal and vertical |
| Backlight Compensation | Full range |
| Automatic White Balance | Auto, Manual, Push, Push Lock, User 1, 2, Anti CR, 2700K-9700K |
| Auto Gain Control | Auto/Manual |
| Motion Detection | 4 area (1 alarm out) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
