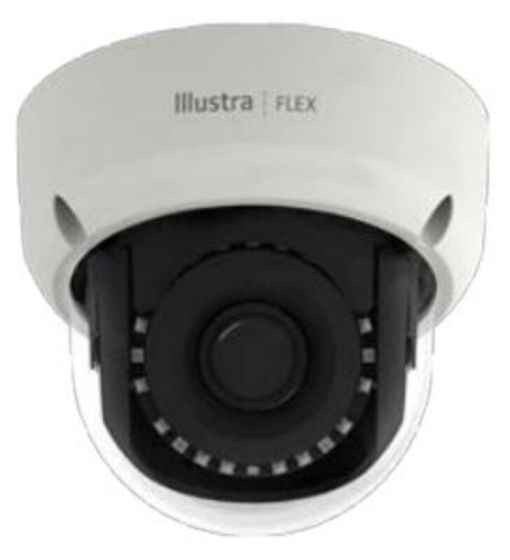

American Dynamics IFS08-D13-OIA4 8 Megapixel Network Outdoor Dome Camera with 3.6-11mm Lens
SKU
AD-IFS08-D13-OIA4
Model No
IFS08-D13-OIA4
$693.00
Product Highlights
- Provides true HD quality images with video analytics along with improved WDR
- Built in AI delivers accurate object classification, powerful situational awareness and security automation
- Increased IR Distance
- VideoEdge® TrickleStor technology for edge-based failover redundancy
- Easy to install with user friendly accessories and Wi-Fi configuration
Speak to an expert
The American Dynamics IFS08-D13-OIA4 8 Megapixel Network Outdoor Dome Camera is designed for high-quality surveillance with versatile video capabilities. This state-of-the-art camera features a 3.6-11mm lens, built-in long-range IR illuminators for exceptional low light performance, and advanced AI-driven analytics for improved situational awareness. Ideal for various applications, the Illustra Flex Mini-Dome combines performance with ease of installation to ensure your security needs are met efficiently.
American Dynamics IFS08-D13-OIA4 Camera Features
- High Definition Imaging: Provides true HD quality images with advanced video analytics, improving visibility and detail.
- AI-Powered Object Classification: Built-in AI delivers accurate object recognition, enhancing situational awareness and enabling security automation.
- Long Range IR Illuminators: Increased IR distance of up to 131 ft (40 m) ensures clear night vision in various environments.
- Edge-Based Failover Redundancy: VideoEdge® TrickleStor technology protects against data loss during network disruptions by continuing recording on the camera.
- User-Friendly Installation: Designed with easy installation features and Wi-Fi configuration for quick setup.
- NDAA and TAA Compliance: Meets compliance standards ensuring peace of mind regarding security and procurement regulations.
Detailed Specifications for American Dynamics IFS08-D13-OIA4
| Camera Type | Network Outdoor Dome |
| Megapixels | 8 Megapixels |
| Lens Range | 3.6mm to 11mm |
| IR Distance | 131 ft (40 m) |
| AI Object Classification | Person, car, bus, motorcycle |
| Video Analytics | Advanced WDR and AI capabilities |
| Compliance | NDAA and TAA |
| Security Standards | Johnson Controls Cyber Solutions Product Security Program |
SKU  | AD-IFS08-D13-OIA4 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.6-11mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC, PoE |
| Dimensions (W x H) | Ø123mm x 107mm (4.85 in x 4.21 in) |
| Electronic Shutter | ≥ 1/10,000 to 1/4 s |
| Image Device | 1/1.8” Sony IMX334 CMOS |
| Minimum Scene Illumination | Color, 1/4s, 30 IRE, AGC: 0.2 Lux, B/W, 1/4s, 30 IRE, AGC: 0.11 Lux, W/IR: 0.0 Lux |
| Operating Humidity | Up to 90% Non-Condensing |
| Operating Temperature | Indoor: -10°C to +60°C (14°F to 140°F); Outdoor: -50°C to +60°C (-58°F to 140°F) |
| Privacy Zone | 8 |
| Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| Weatherproof | IP66/IP67 |
| Angle of View | 95°/53° |
| Motion Detection Tracking | 3 Zones |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
