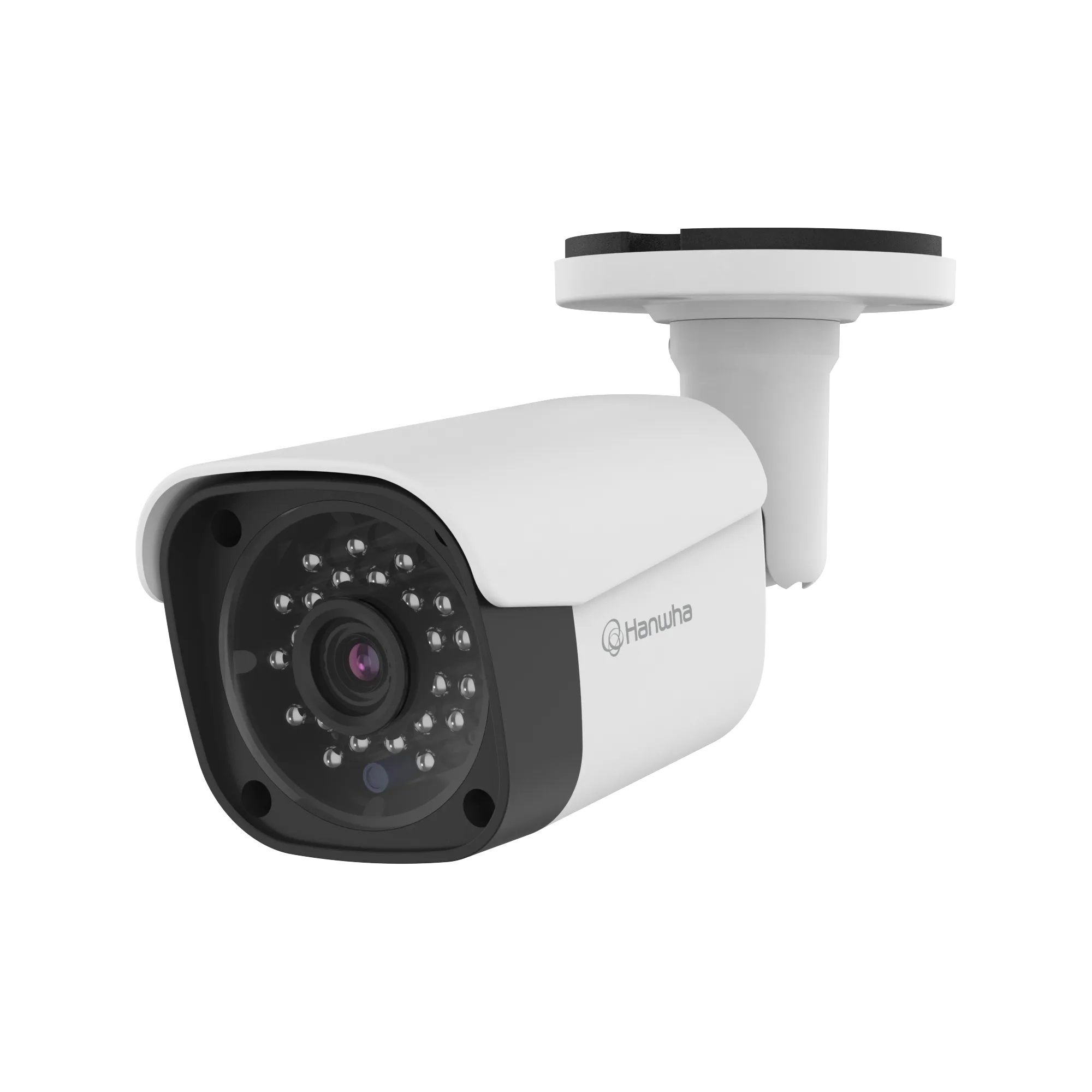

Hanwha Vision ACO-8020R 5 Megapixel HD-AHD/CVI/TVI Outdoor Bullet Camera with 3.6mm Lens

Name: Hanwha Vision ACO-8020R 5 Megapixel HD-AHD/CVI/TVI Outdoor Bullet Camera with 3.6mm Lens
Brand: Hanwha Vision
SKU: ACO-8020R
Price: 89.95 USD
Availability: InStock

SKU

ACO-8020R

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision ACO-8020R 5 Megapixel HD-AHD/CVI/TVI Outdoor Bullet Camera with 3.6mm Lens ACO-8020R by Hanwha Vision

Model No

ACO-8020R

$89.95

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

5MP resolution @ 30FPS, 4MP @ CVI
[email protected](Color), 0Lux(B/W : IR LED on)
3.6mm fixed focal lens FoV H: 94° / V: 54°
Day & Night (ICR), DWDR
IR distance 20m(65.6 ft)

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

5 Megapixel HD-AHD/CVI/TVI Outdoor Bullet Camera with 3.6mm Lens

Introducing the Hanwha Vision ACO-8020R, a state-of-the-art 5 Megapixel HD bullet camera designed for outdoor surveillance. This versatile camera supports multiple formats including AHD, TVI, CVI, and CVBS, ensuring compatibility with a wide range of security systems. With a powerful 3.6mm lens and advanced features like day/night functionality, DWDR, and robust IR capabilities, it delivers exceptional image quality and performance in various lighting conditions.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Mirror

Vandal Resistant

Weather Resistant

WDR

Camera Features


5MP resolution @ 30FPS, 4MP @ CVI	IP67, IK10
[email protected] (Color), 0Lux (B/W: IR LED on)	12v DC power
3.6mm fixed focal lens FoV H: 94° / V: 54°	Transmission distance Max.500m
Day & Night (ICR), DWDR	Easy installation (Plug & play), Coaxial control
IR distance 20m (65.6 ft)	Multi-protocol compatible with AHD, TVI, CVI, CVBS

Wisenet A series | Overview

The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.

Specifications

SKU	ACO-8020R
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Analog, HD-AHD, HD-CVI, HD-TVI
Resolution	5 Megapixel
Sensor Option	1/2.5" CMOS
Lens Type	Fixed
Lens Size	3.6mm
Infrared Distance	61~100 Feet
Durability	Vandal Resistant, Weather Resistant
Mount Type	Ceiling, Wall
Voltage	12vDC
Electronic Shutter	AUTO(1/30~1/50,000)
Image Device	1/2.5" CMOS
IR Distance	20m(65.62ft)
Minimum Scene Illumination	Color : 0.4Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Operating Humidity	0~90% RH
Operating Temperature	-30°C~+55°C(-22°F~+131°F)
Dimensions (W x H)	70(W)x69(H)x186(D)mm(2.76"x2.72"x7.32")
Power Consumption	Max 5.4W, Typical 4.3W
Weatherproof	IP67
Digital Noise Reduction	2D + 3DNR
Angle of View	H: 83.9° / V: 63.4° / D :104°
Automatic White Balance	ATW / AWC
Auto Gain Control	LOW / MIDDLE / HIGH
Audio	Yes
Back Light Compensation	Yes
Automatic White Balance	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Mirror	Yes
Wide Dynamic Range	Yes
Auto Gain Control	Yes
