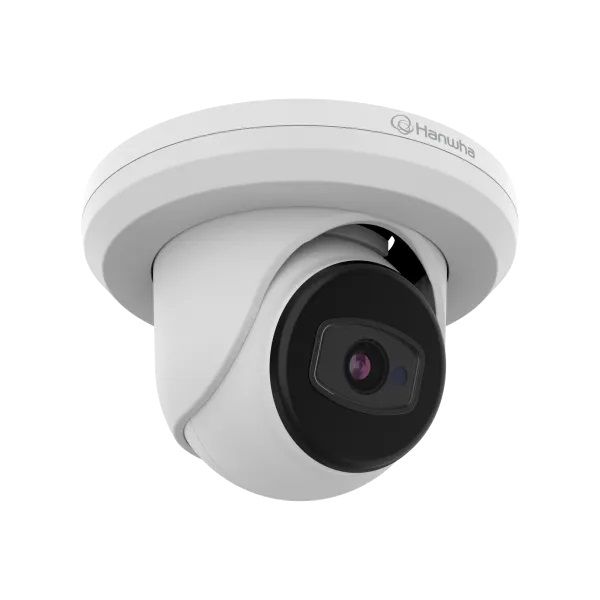

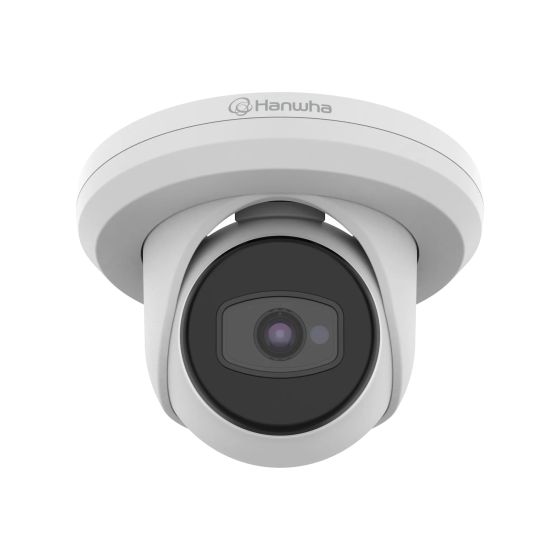

Hanwha Vision ACE-8020R 5 Megapixel HD-AHD/CVI/TVI Outdoor Dome Camera with 3.6mm Lens
SKU
ACE-8020R
Model No
ACE-8020R
$78.00
Product Highlights
- 5MP resolution @ 30FPS, 4MP @ CVI
- [email protected](Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 94° / V: 54°
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
Speak to an expert
5 Megapixel HD-AHD/CVI/TVI Outdoor Dome Camera with 3.6mm Lens
- Introducing the Hanwha Vision ACE-8020R, a state-of-the-art 5 Megapixel HD outdoor dome camera designed for robust surveillance in various environments. With its versatile compatibility across AHD, TVI, CVI, and CVBS formats, this camera delivers exceptional video quality at 30 frames per second. Equipped with a 3.6mm lens, it offers a wide field of view, enhanced night vision capabilities, and durable construction, making it an ideal choice for both residential and commercial security needs.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 5MP resolution @ 30FPS, 4MP @ CVI | IP67, IK10 |
| [email protected] (Color), 0Lux (B/W: IR LED on) | 12v DC power |
| 3.6mm fixed focal lens FoV H: 94° / V: 54° | Transmission distance Max.500m |
| Day & Night (ICR), DWDR | Easy installation (Plug & play), Coaxial control |
| IR distance 20m (65.6 ft) | Multi-protocol compatible with AHD, TVI, CVI, CVBS |
Wisenet A series | Overview
The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
Additional Hanwha Vision Products
SKU  | ACE-8020R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 1/2.5" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 0~60 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | AUTO(1/30~1/50,000) |
| Image Device | 1/2.5" CMOS |
| IR Distance | 0.8m(2.62ft) |
| Minimum Scene Illumination | Color : 0.4Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on) |
| Operating Humidity | 0~90% RH |
| Operating Temperature | -30°C~+55°C(-22°F~+131°F) |
| Dimensions (W x H) | ø120x82mm(ø4.72"x3.23") |
| Power Consumption | Max 5.4W, Typical 4.3W |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D + 3DNR |
| Angle of View | H:83.9° / V:63.4° / D:104° |
| Automatic White Balance | ATW / AWC |
| Auto Gain Control | LOW / MIDDLE / HIGH |
| Audio | Yes |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
