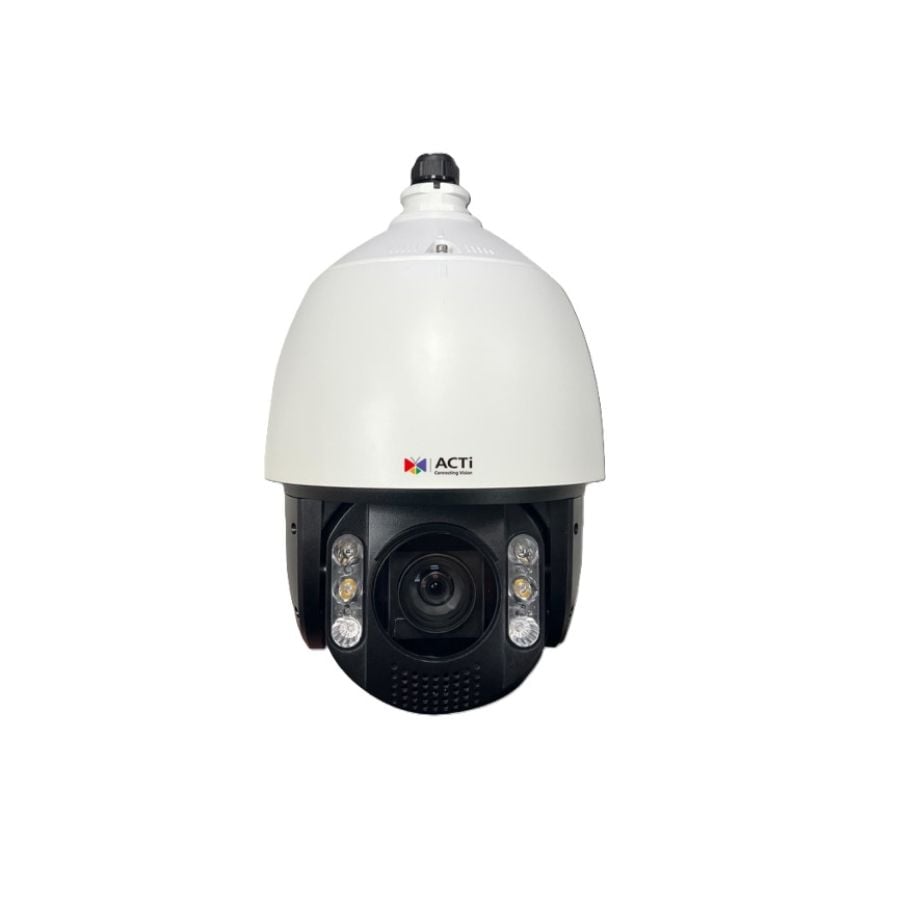

ACTi A966 2 Megapixel Network IP Outdoor IR Deep Learning AI PTZ Camera with 33X Lens
SKU
A966
Model No
A966
$5,042.00
Product Highlights
- 2 Megapixel, 33x, PTZ
- Deep Learning AI, ColorGuard
- IR LED 250m, Extreme WDR (150 dB)
- White LED 100m, Smart Dual Light, Color Min. Illumination 0.002 lux
- Frame Rate 60fps
Speak to an expert
The ACTi A966 2 Megapixel Network IP Outdoor IR Deep Learning AI PTZ Camera is designed for high-performance surveillance with advanced features that ensure exceptional image quality and enhanced security. Equipped with a powerful 33x lens, this camera excels in capturing detailed footage, even in low-light conditions, making it perfect for outdoor monitoring.
ACTi A966 Camera Features
- 2 Megapixel, 33x, PTZ: Offers high-resolution video and the ability to zoom in on details without losing clarity.
- Deep Learning AI, ColorGuard: Provides intelligent analysis for detecting objects and enhanced color preservation for night-time surveillance.
- IR LED 250m, Extreme WDR (150 dB): Allows for clear visibility in complete darkness up to 250 meters and manages varying lighting conditions effectively.
- White LED 100m, Smart Dual Light: Ensures clear color footage even in low-light situations, with a minimum illumination of just 0.002 lux.
- Frame Rate 60fps: Delivers smooth video playback, making it ideal for capturing fast-moving subjects.
Detailed Specifications for ACTi A966
| Camera Type | IP PTZ Camera |
| Resolution | 2 Megapixels |
| Lens | 33x Optical Zoom |
| AI Features | Deep Learning AI, ColorGuard |
| Infrared Range | Up to 250m |
| White LED Range | Up to 100m |
| Minimum Illumination | 0.002 lux |
| Extreme WDR | 150 dB |
| Frame Rate | 60fps |
SKU  | A966 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 33X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 36vDC, PoE |
| Dimensions (W x H) | (Ø x H): Outdoor: 220mm x 360.2mm (8.7" x 14.2") |
| Electronic Shutter | 1-1/30000 second (manual mode); 1-1/30000 second (auto mode) |
| Image Device | 1/2.7 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| Minimum Scene Illumination | Color: 0.002 lux at F1.5 (AGC on); B/W: 1 lux at F1.5 (AGC on); 0 lux (IR LED on) |
| Operating Humidity | ≤90% RH, non-condensing |
| Operating Temperature | -30°C ~ 65°C (-22°F ~ 149°F) |
| Power Consumption | 42 W (PoE, heater and IR on) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SSL/TLS, SNMP, IEEE 802.1X |
| S/N Ratio | 75 dB |
| Weatherproof | IP66, IK10 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle 60.2° - 2.3° Vertical Viewing Angle 35.2° - 1.3° |
| IR Distance | 250m/820ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
