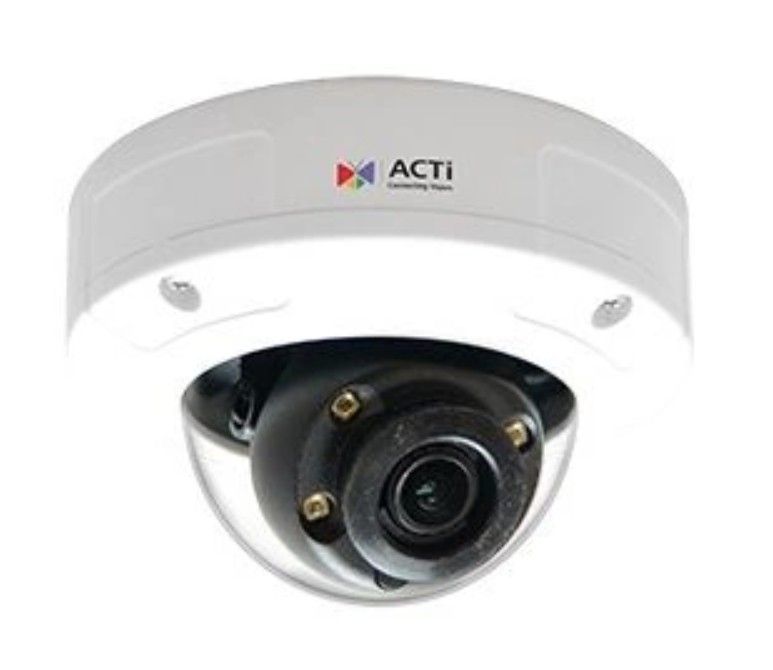

ACTi A94 5 Megapixel Outdoor IR Network Mini Dome Camera, 2.8mm Lens
Model No
A94
$402.30
Product Highlights
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.85
- Advanced WDR
- H.265 Compression
Speak to an expert
The A94 from ACTi is a robust 5 megapixel outdoor IR network mini dome camera equipped with a 2.8mm lens, ideal for providing crystal-clear surveillance in various environments. With its advanced features such as exceptional low light sensitivity and H.265 compression, this camera ensures high performance and efficiency.
ACTi A94 Camera Features
- 5 Megapixel: Delivers high-resolution images for detailed monitoring, ensuring that every critical detail is captured.
- Day & Night with Superior Low Light Sensitivity: Offers reliable performance in low light conditions thanks to its adaptive IR LED, guaranteeing all-day protection.
- Fixed Lens with f2.8mm/F1.85: Provides a wide field of view, allowing for comprehensive coverage of monitored areas.
- Advanced WDR: Enhances image clarity in challenging lighting situations, reducing glare and improving visual quality.
- H.265 Compression: Optimizes video storage and bandwidth efficiency while maintaining high-quality footage.
- Wide Angle: Captures a broader scene, minimizing blind spots for improved security.
- Event Trigger, Response and Notification: Enables automated surveillance responses for enhanced security management.
Detailed Camera Specifications - ACTi A94
| Camera Type | Outdoor IR Network Mini Dome |
| Megapixels | 5 MP |
| Lens | Fixed 2.8mm, F1.85 |
| Low Light Performance | Adaptive IR LED |
| Wide Dynamic Range | Yes |
| Video Compression | H.265 |
| Field of View | Wide Angle |
| Event Management | Trigger, response and notification |
SKU  | A94 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 99mm x 64.7mm (3.9" x 2.5") |
| Electronic Shutter | 1/5-1/64000 second (manual mode)? 1/5-1/64000 second (auto mode) |
| Image Device | 1/2.9" Progressive Scan CMOS |
| Image Pixels-Effective | 3096(H) X 2202(V) (6.82 MP) |
| IR LEDs | 4 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.4 lux? B/W: 0.05 lux (IR LED on) |
| Operating Humidity | 20% - 80% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | 7 W (PoE), 10 W (DC) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| S/N Ratio | 56 dB |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle: 80.04°, Vertical Viewing Angle: 64.59° |
| Motion Detection Tracking | 3 regions |
| IR Distance | 15m/49ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
